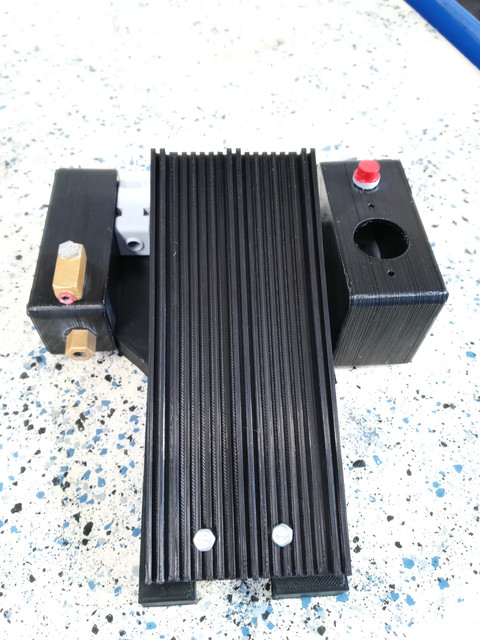

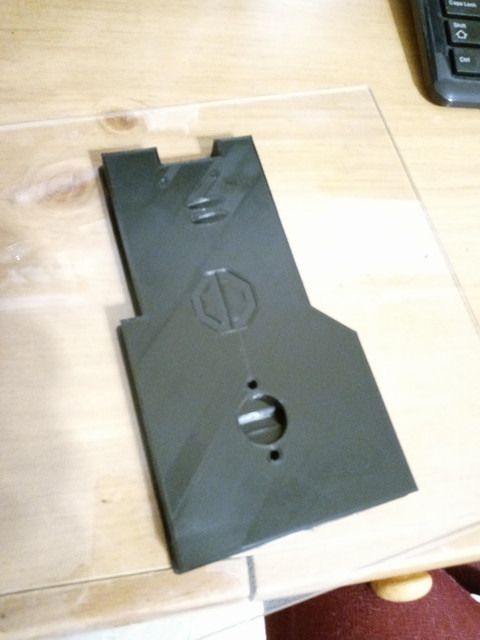

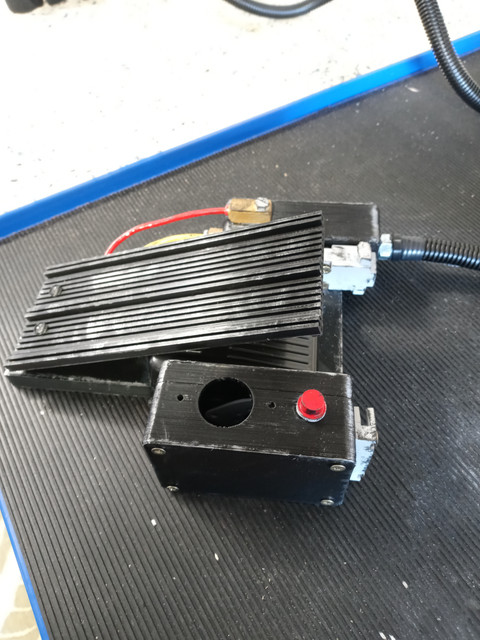

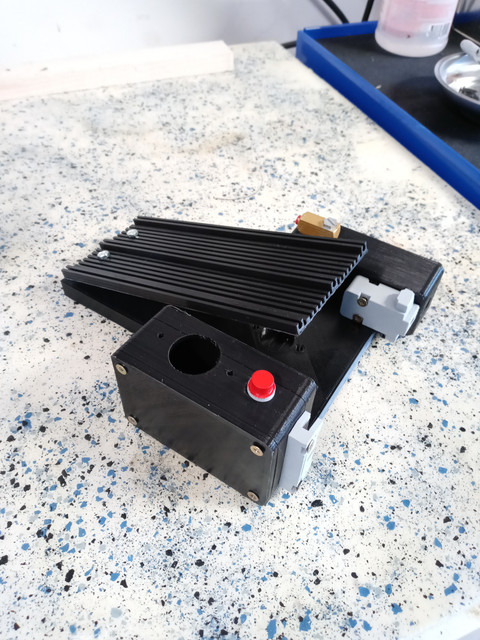

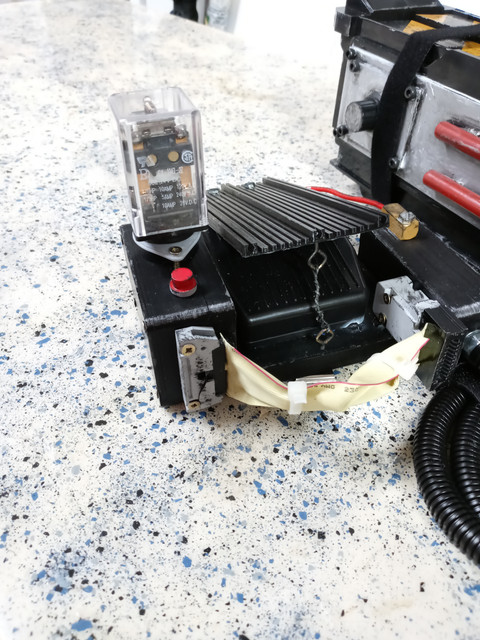

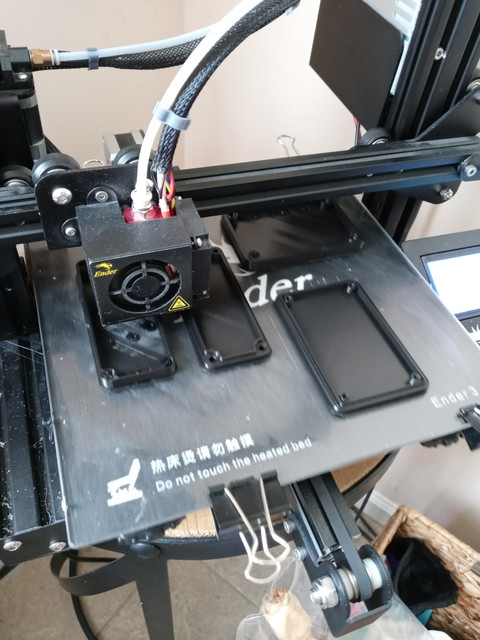

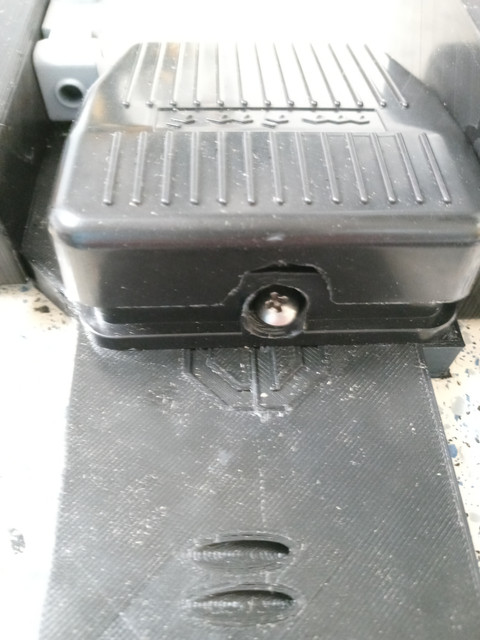

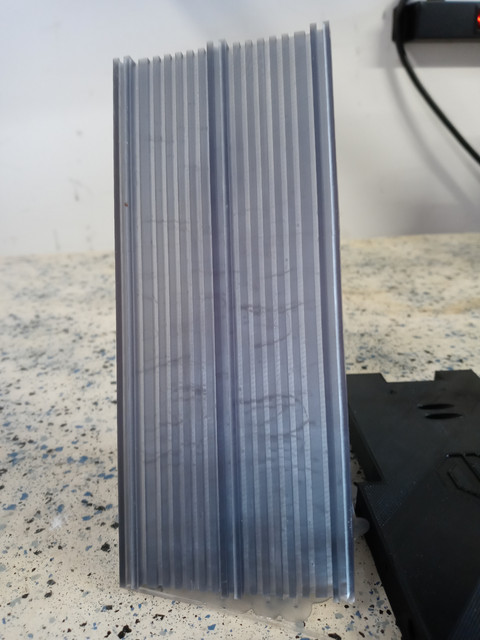

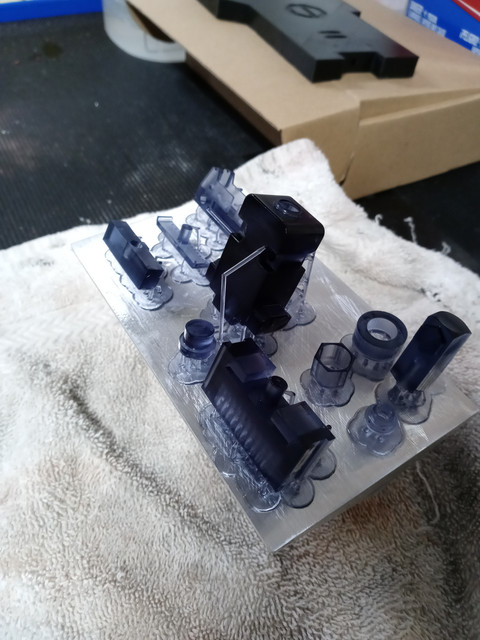

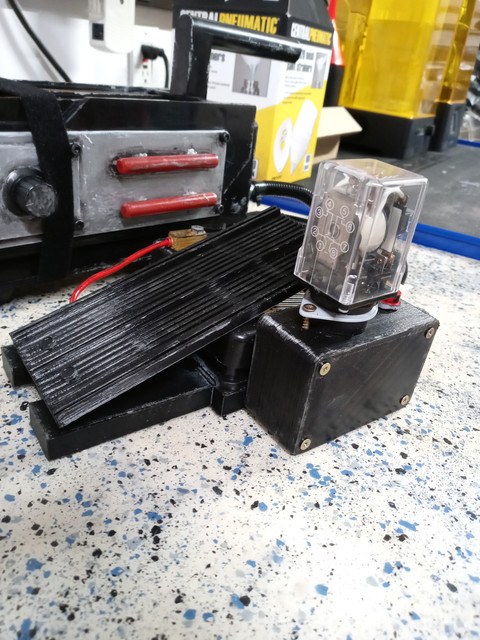

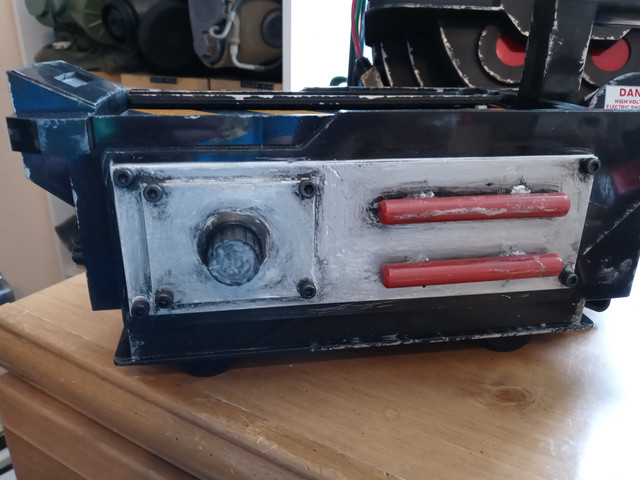

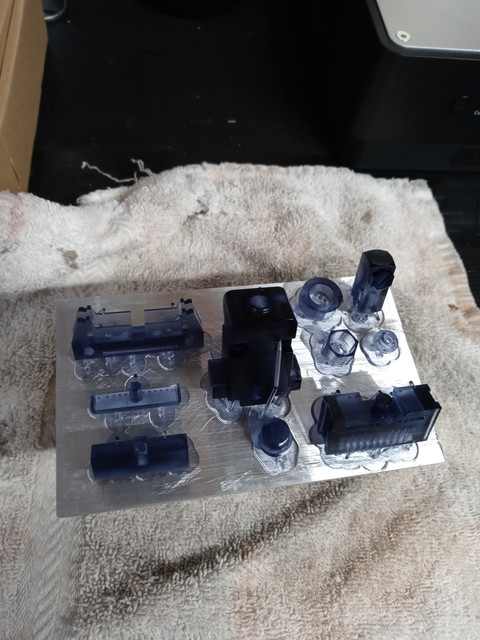

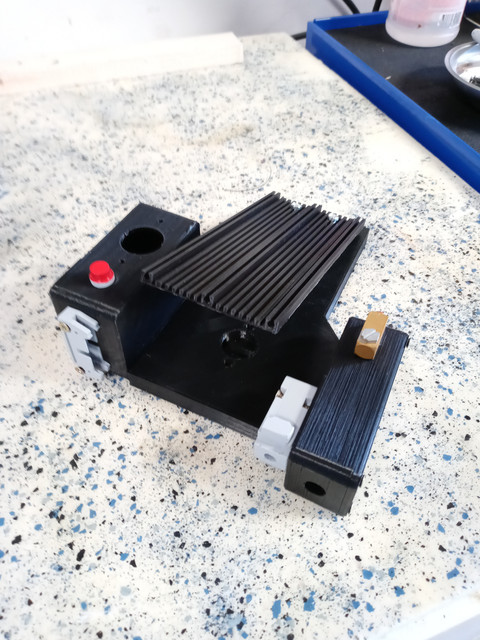

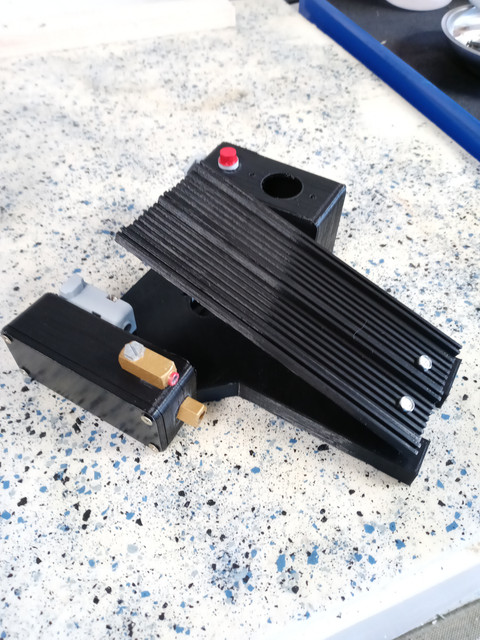

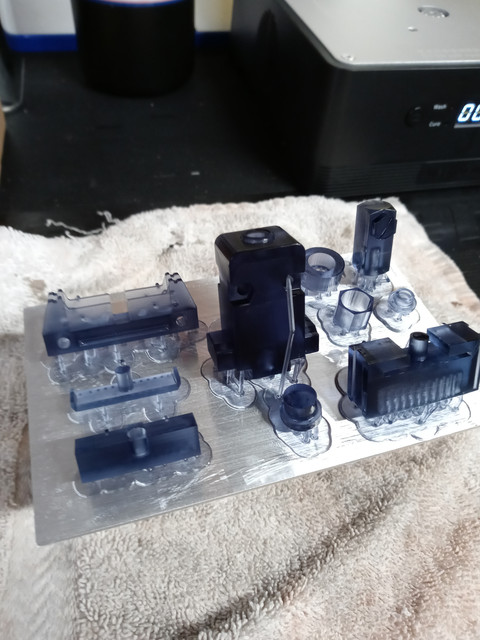

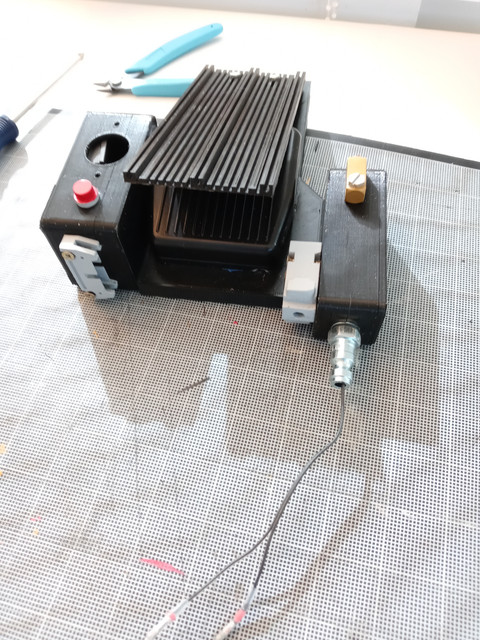

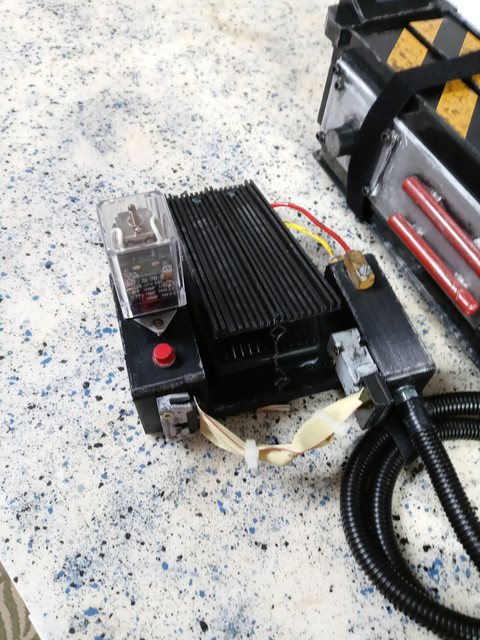

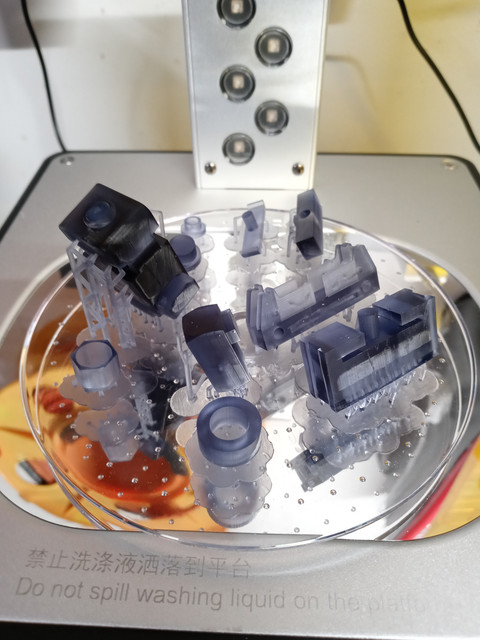

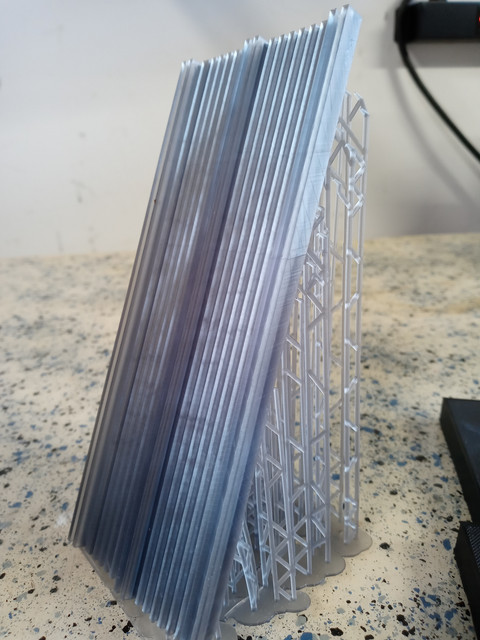

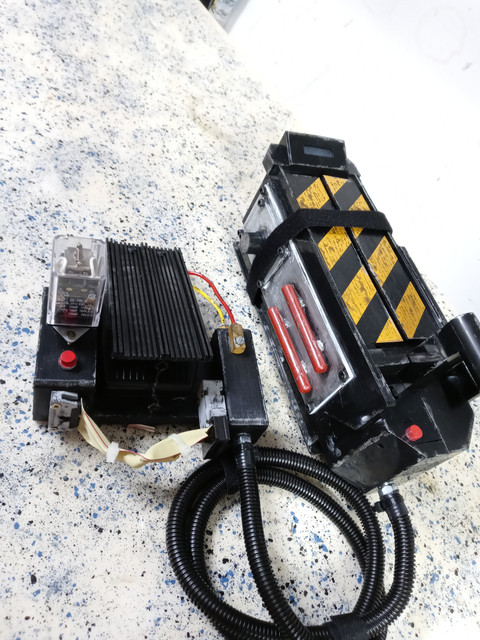

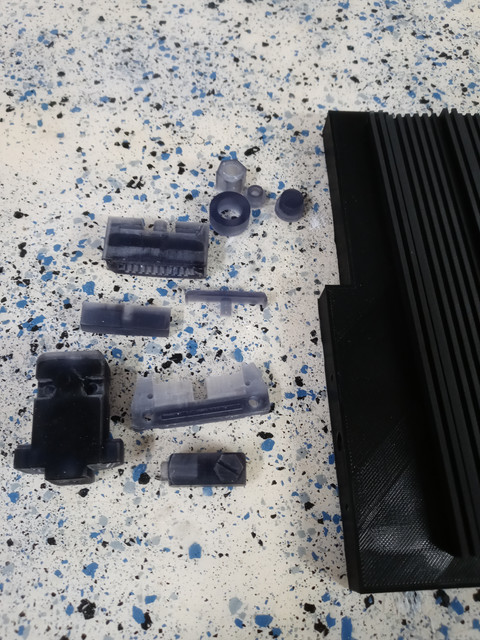

Hey all, here’s another 3d printed pedal build. I’m using a mixture of FDM and resin printed parts from my Ender 3 and Photon Mono. I originally printed the vector plate in resin but it cracked when I drilled a hole in it , so I reprinted in PLA . I used Siraya tech abs like resin which is pretty tough but it still cracked. Oh well. I am waiting on an 8 pin octal relay ($7) and an IDE ribbon cable ($5) both coming from Ebay next week to finish it up. I am using an old phone charging cable cut to length and painted red and yellow to simulate the tubing , and I know the paint and hardware aren’t screen accurate, but it’s been a fun project. I didn’t bother with the bellows under the pedal because I plan on stuffing the existing walmart pedal under it to activate the trap.

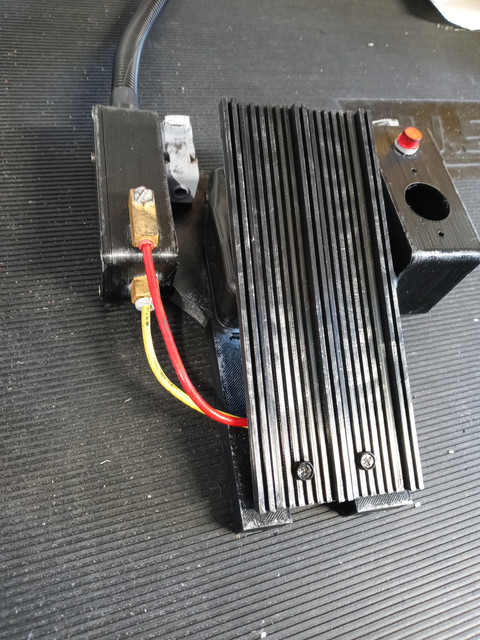

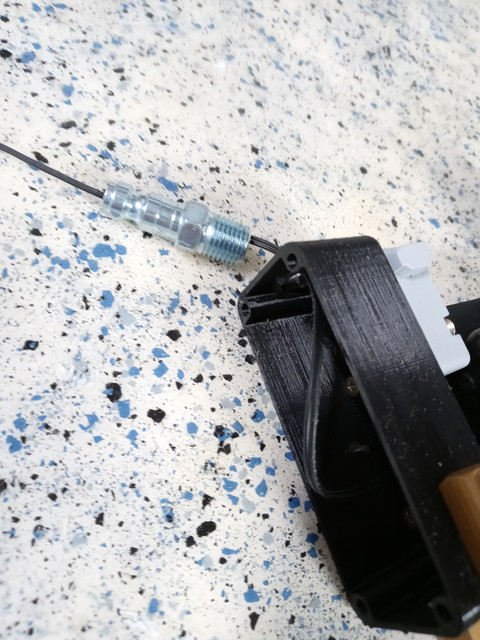

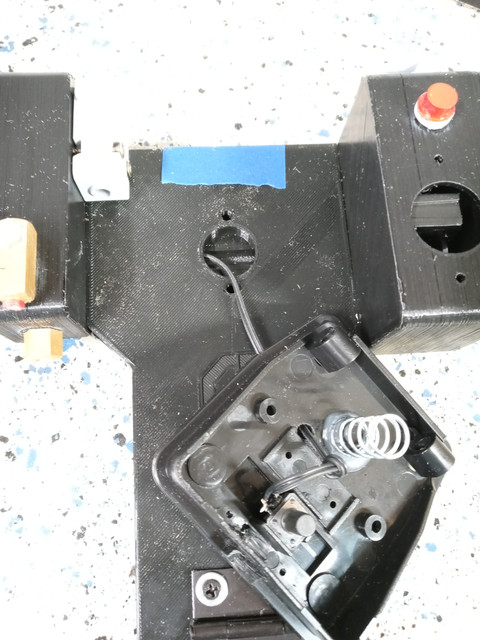

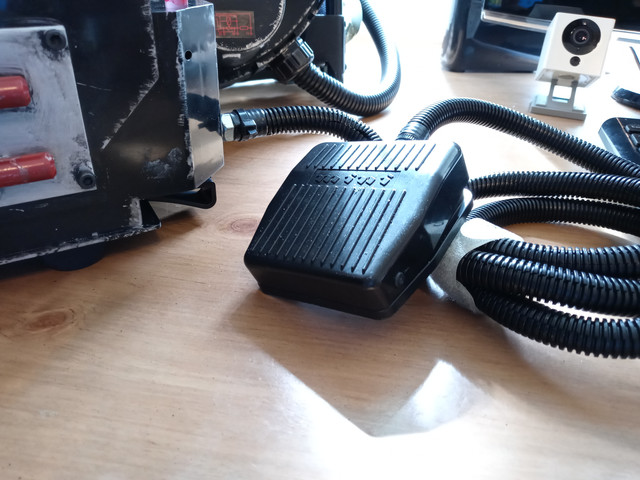

Hi! I’m working on this same thing. I was able to take apart the RCA pedal and hide the pressure mechanism behind the pedal hinge, run each wire thru the red and yellow tubing, respectively; join them in the box and have them come out the foster coupler.
What I haven’t been able to do yet is to get this to all go thru the quick-connect.

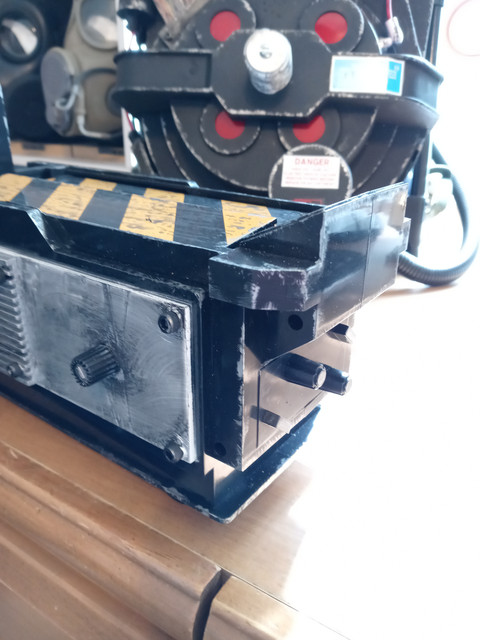

I also haven’t been checked out doing this from the trap end.
