does anyone know how to wire the charlesworth toggle switch? there’s 6 poles on the back. any ideas
i know it’s the yellow and the green wire and i can wire a 2 pole switch, but i’m just not sure here tia
Power in the middle and your circuit on either end. Doesn’t matter which. Keep them on one side. Six pole double throw toggles are for powering multiple circuits at once with a single toggle. You can ignore one side completely if you’re just wiring a single circuit. Pretty sure the Charlesworth toggle is double throw, which means it’s on/off/on, so wiring a single circuit will make your switch on/off/off.
thank you for the quick reply.i’m currently busy with a cockroach up on 12

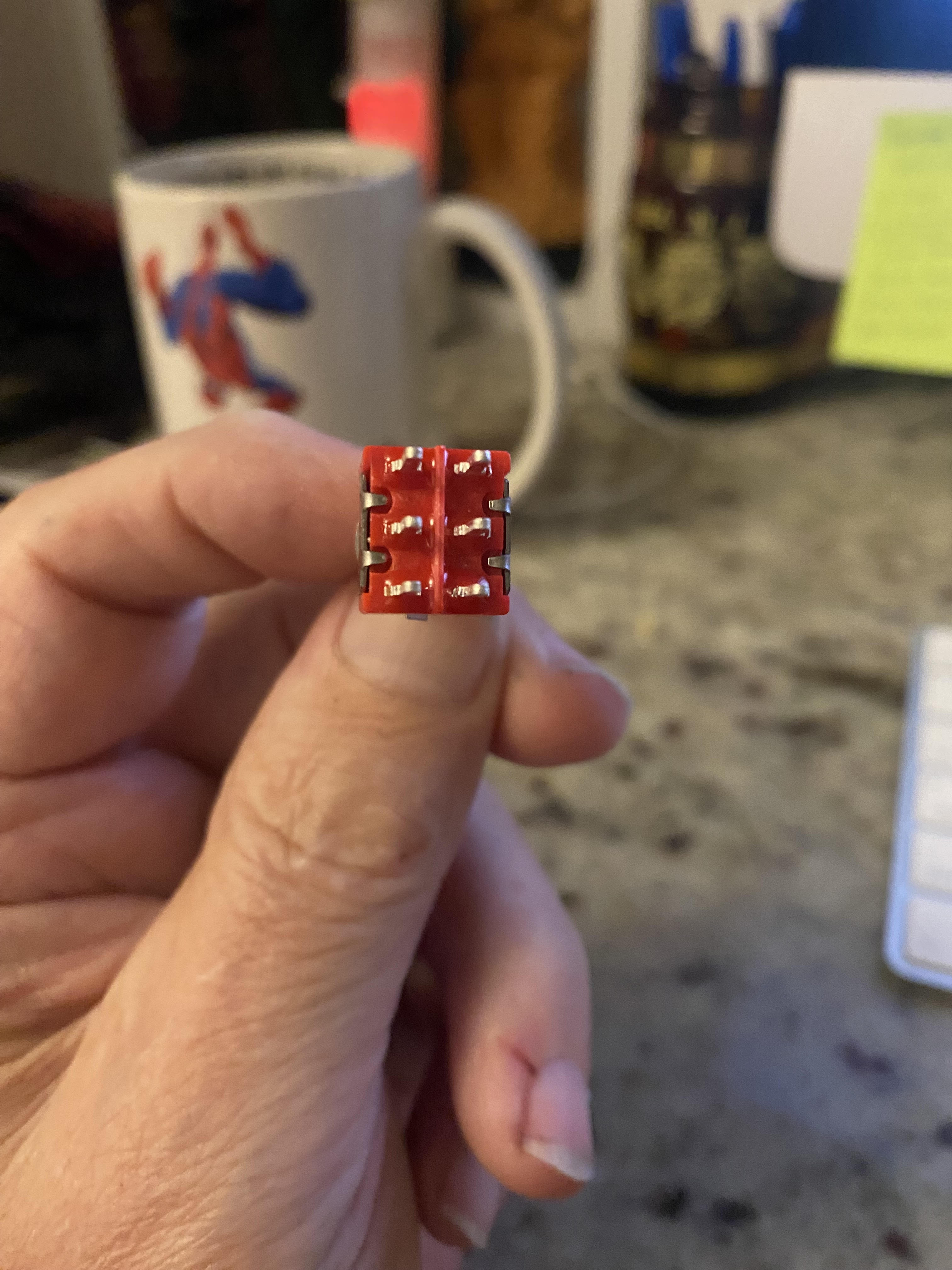

well i tried this and it didn’t work. using the pic i posted, can you explain it like i’m 5 ? i would gretly appreciate it
never mind
