Wife wanted Ecto goggles, and I didn’t feel like giving up my Matty’s.

Picked up a set of Spirit goggles and went about modifying them to look like GB 2goggles.

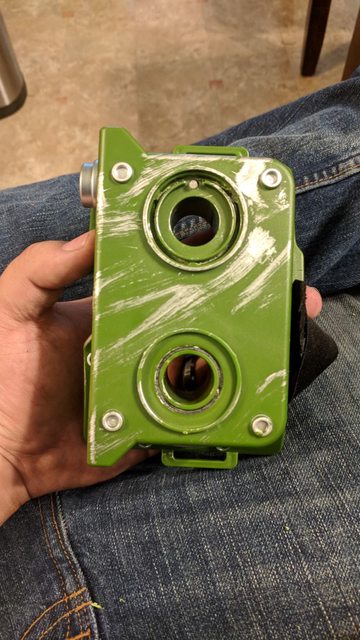

First up, disassembly. The lenses are glued in on an inner indexing ring, but the outer ring isn’t glued. Twisting the lenses off with a pair of channel locks worked pretty well. Just trim whatever is left behind flush with the inside.

image360×640 61.2 KB

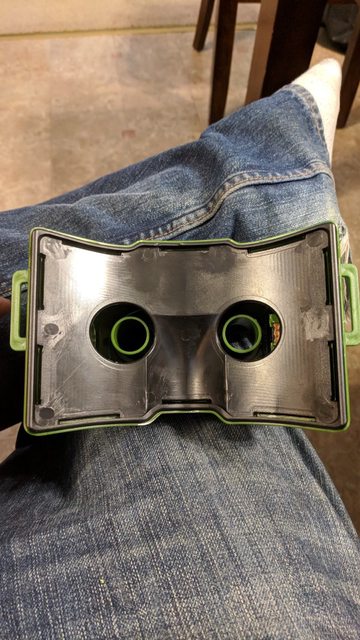

The rubber face bumper pulls off with gentle effort, as super glue doesn’t stick to the rubber as well as it does everything else.

image360×640 63 KB

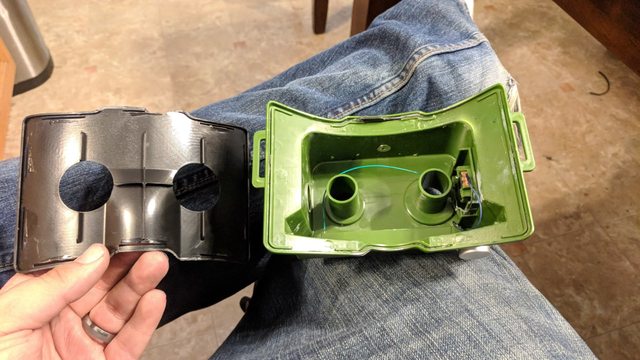

The inner frame took some prying to separate the glued sections. A little heat would have helped, or super glue debonder. If I did a second pair, I’d use debonder.

image640×360 54.7 KB

From there, I used [crydrk (Thingiverse]'s excellent 3D Printed GB2 goggles](Ghostbusters Ecto Goggles by steakosaurusrex - Thingiverse) as a baseline for lenses and other small parts.

Here’s my remix of his parts, for use specifically on the Spirit Ecto Goggles: Spirit Halloween Ghostbusters Ecto Goggles Upgrade Parts by WindDrake - Thingiverse

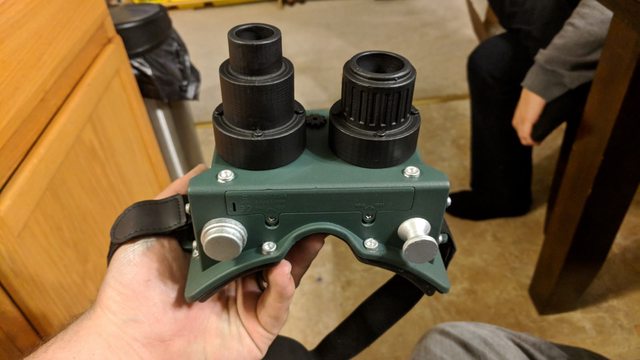

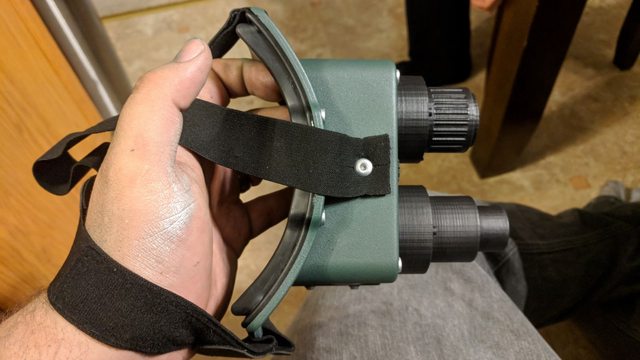

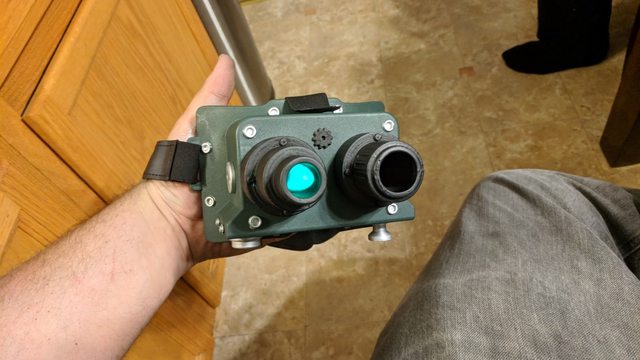

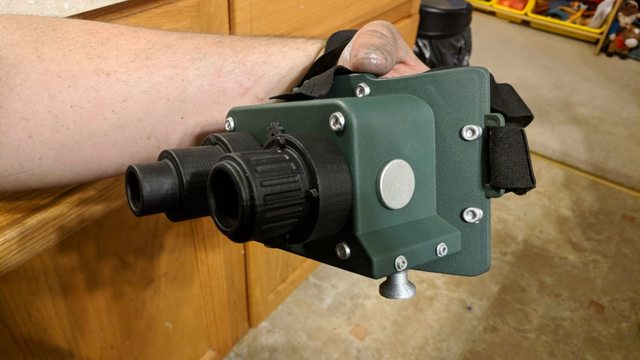

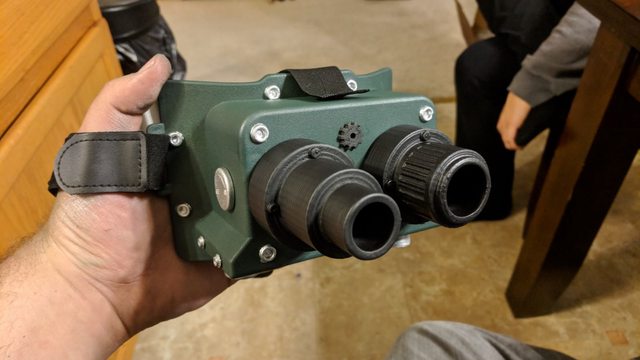

And here’s the finished product. Note - The rivet that holds on the top face strap is very soft steel, I snipped it off with flush cutters for painting, then replaced it with a 3/16 Aluminum Pop Rivet.

image640×360 36 KB

image640×360 35.9 KB

image640×360 36 KB

image640×360 39.5 KB

image640×360 43 KB

Note that stickers aren’t on in these images, as the paint was still not 100% cured (48 Hours, typically.)

2

Holy smokes they look nice. Damn, maybe I’ll make mine GB2 as well now. I was gonna try to completely mod them because those side wings are whatever you want to call it look so small and dinky but seeing it painted up, I dont really notice much of a difference. Great job.

3

want my goggles to hurry up and arrive now f, great job, can’t believe the whole thing is just glued together I figured there would be screws of some kind in there somewhere.

4

Very nice! Thanks for posting the break-down photos, it looks like they should be very easy to upgrade so that both lenses light up. Is that the LED visible in the gap in the left lense’s indexing ring?

5

Those look awesome. What brand and color paint did you use? Were the stickers separated and you have to apply or did you have to heat them off?

6

@Kingpin - That’s why the left lens has that slot in it - it’s for the LED to shine through (left as seen from the front, long lens).

@randomZERO - Rustoleum 2X Satin “Hunt Club Green”. The stickers come on a separate sheet.

7

Sweet thanks for the STLs as well.

8

I had an extra pair of these goggles and thanks to you, I purchased the exact color you used on your goggles. I like the color very much. Sadly I dont have a 3d printer so I’ll just keep the lenses that came with it. I do like the way your goggles turned out. Great job
