Long time no post.

So, for a long time I’ve wanted to build a Ghostbusters Super Hero proton pack, the issue being there is little to no information about how it looked in 1983. Going off a limited amount of screen captures from the film, behind the scenes screen grabs and lots of evaluation of the Super Hero pack as it sits now I believe I have enough information to recreate this pack.

I’ve also spent the last three or four years acquiring some of the best parts that the community can offer. I’m still awaiting additional parts but here’s a highlight of some of the great parts:

Shell:

Chris Bosh Shell

Vintage Parts:

Vintage Heat Sink

Vintage Clippard R-331

Vintage Clippard R-701

Vintage Clippard Hex Fittings

Vintage Sloan LED “Milky” white Hat Light

Vintage Sloan LED Orange Hat Light (gun ear)

Vintage Pneumatic Hoses

Vintage Resistors

Vintage Legris Straights

Vintage LC-1 Frame

Vintage LC-1 Straps

Vintage Raytheon Gray Crank Knob

Production Lineage Parts:

Bumper

Booster Frame

Gun Grips

Aluminum Parts (Freeky Geeky):

Ion Arm

Booster Tube

N-Filter

HGA

PPD

Beam Line

Filler Tube

V-Hook

Wand (gun track, box, instrument bar, trigger box, gun ears, pop mechanism, etc.)

GBfans Parts:

Ion Arm Cap (Ghostbusters II Style)

Vac Tube Plug

Gear Box Label

Bumper Label

Mounting L-Brackets

Acrolytic Lamp Covers (red & clear)

Wand Knobs

Other Parts:

Nick-A-Tron Frame Spacers

Joe Luna Labels

Mack’s Factory Bellow

Fincher Tech Ribbon Cable & Legris Elbows

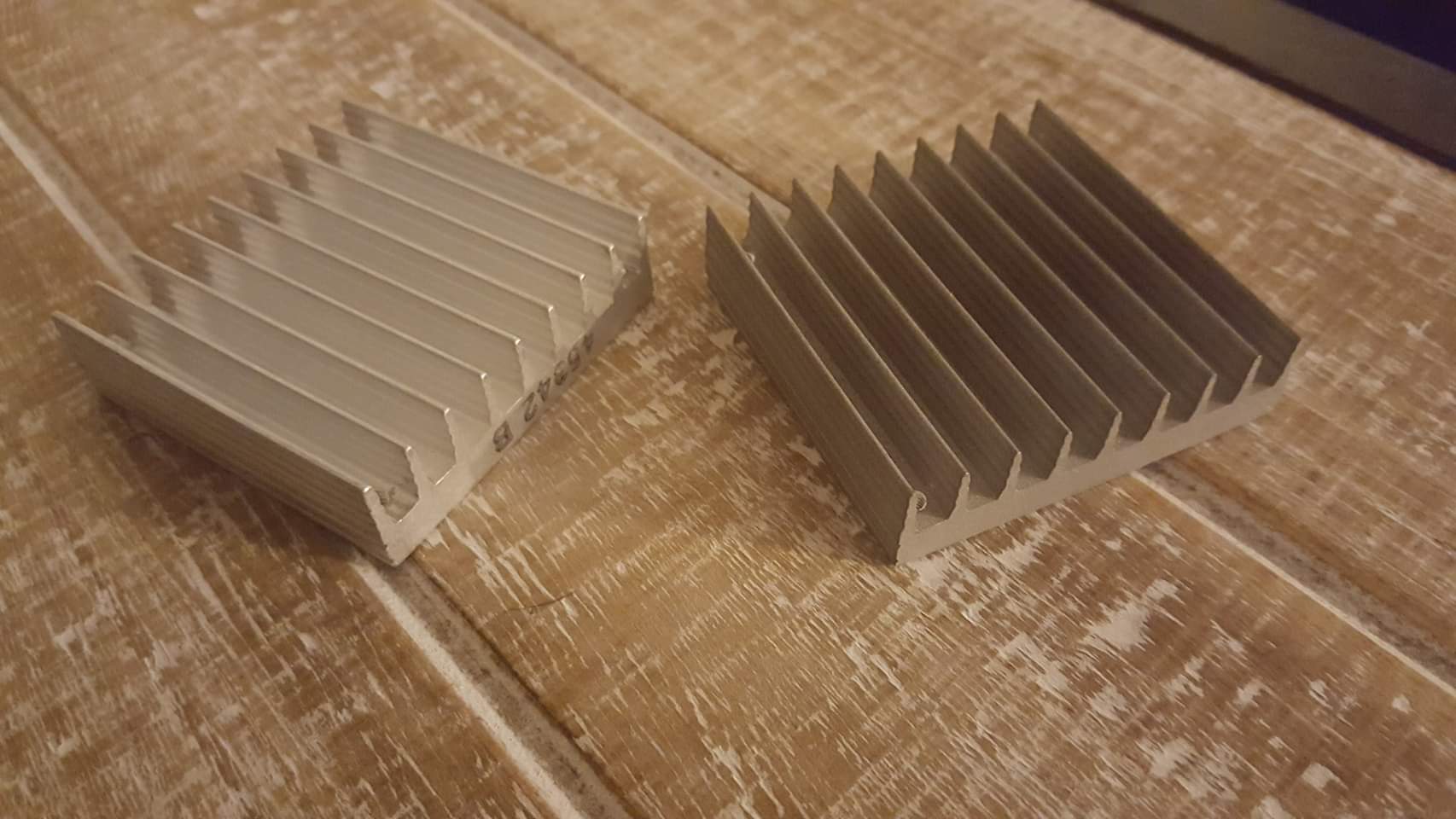

Comparison of my real heat sink with a replica.

Super Hero XLR Plate & Power Cell Light Bracket:

Dry fit of the wand parts, instrument bar is backwards, and incorrectly drilled. Had to order a new one.

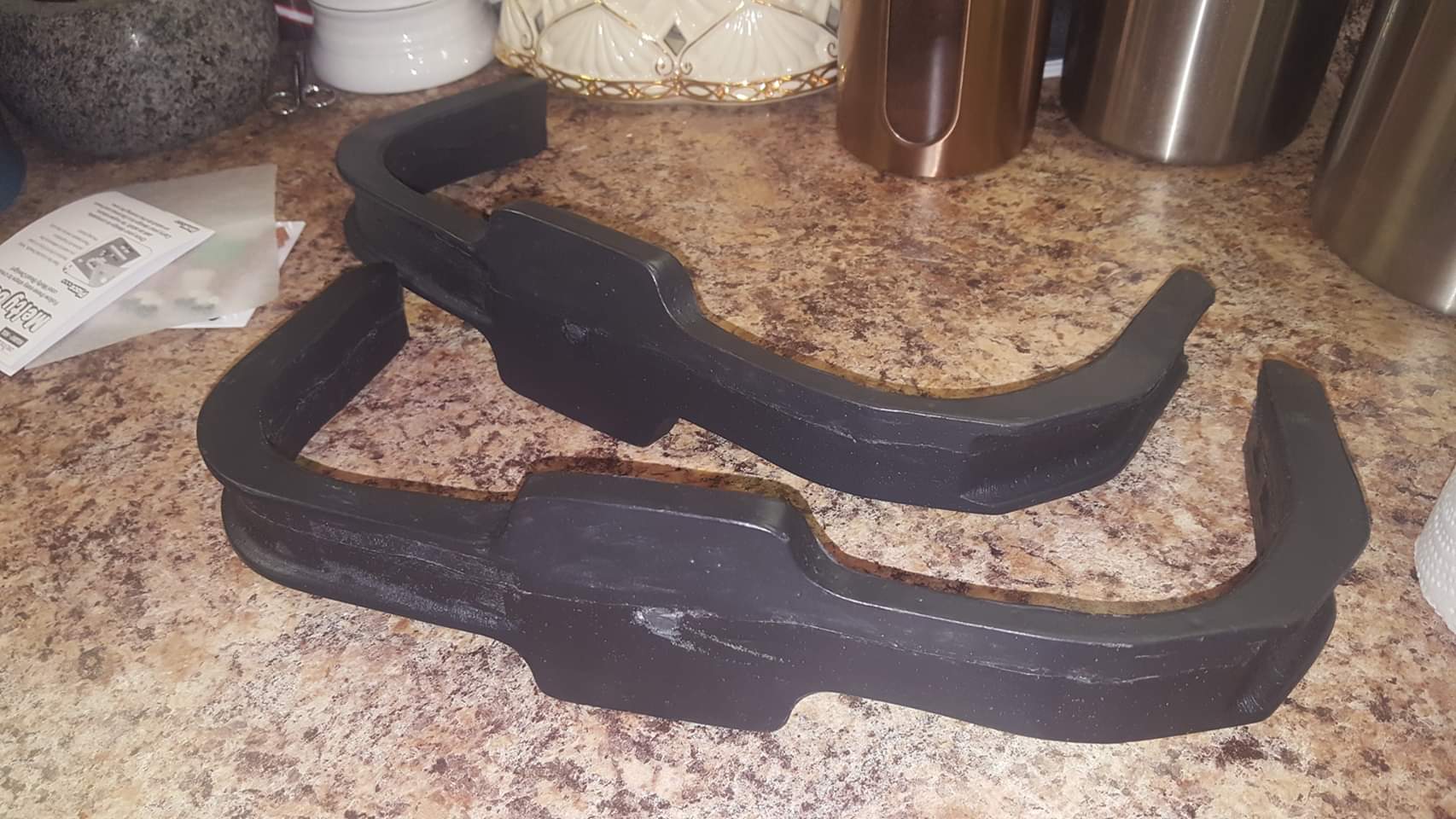

Production lineage bumpers:

Test fit of GBFans knobs:

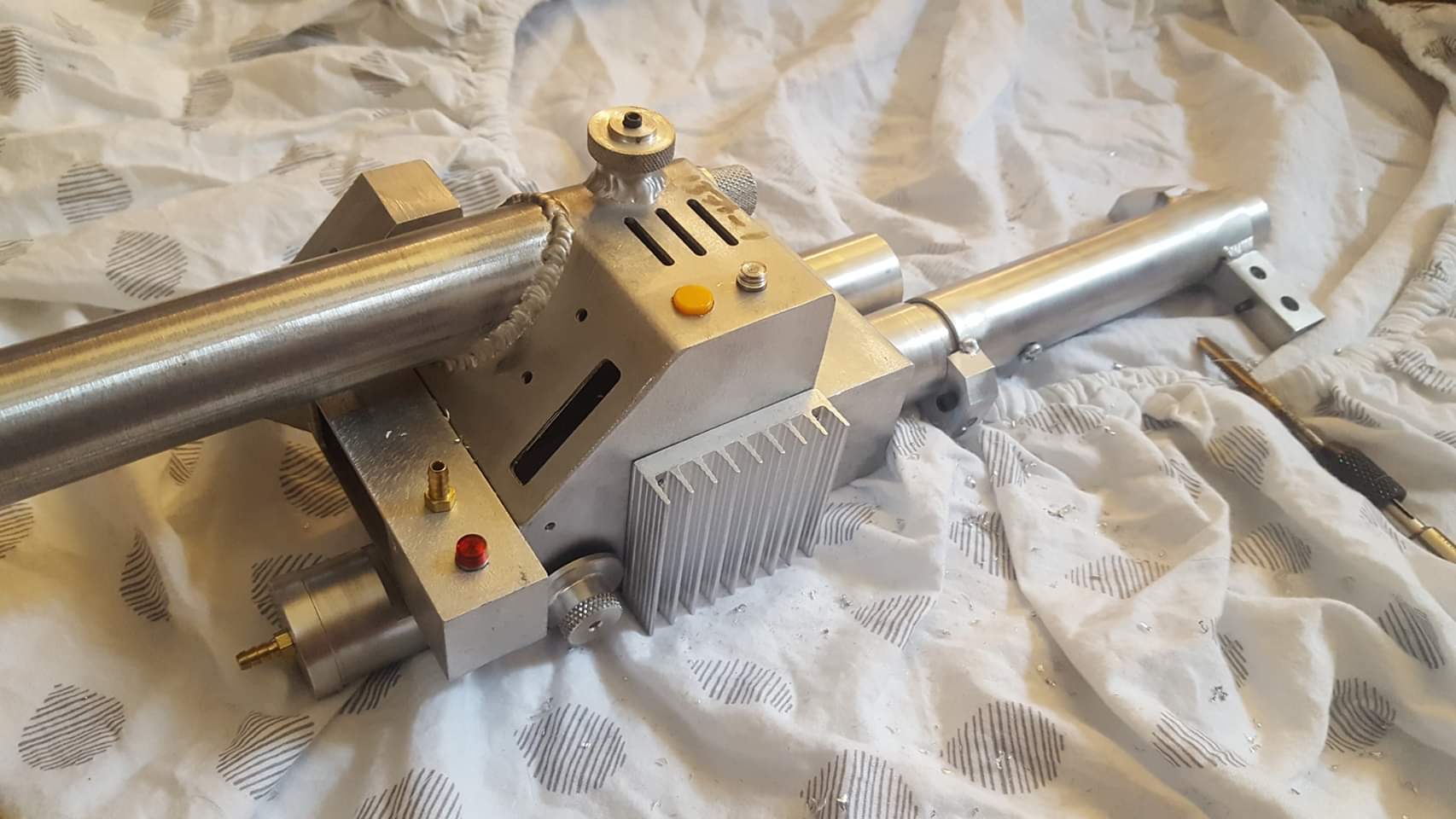

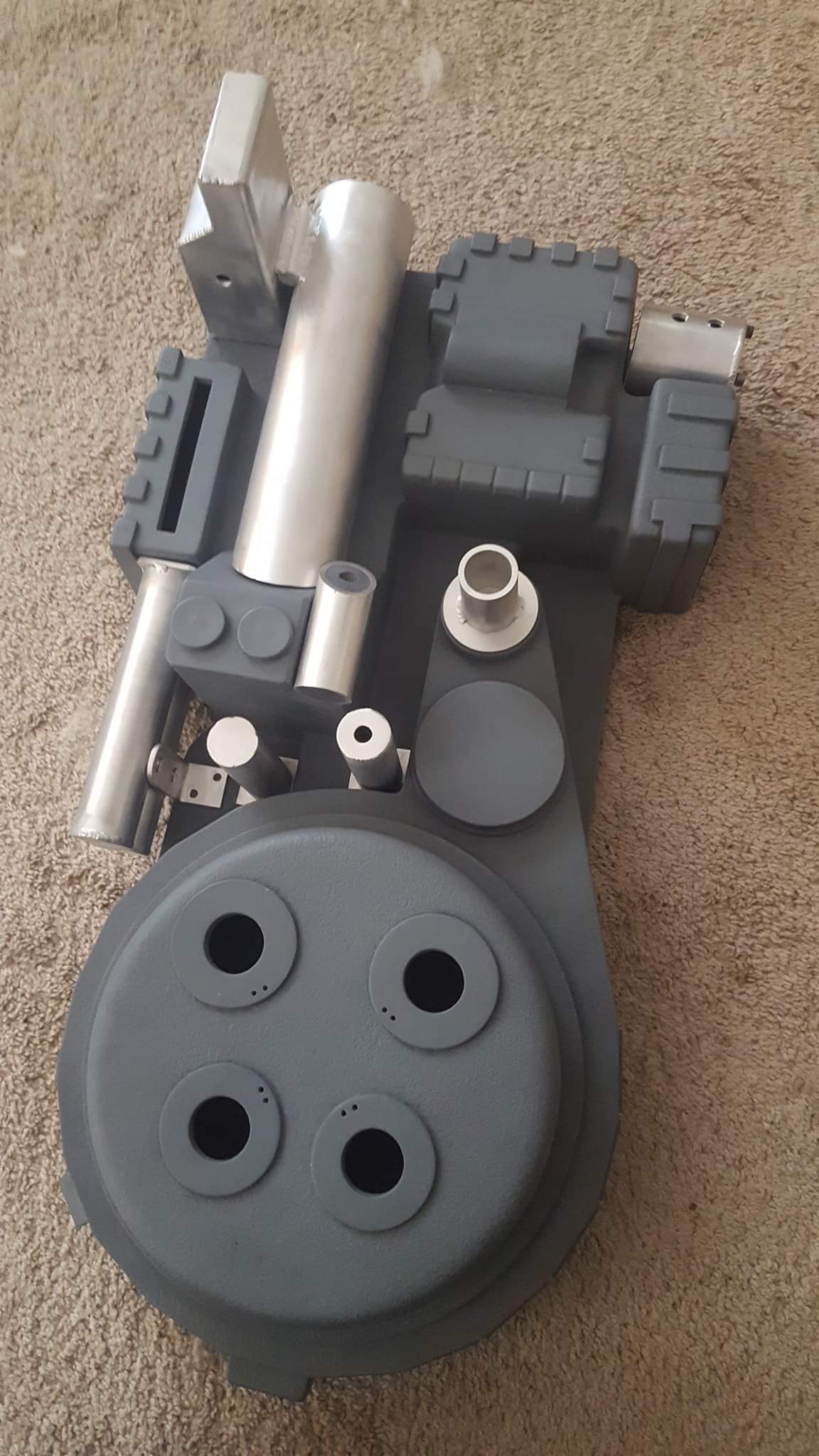

Test set of aluminum parts, unfortunately Freeky Geeky’s vac tube was too small and a new one was ordered from gbfans:

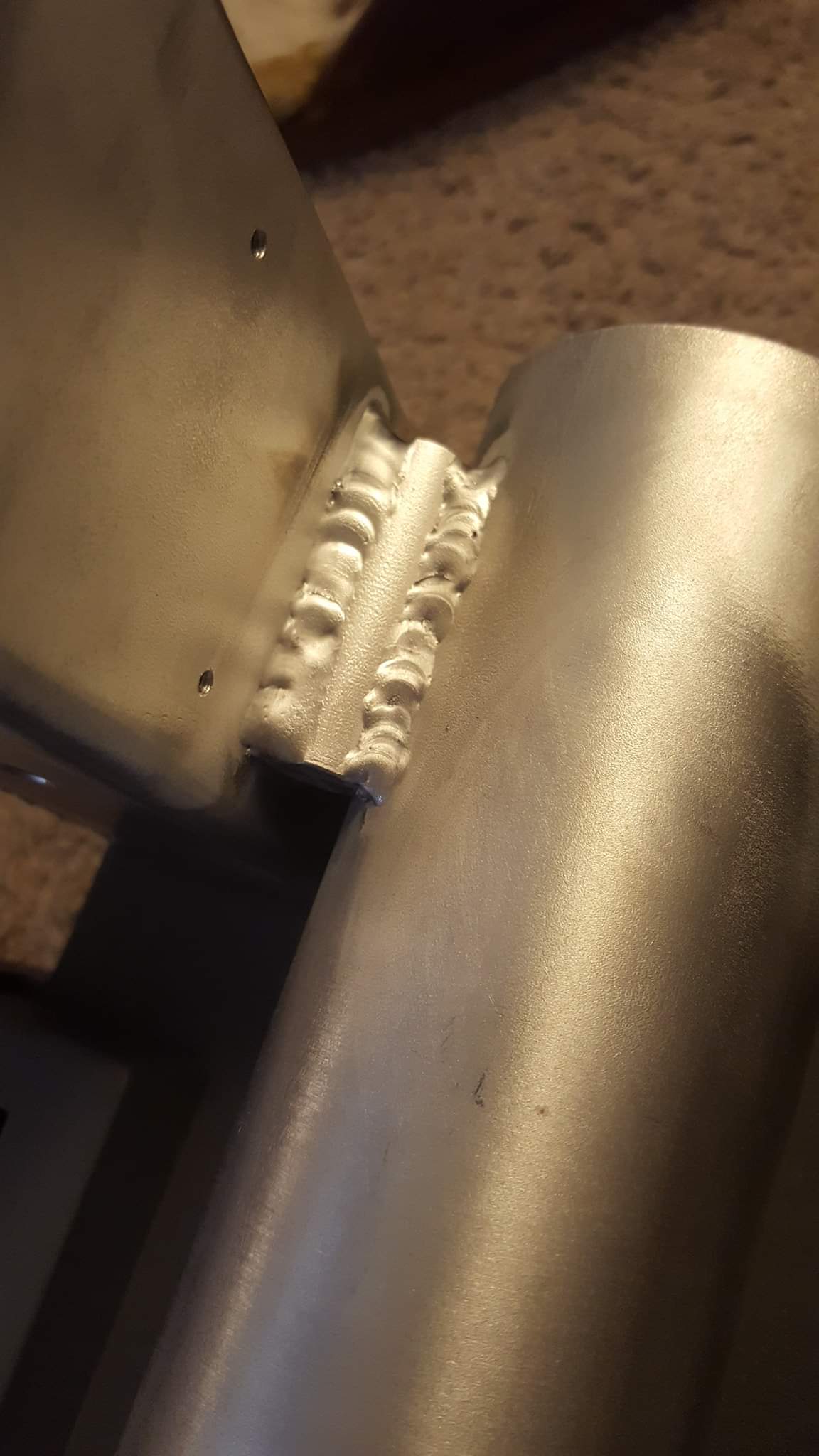

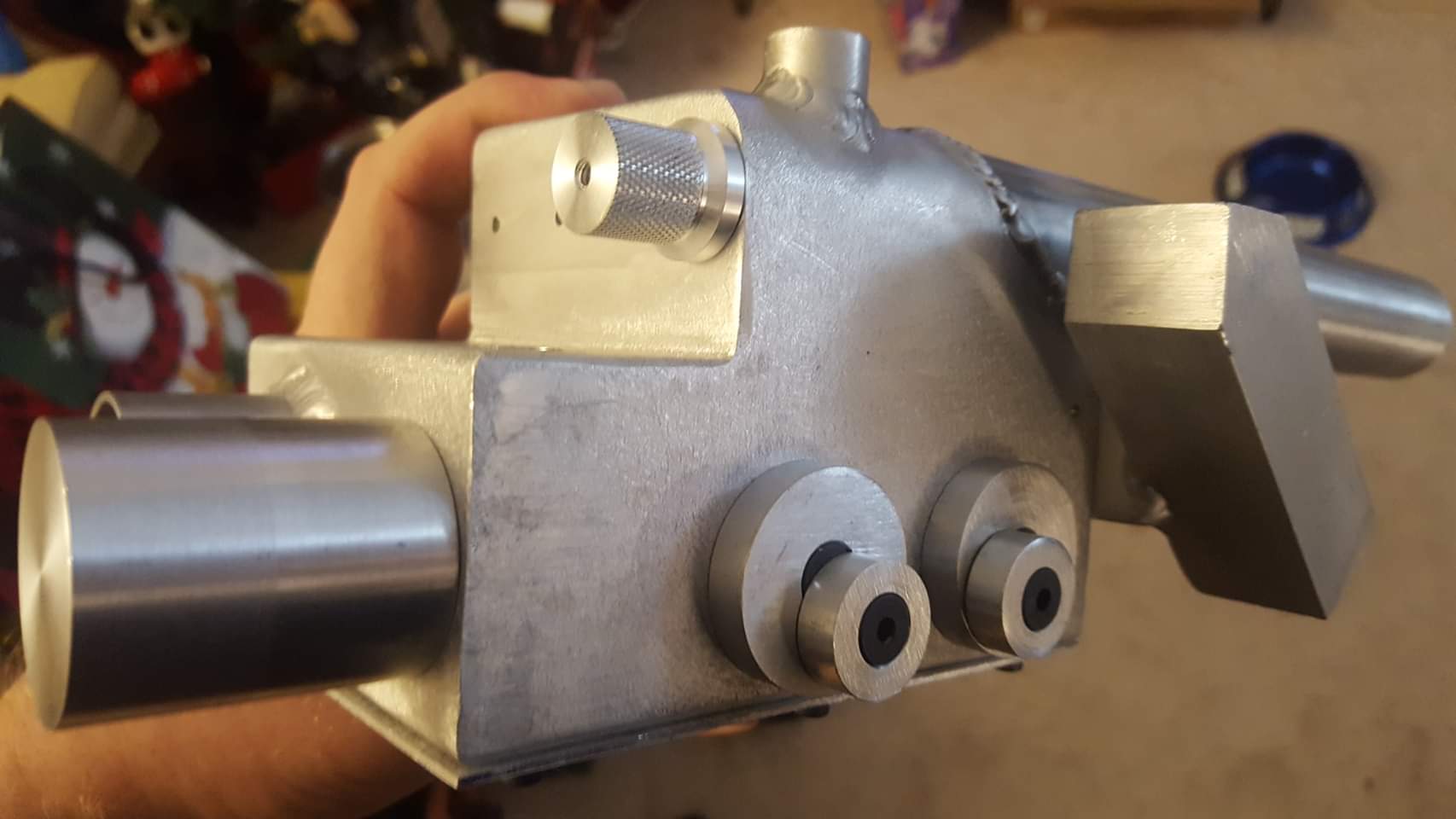

Super Hero ugly weld between the booster tube and ion arm:

Painted Ion Arm & Booster tube:

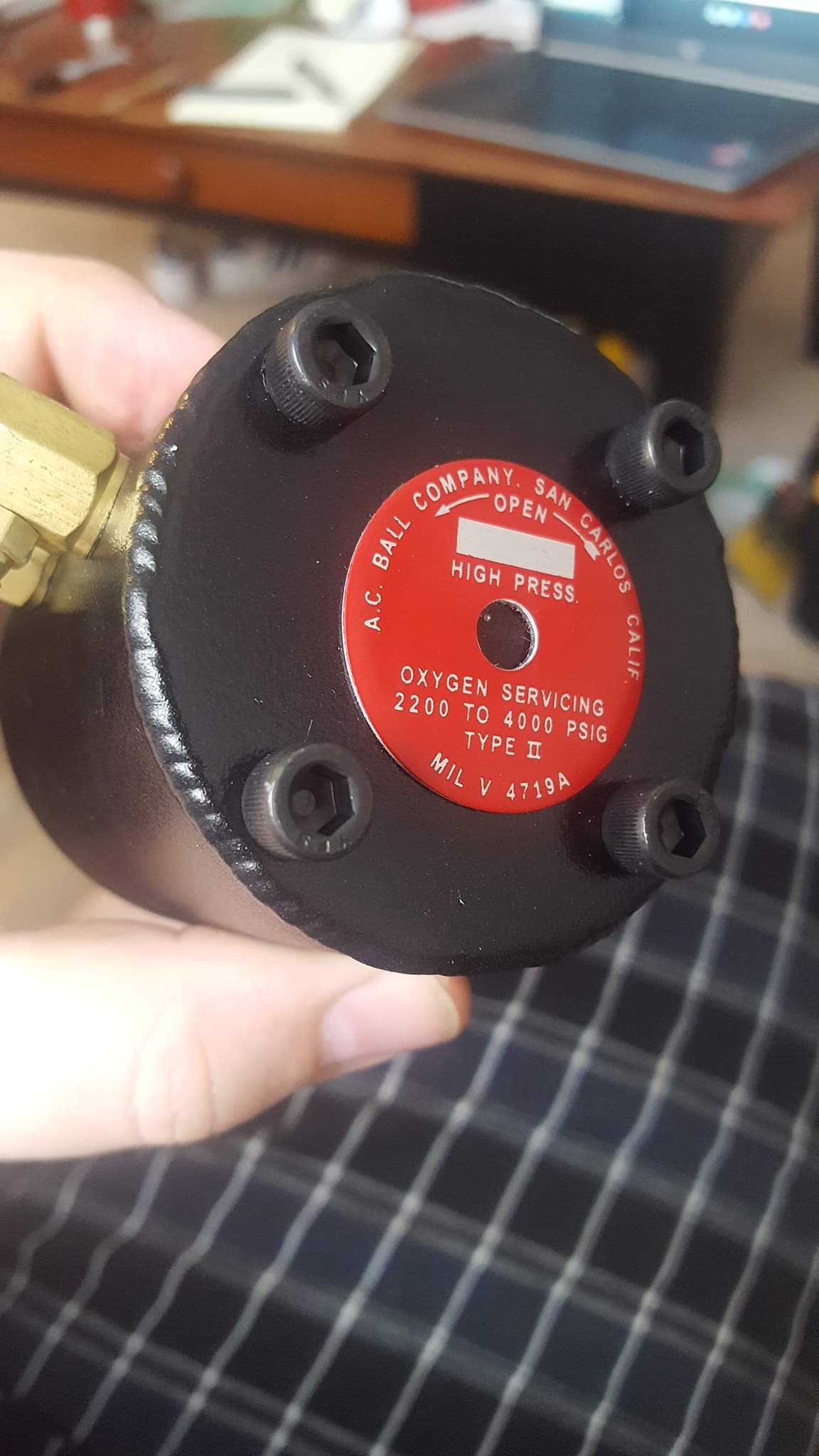

Completed HGA:

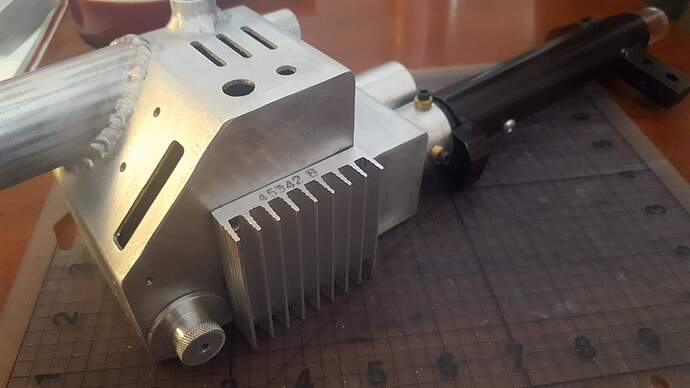

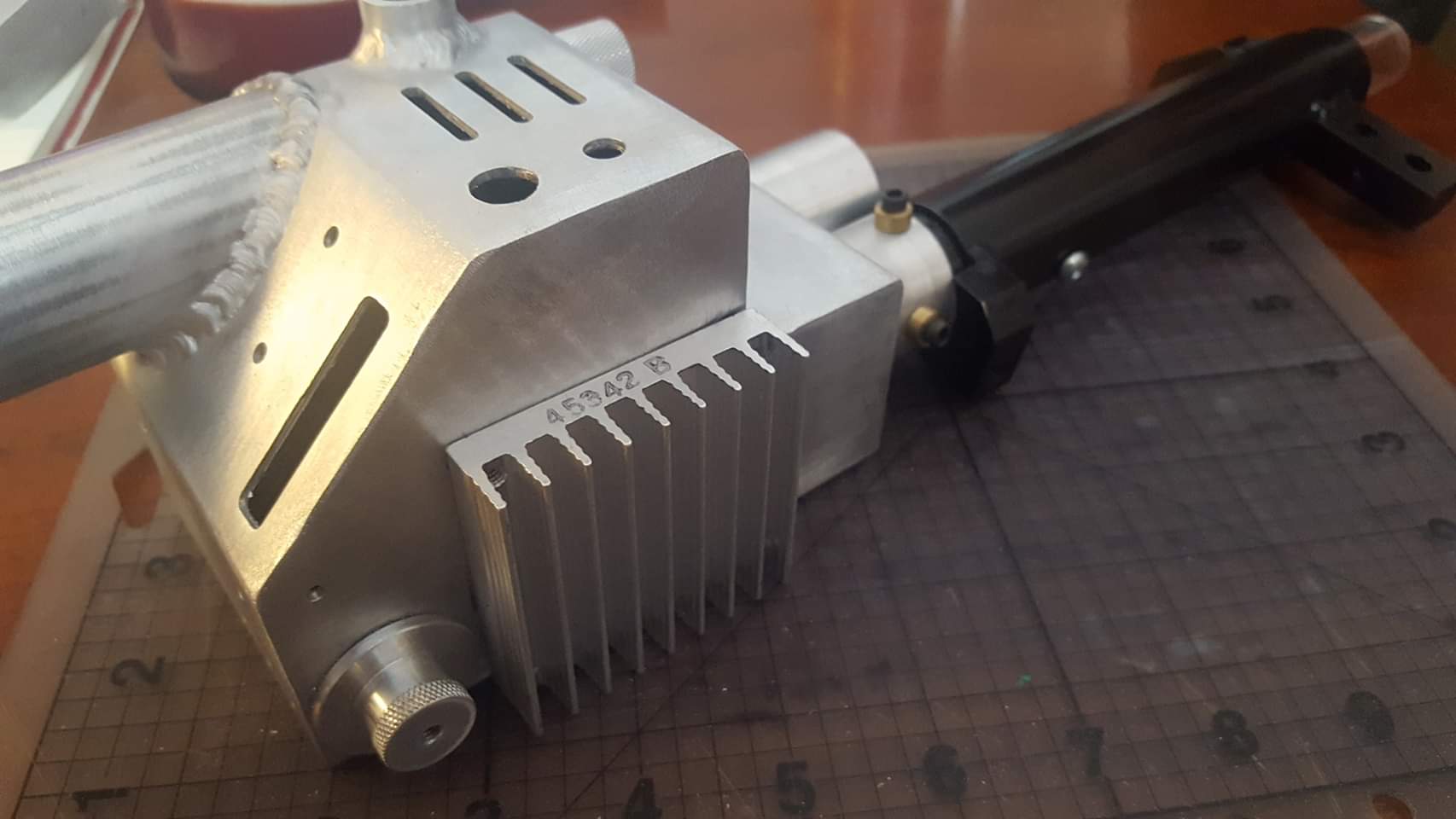

Last time this vintage heat sink serial number would ever be seen:

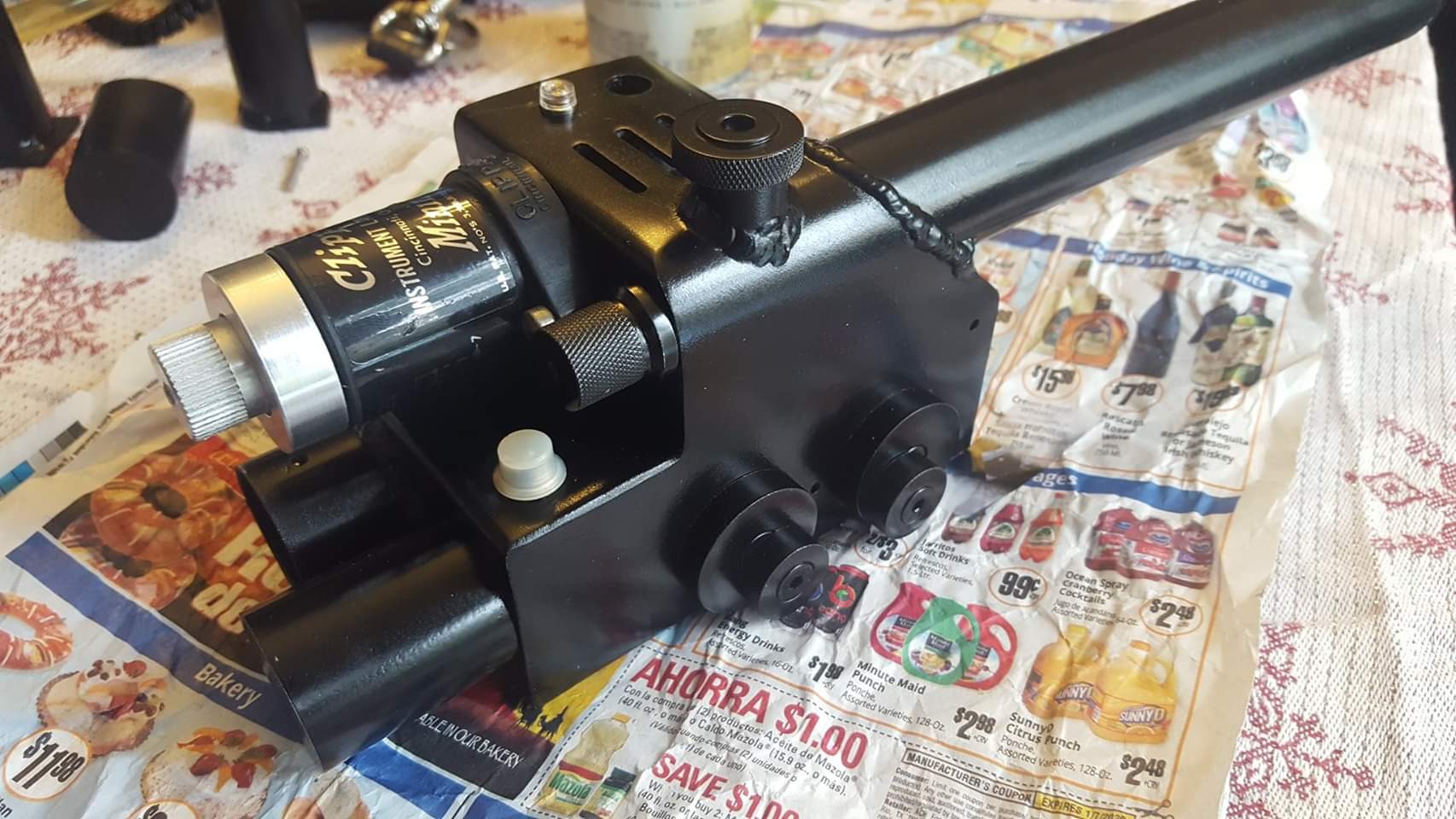

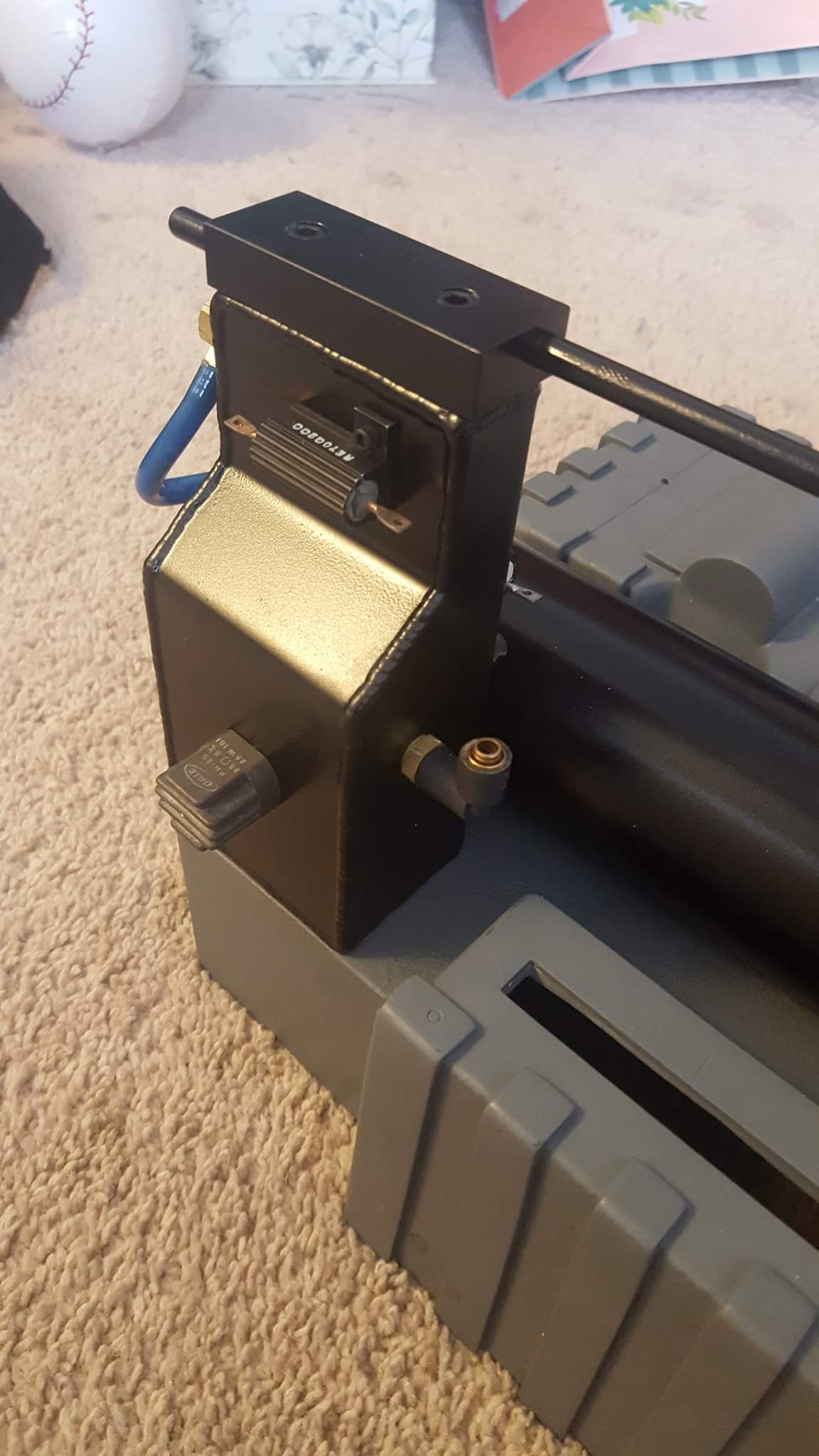

Started on wand paint, vintage hat light pictured.

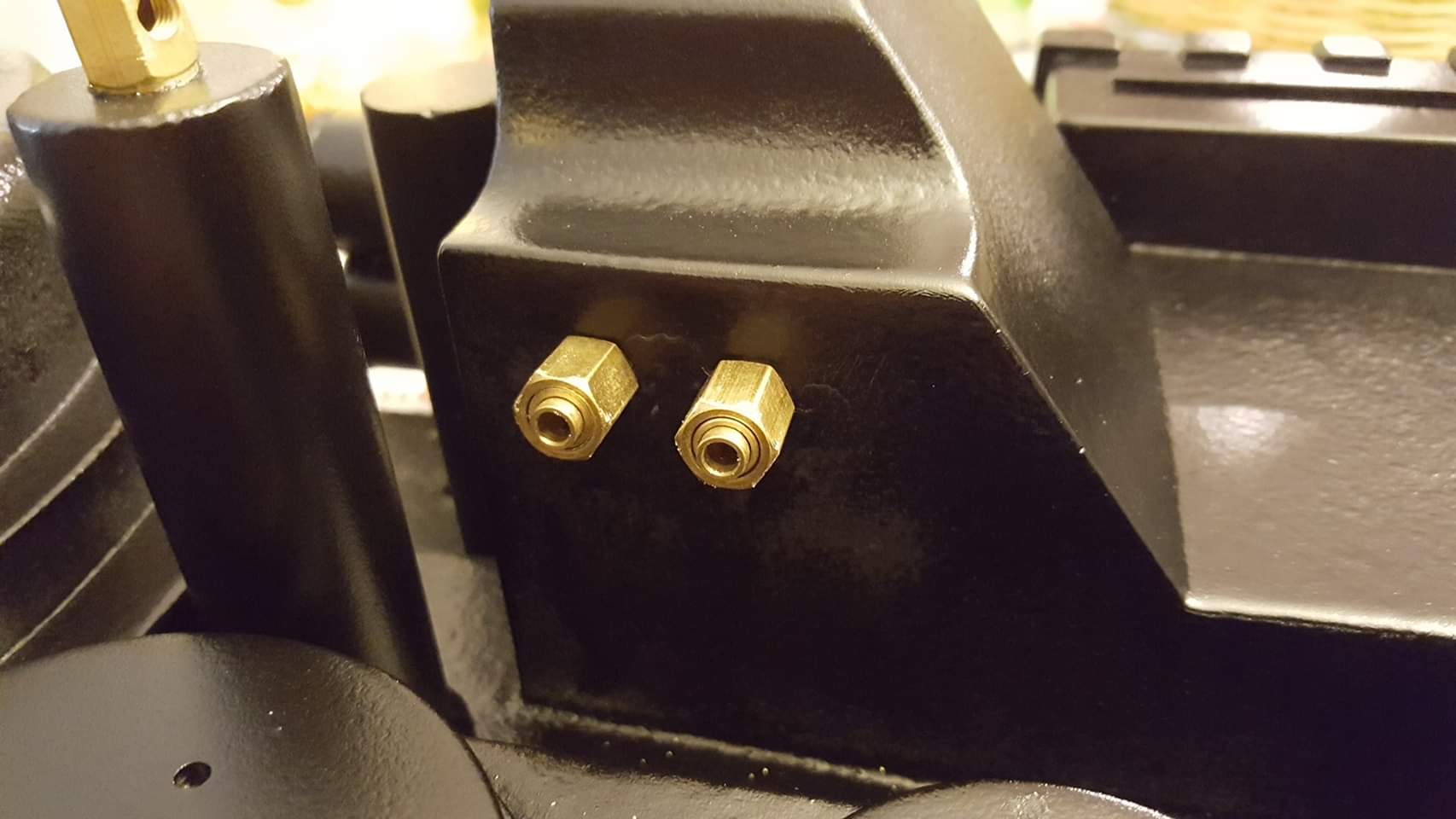

Installed vintage straights:

Some items to note:

• All the knobs on the wand are black, the rear cylinder will remain exposed aluminum.

• Top Wand sunk hat light is orange not white

• No bar graph transfer on wand or slo-blo decal (trigger decals will be applied once electrics are in)

• One side painted gun box bottom plate & gun track

• Cyclo Ring Dimples Filled in

• Bumper Installed Backwards as seen in 1984

• Correct pack decal application

• Painted over washers on bumper hex cap bolts

The only item I am unsure of if it was on the proton wand is the diagram dry rub, there is no evidence of the dry rub being there as the pack sits today, but I needed a little bit more color on that side of the wand, and no one can say I am wrong.

[kingpin]

Sexy.

[Dan_AKA]

[quote=Kingpin post_id=4933914 time=1587575266 user_id=76]Sexy.
[/quote]

I think so! I guess you could say I lost my v-card today.

[Dan_AKA]

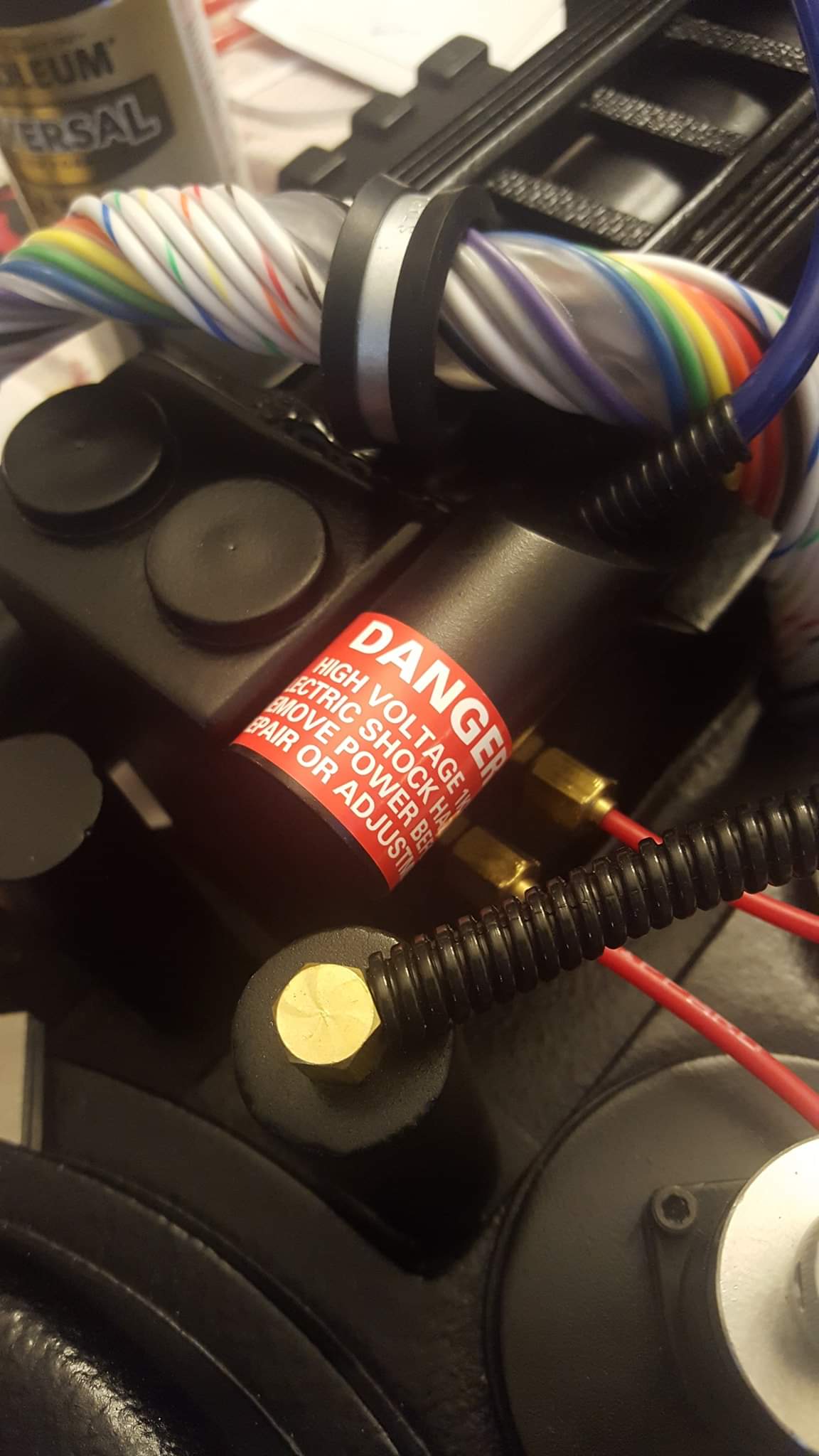

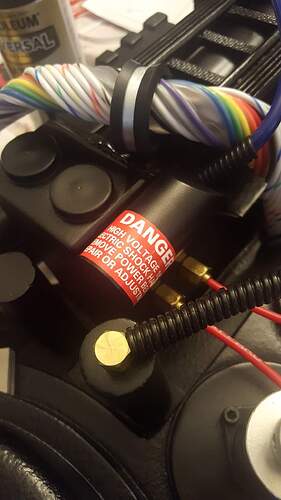

Got the ribbon cable on today, going to do a little more tightening up on the cable, and I had to reposition the PPD Danger label.

[Dan_AKA]

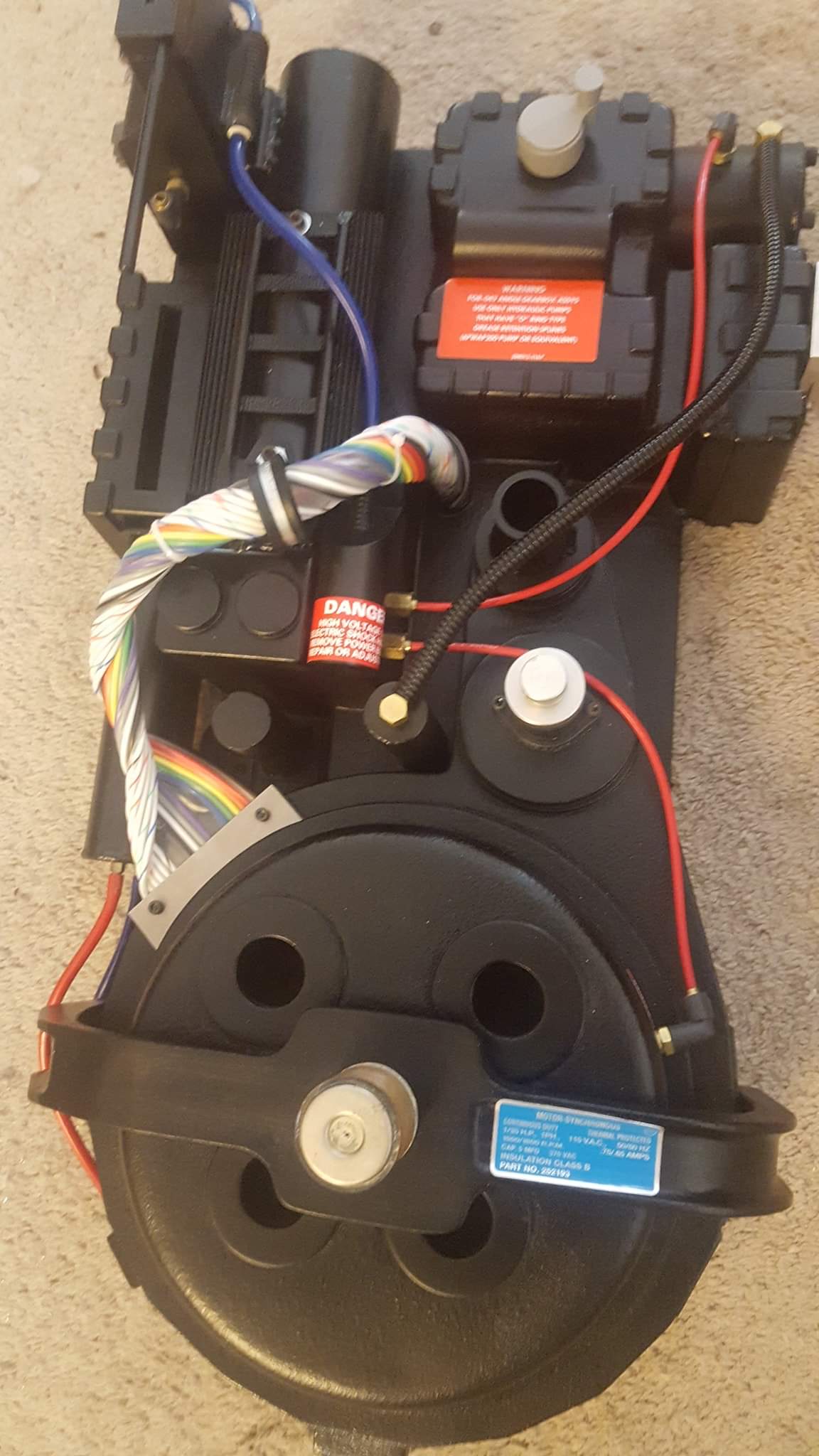

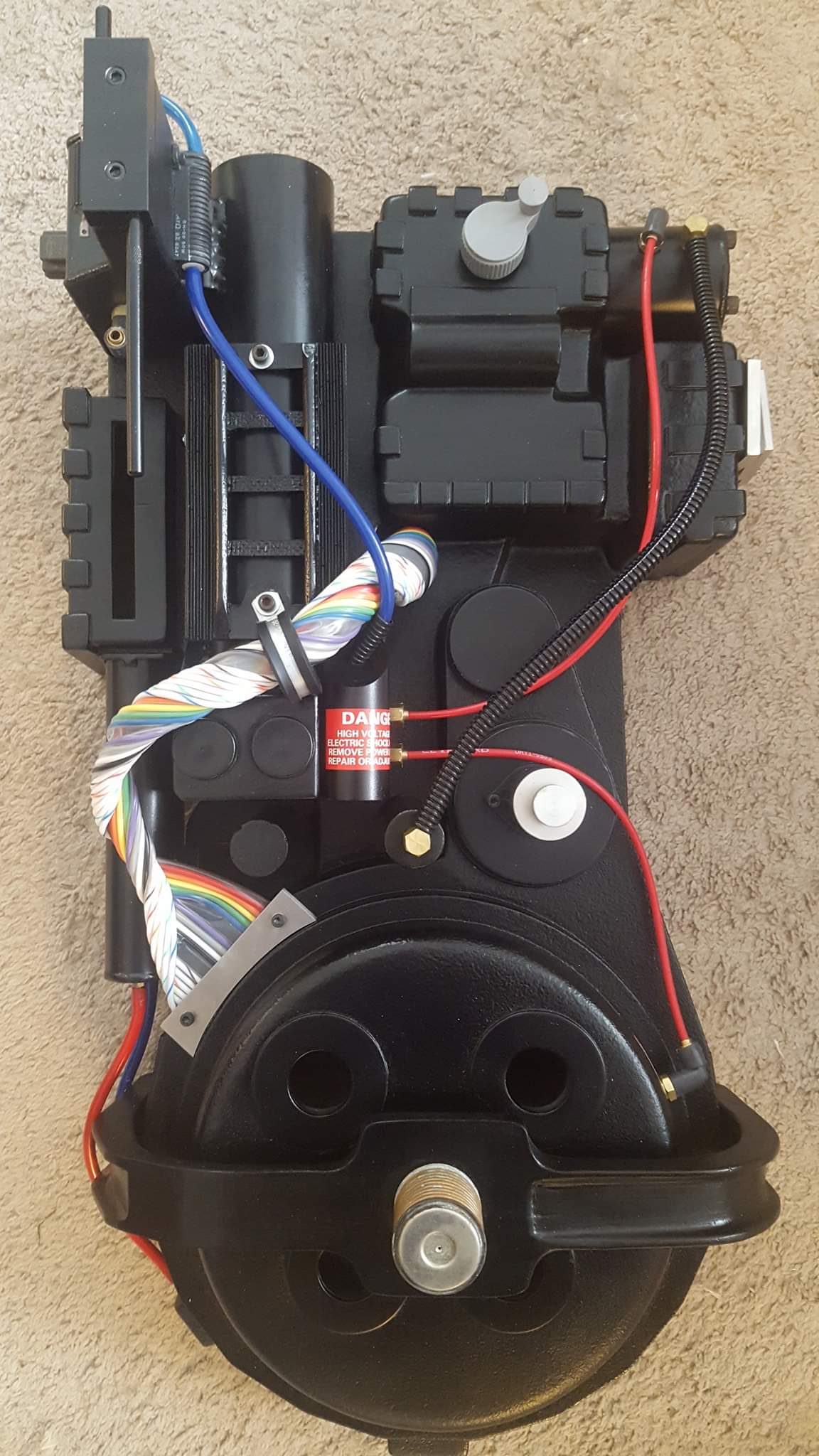

Received my vac tube from GBFans and some missing labels, went ahead and put those on, still missing the N-filter from Freeky Geeky.

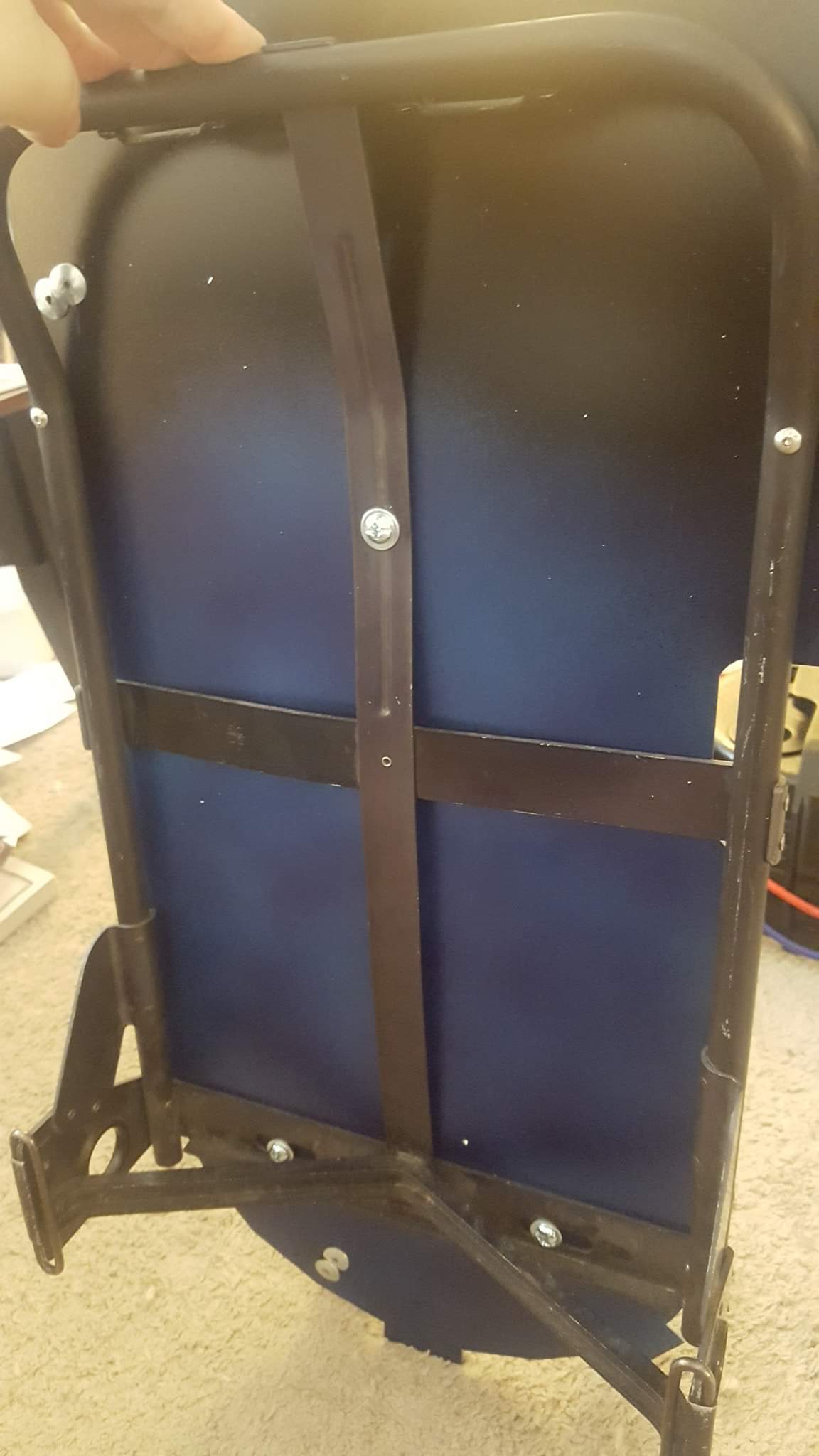

Mobo is coming along, need to redrill out the L-brackets for the powercell and gun mount, but I love the black to marker fluid blue transition.

[Mattb1Stantz]

Where are the spacers between mobo and shell?

[JWils23]

After following these threads and seeing your Facebook posts I can’t help but wonder if this is why Murray hated wearing the packs so much. If he spent a lot of time wearing the Super Hero with no spacers and no neck foam I could definitely see why he’d never want to put one on again!

[Dan_AKA]

@Mattb1Stantz post_id=4935048 time=1590067368 user_id=51670

Where are the spacers between mobo and shell?

The Super Hero pack had no spacers between the mobo and frame during the filming of Ghostbusters.

@JWils23

After following these threads and seeing your Facebook posts I can’t help but wonder if this is why Murray hated wearing the packs so much. If he spent a lot of time wearing the Super Hero with no spacers and no neck foam I could definitely see why he’d never want to put one on again!

No neck foam, no spacers to distribute weight AND the shoulder straps were put on the wrong sides - I think this pack is EXACTLY why Bill Murray hated wearing the packs so much.

[JWils23]

Oh wow I didn’t see the straps on backwards, that would be the cherry on top! How do you get the straps on backwards?? Yea I can’t imagine why he hated wearing the packs so much haha

[Mattb1Stantz]

@Dan AKA

@Mattb1Stantz post_id=4935048 time=1590067368 user_id=51670

Where are the spacers between mobo and shell?

The Super Hero pack had no spacers between the mobo and frame during the filming of Ghostbusters.

Are u sure?

Where I can found this refence?

[Dan_AKA]

@JWils23 post_id=4935065 time=1590099817 user_id=50531

Oh wow I didn’t see the straps on backwards, that would be the cherry on top! How do you get the straps on backwards?? Yea I can’t imagine why he hated wearing the packs so much haha

You just put the right ■■■■■■■■ the left hand side and vice versa.

@Mattb1Stantz

@Dan AKA

The Super Hero pack had no spacers between the mobo and frame during the filming of Ghostbusters.

Are u sure?

Where I can found this refence?

Yes, I am absolutely 100% positive. There is a Super Hero research thread I compiled at the top of this forum, as well as have shared this information on Facebook on my Harsh Hobbies, Inc. page, Ghostbusters: How to Build a Proton Pack page and on Spengler’s 1984 Workbench. I’ve researched this pack and it’s original 1983 configuration significantly, not to be a prat but probably more than anyone.
