I’m trying to model them in fusion 360 but I am not sure whats the best way to do it. I can get most of the grip modeled but when it comes to the each finger part I dont know how to model it accurately like on stefan’s plans.
any suggestions/advice?

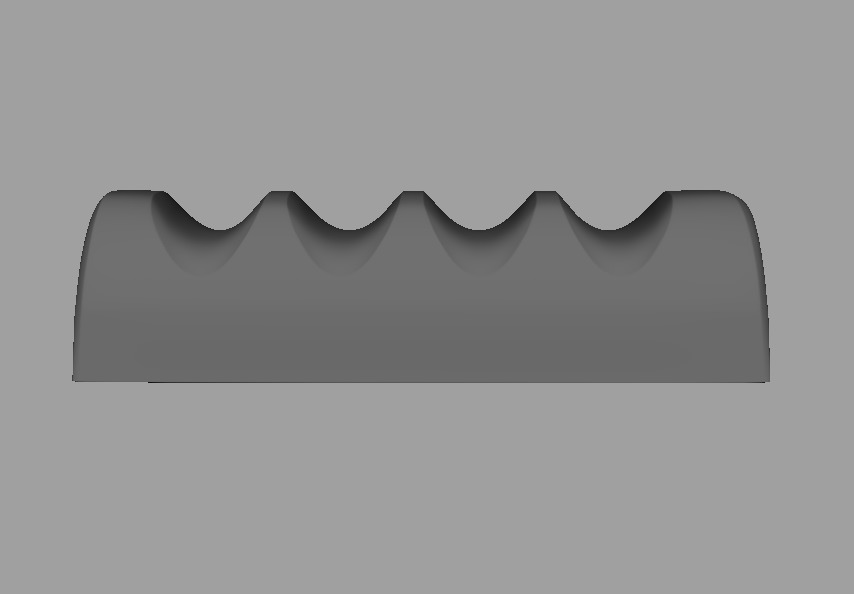

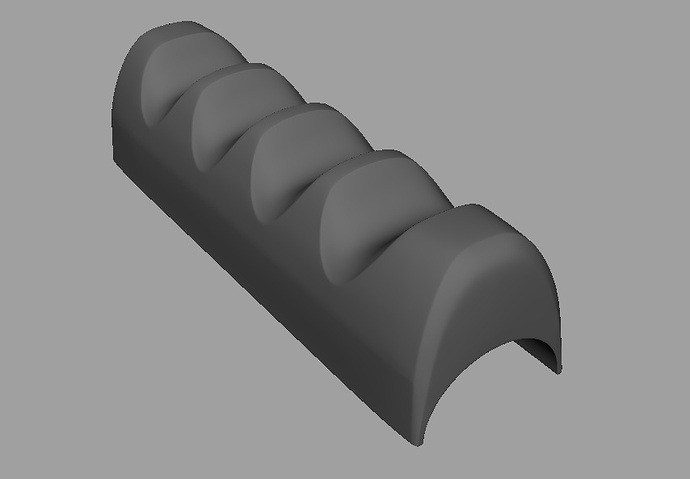

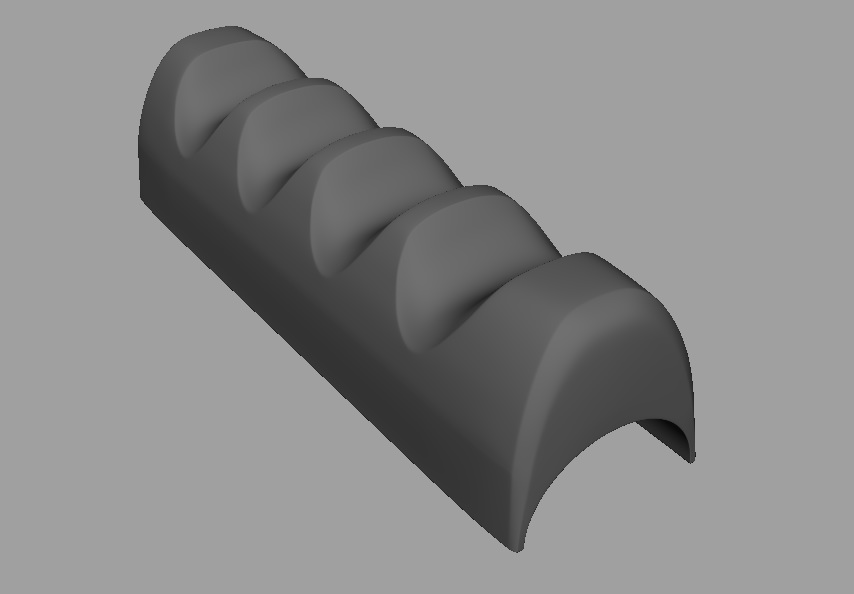

I have not used fusion 360 much, but I ending up with good results on my grips in SketchUp. In general for this type of part, the way to this is to make the handle body without the finger gaps and then create a negative of the grip to subtract from the grip body.
If you are OK using someone else’s design check out Thingiverse - Search Thingiverse hope you can find something to use.
