Mega Deluxe Ghost Trap Build

[grz82]

@adamjarvis post_id=4988845 time=1701403903 user_id=536

Correct. I also tried to put the code for the neopixels on the mega. It needs to go on the neopixel controller. I would start there and see what that fixes. Check all your wires and make sure they are secure. I had a couple that broke loose from all the moving trying to sort out issues.

Here’s what I have. Metro_Mini_NeoPixels sketch loaded to the metro mini, Ghost_Trap_Mega loaded to the Mega. The servos twitch, there’s a little hissing thru the speakers on start and resets. Charging circuit works fine. I get 5v everywhere. Nothing on the neopixels. I’m stumped.

[grz82]

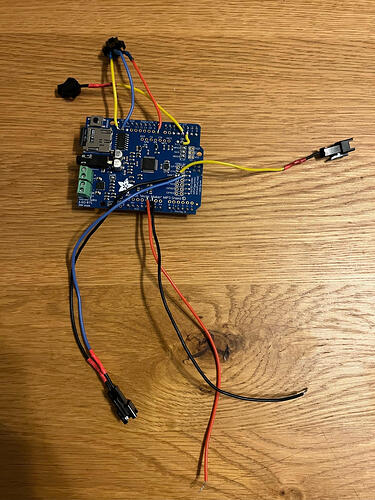

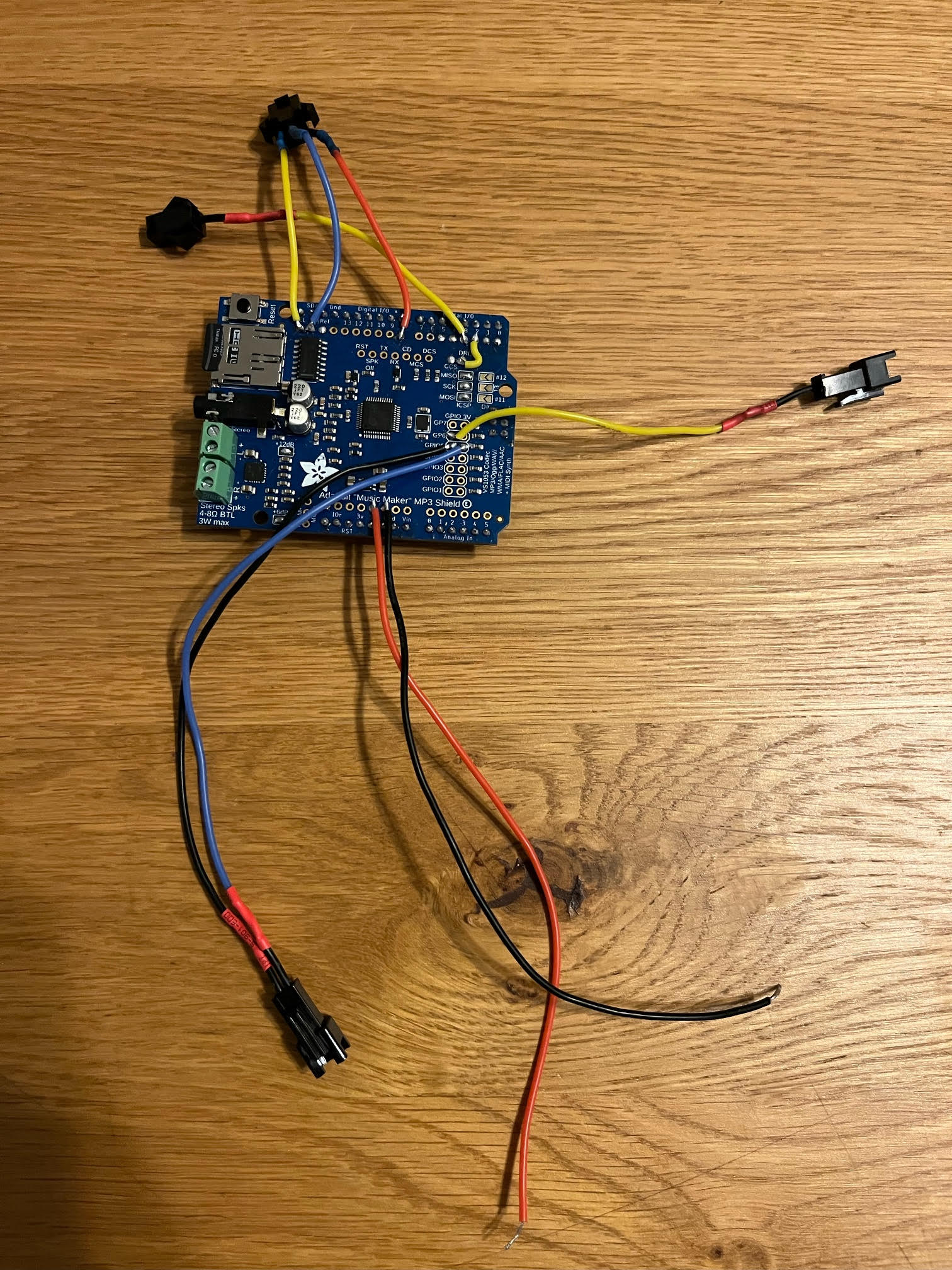

So I decided to hit the reset button and uncomplicate things by completing the CD trap first. It was the right idea… the hissing on the speakers was because I crossed the speaker wires (you can see that in the photo above). I was able to diagnose the bargraph ( loose connection of the yellow wire at the JST connector), and got the servos and the pump working. I’ll assemble this as is and take another stab at the Mega Deluxe mod over Christmas break

[JacqueTheDoor]

@Mark B

I think you pretty much covered it, the details in this thread (and pictures) are very helpful. I finally finished mine and all is working perfectly. I opted to not use the protoshield and just mounted everything directly to the mega and mp3 shield, saved me some space in the trap and gave me a few less failure points (my soldering skills are just average…lol).

Side note, I may end up modifying my trap hose and connectors based on this video: https://www.youtube.com/watch?v=GqohsdSTQrc as I still have some connection issues with the original Charlesworth method…That damn spring inside is hard to isolate and I can’t get it to fit inside the insert that was posted on this thread.

I have returned to the forum for more mods. I had made the rear light fade in and out, modded the hoses like you suggested with Banana pins, very good fit now. I’m not all but done on the pedal LED and like you have only got the original stuff that CD said to use, just wondered how you Modded it and the Code you used? The V3.1? I basically need to know where to wire the black from the foster connector as Pin 5 is currently occupied by the Neopixels

Thanks

[JacqueTheDoor]

@gpstar post_id=4968824 time=1649779779 user_id=58705

Here is a video of the trap pedal with working led to add some life to the pedal. I will post up my code and instructions tomorrow while I clean up a few things with it.

In short, the only thing required will be a 5mm red led, a 180ohm resistor and a new switch to replace the existing one in the pedal, and some minor wiring changes. It adds up just a few dollars $ in parts.

https://www.youtube.com/watch?v=P5palpay0MA

Is this possible with the original CD mega? I’ve got the new pedal switch, wired in the LED and now have the blue and black from the Foster Trigger but not sure where to go from there

[Vadim86]

hey!

Is there a code change needed if replacing the bargraph with a 28 segment bargraph but connecting it in the same way as the small one?

[Worshaw]

@gpstar Have you considered adding vibration to the trap yet. I am looking to do this. Any suggestions on code/setup?

[Worshaw]

@grz82 post_id=4988843 time=1701402422 user_id=78117

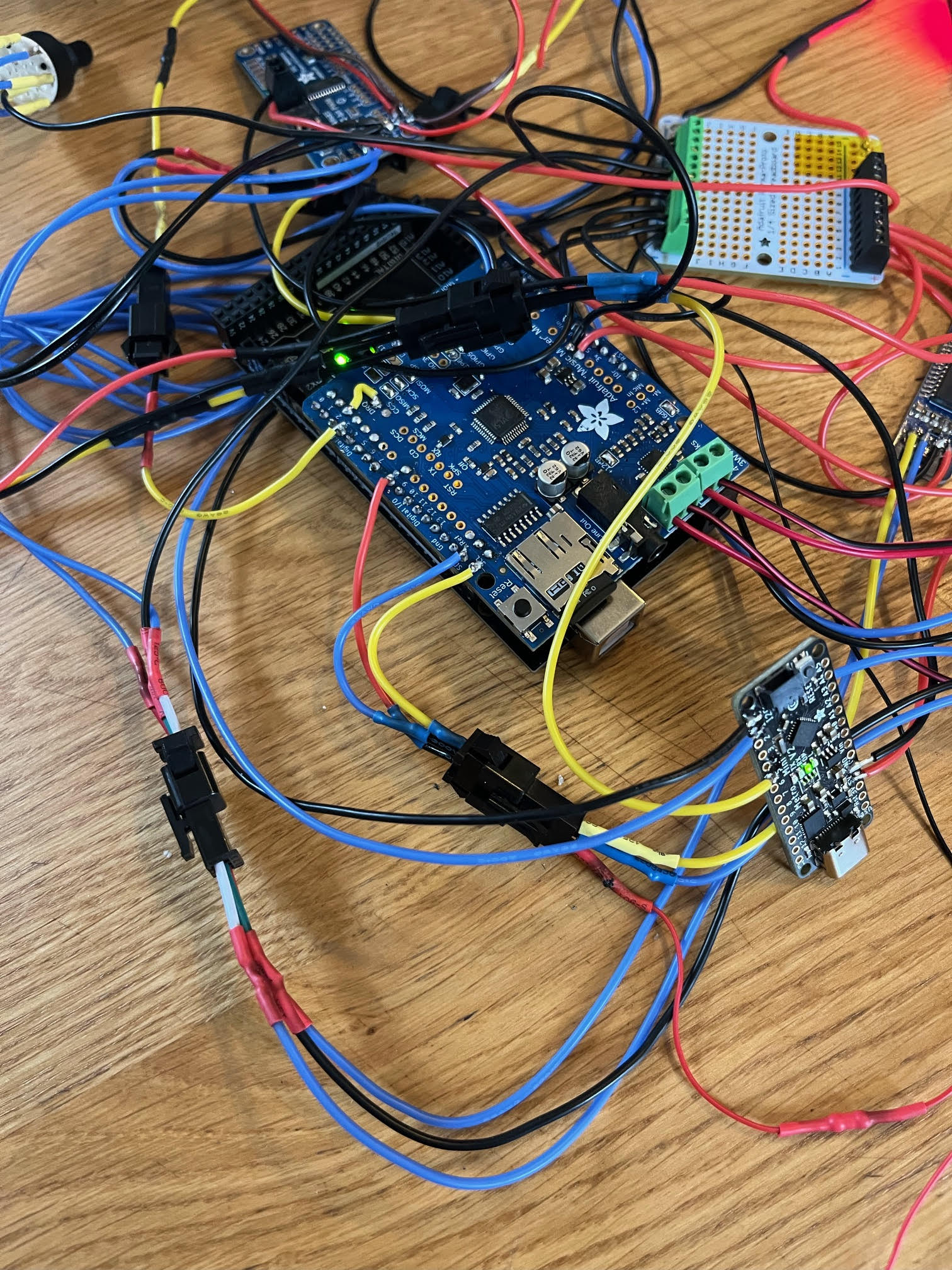

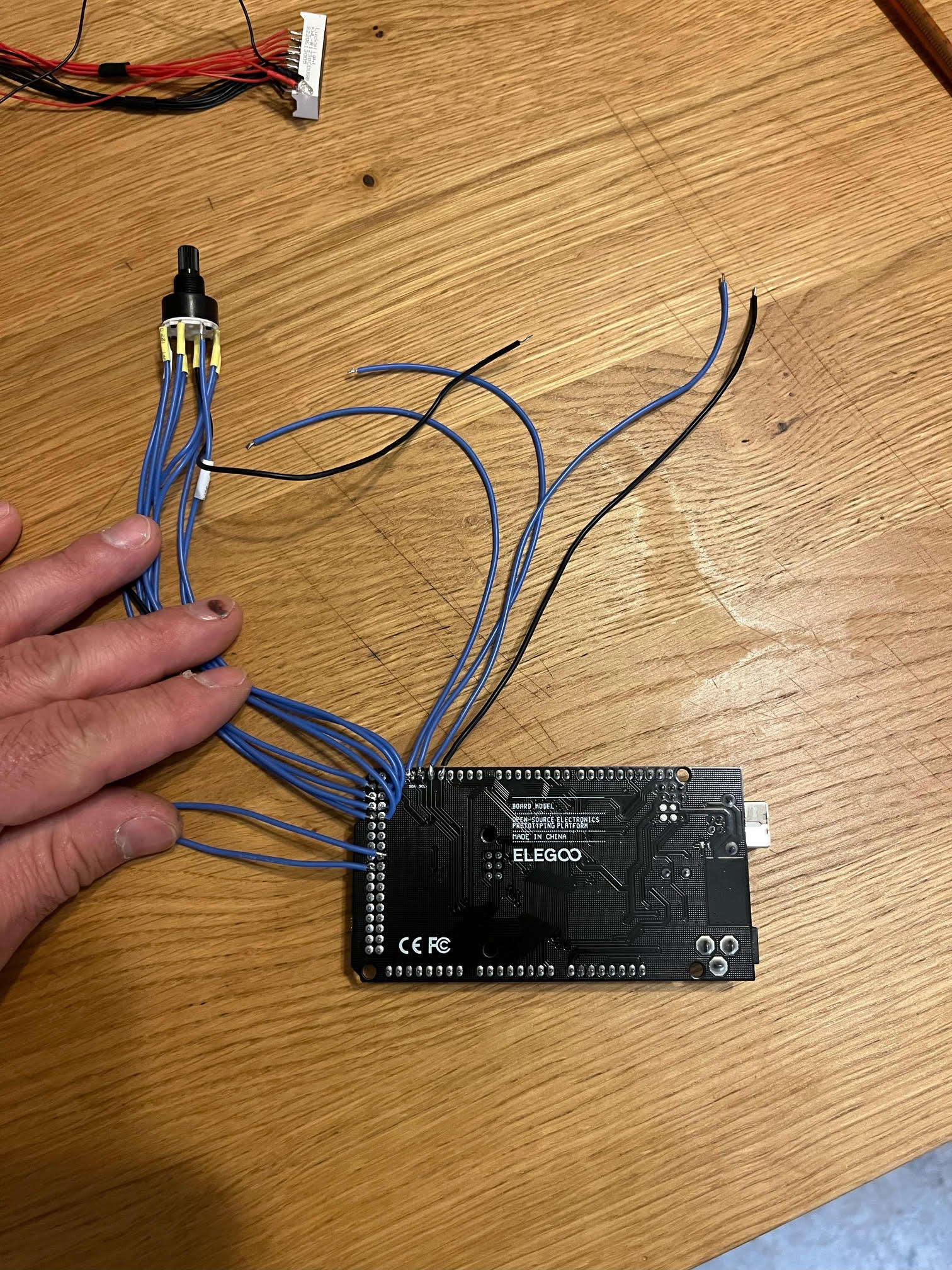

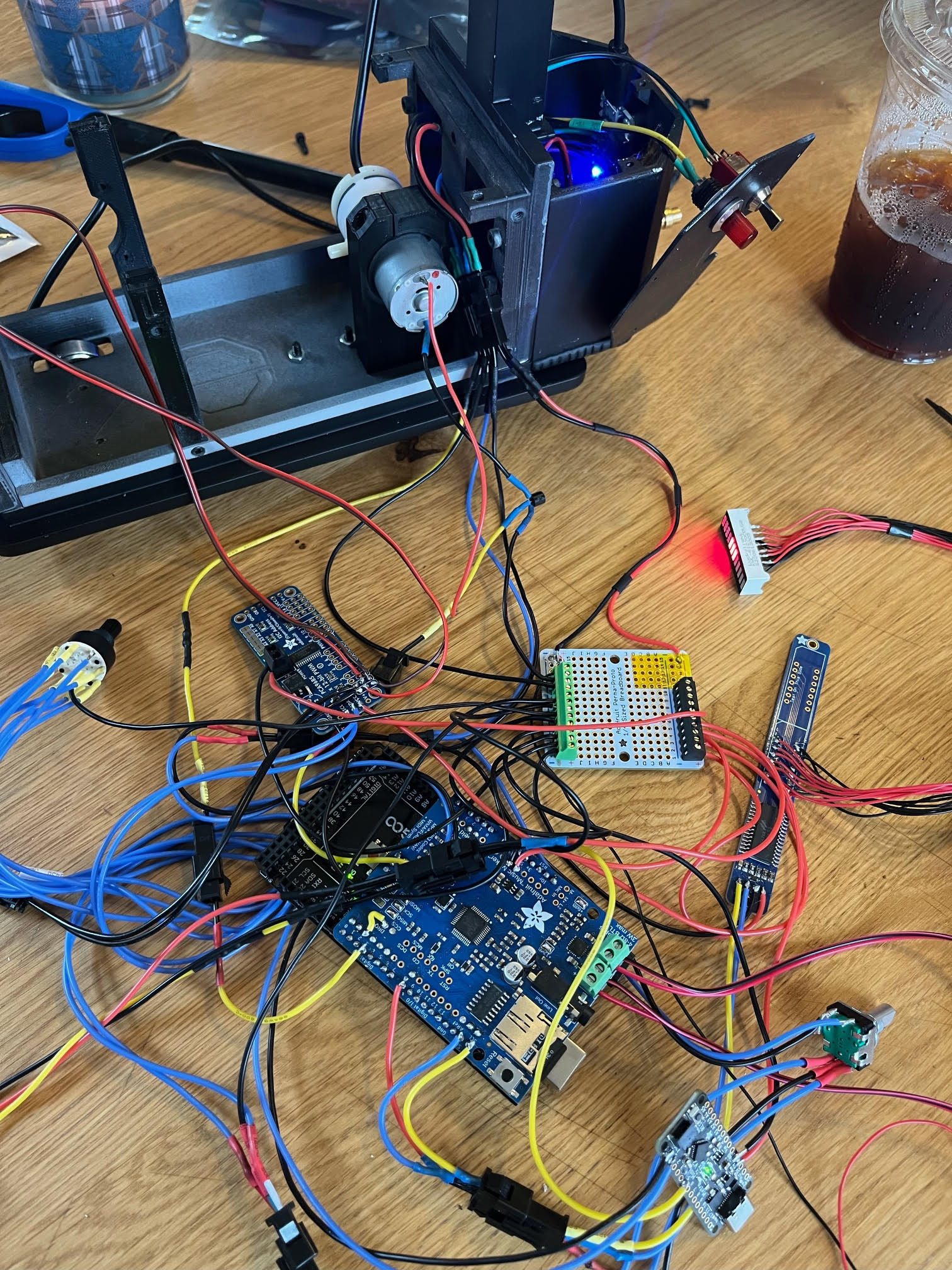

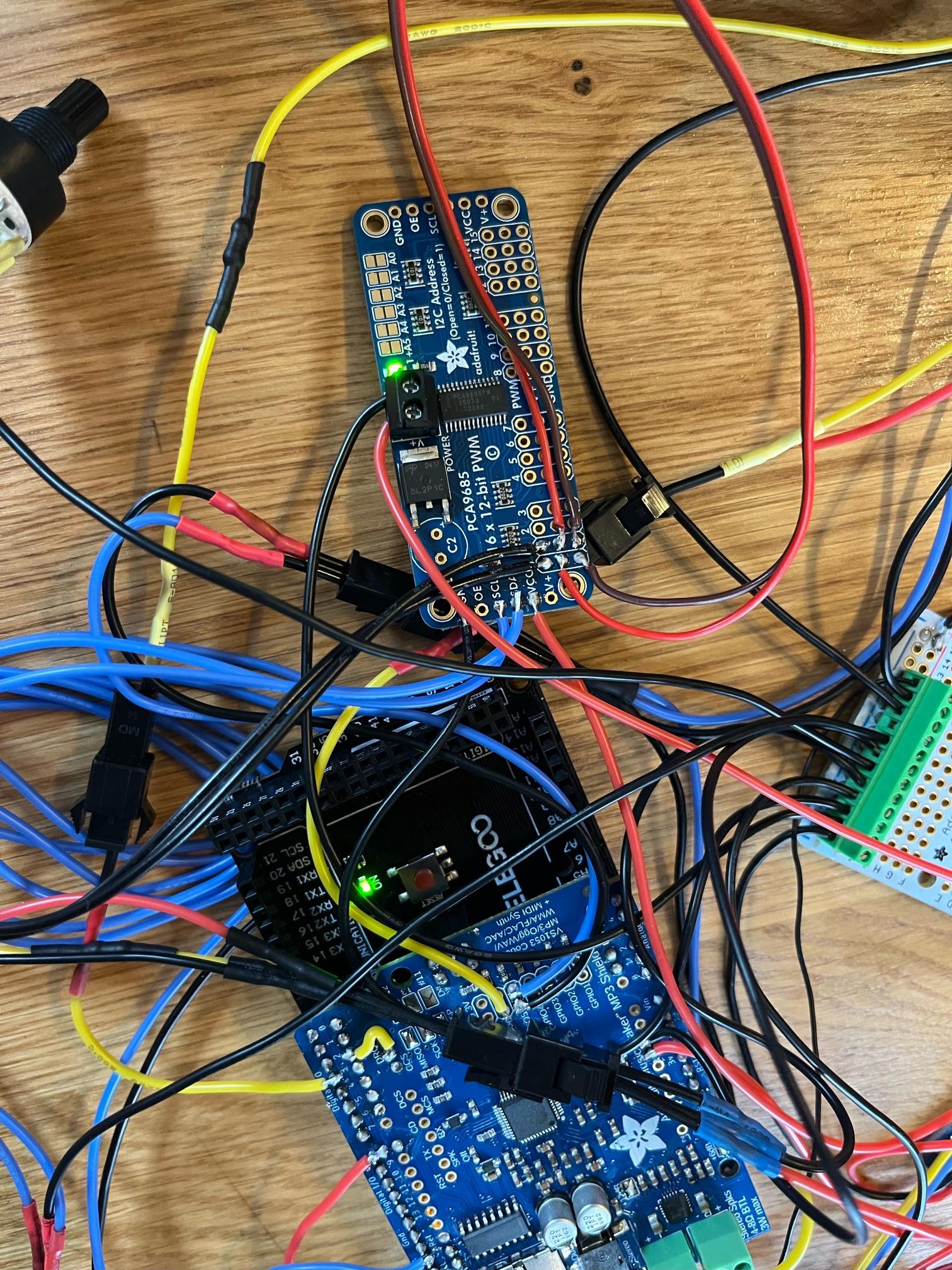

I’ll post some pics tomorrow, about to call it a night. I started troubleshooting so I have some of the wiring removed. I can power the trap from both the usb and the power boost. The servo controller and the other arduino have power. I used a nano in place of a metro mini.

I get the startup audio and the bargraph chasing in red like I’m supposed to. I can get all of the neopixel jewels to glow solid white if i push in the rotary encoder. I had the yellow LED working, now it’s not. The red LED on the rear of the trap works.

I was using ver 2.2 of the code, I’m going with 3.1 tomorrow. I couldn’t find where I saved it, but I found it. Question regarding ver 3.1, I’m assuming I’ll also have to load the code for the neopixels to the nano? That will probably solve the lights if thats the case.

Where did you find version 3.1? I only found links to 2.2.

[scampa123]

@gpstar post_id=4968061 time=1647339967 user_id=58705

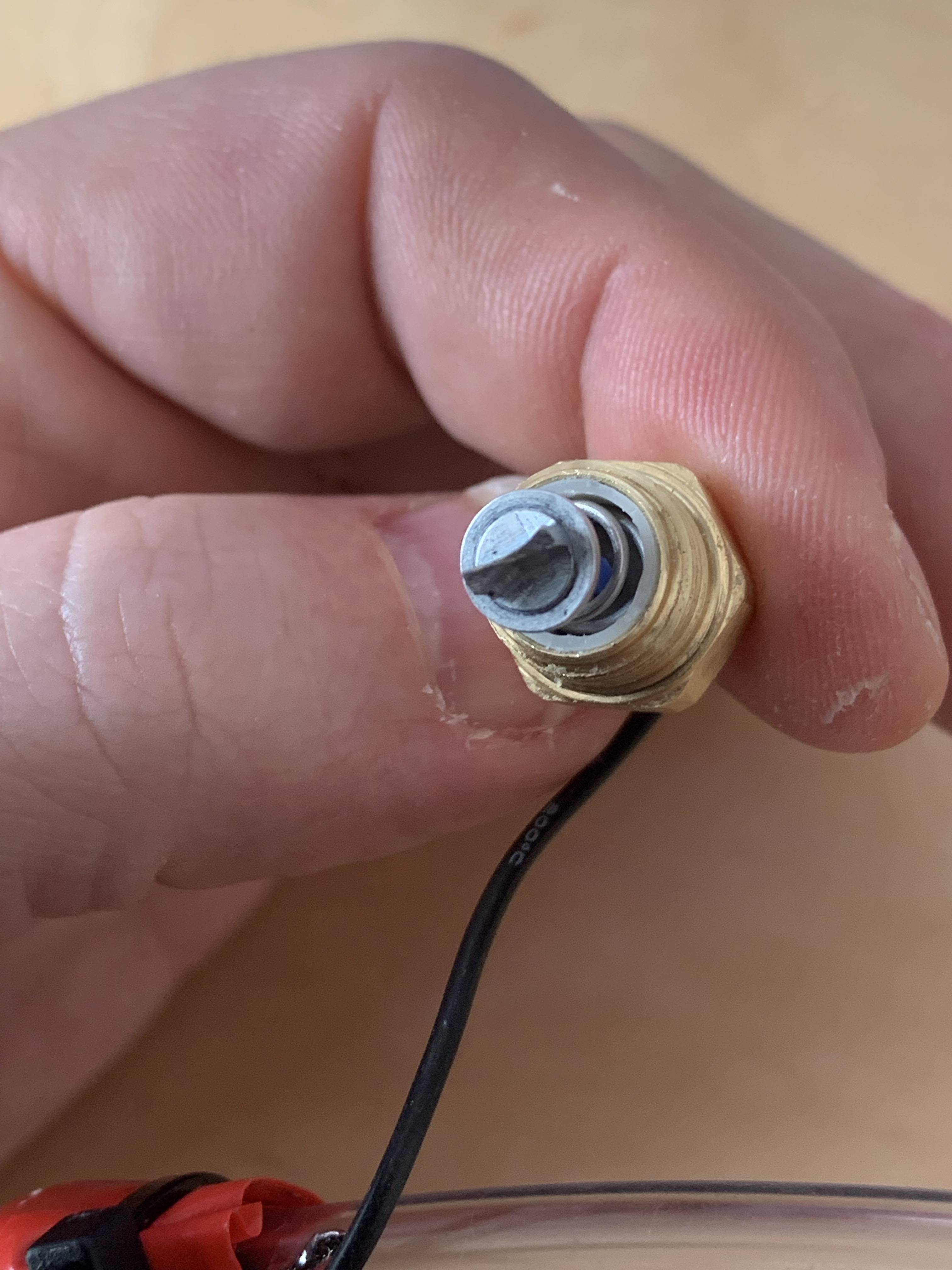

A little update, I have been having trouble with the hose and it shorting the trap causing it to operate due to the spring/plunger inside the female ends of the hose. The original guide says to use electrical tape or heat shrink wrap to isolate the spring from touching the metal connector.

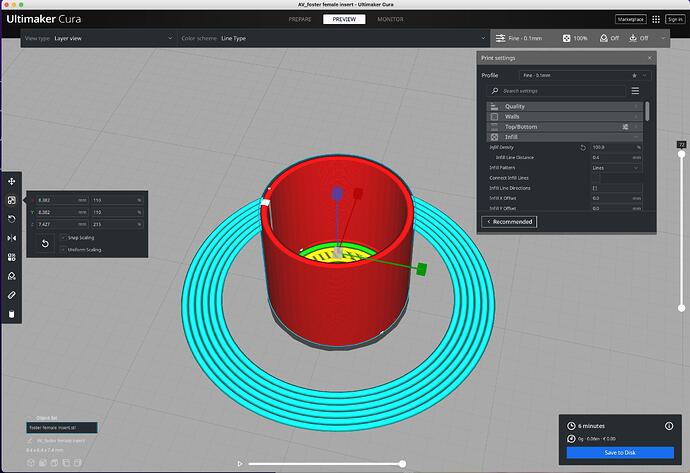

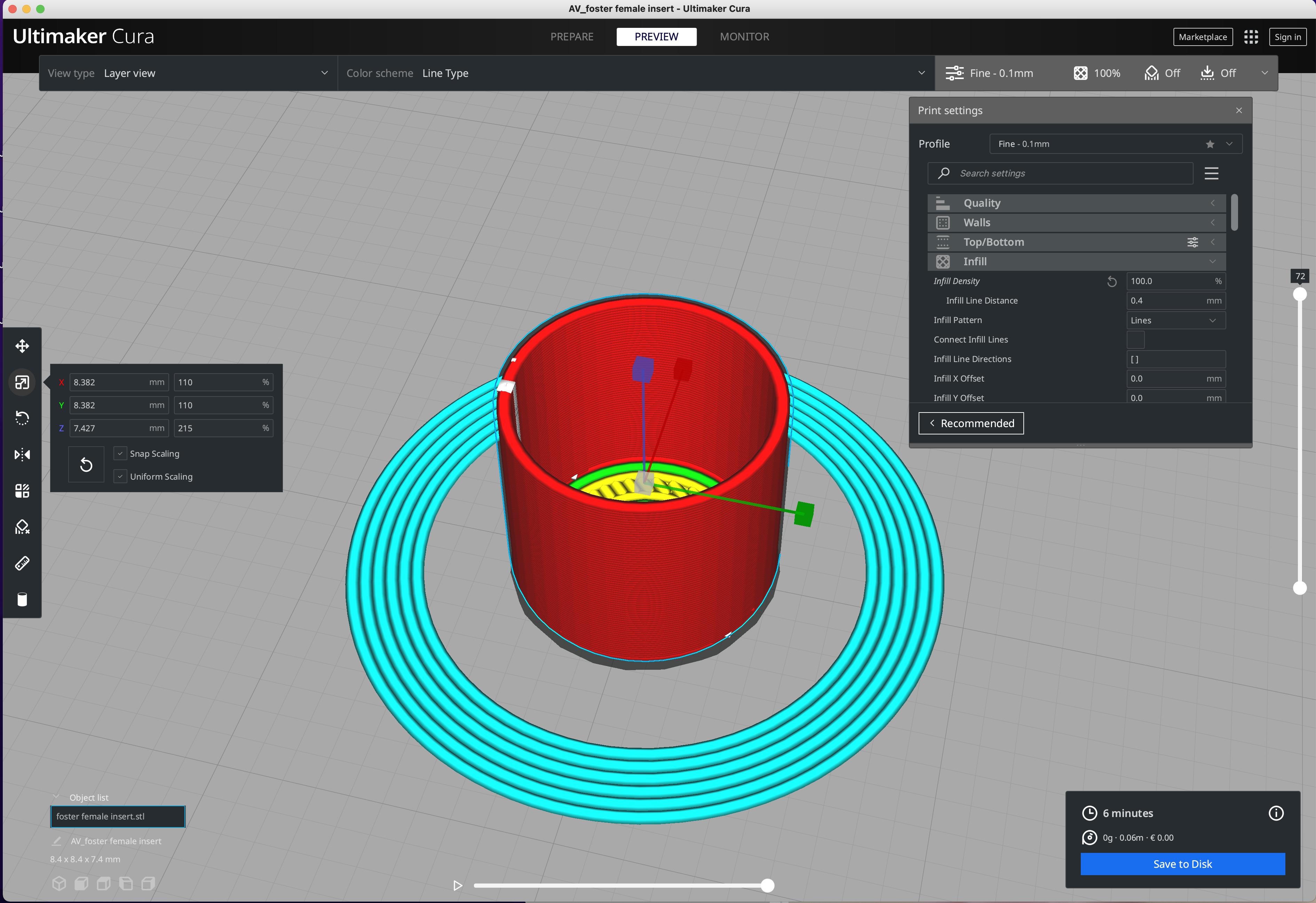

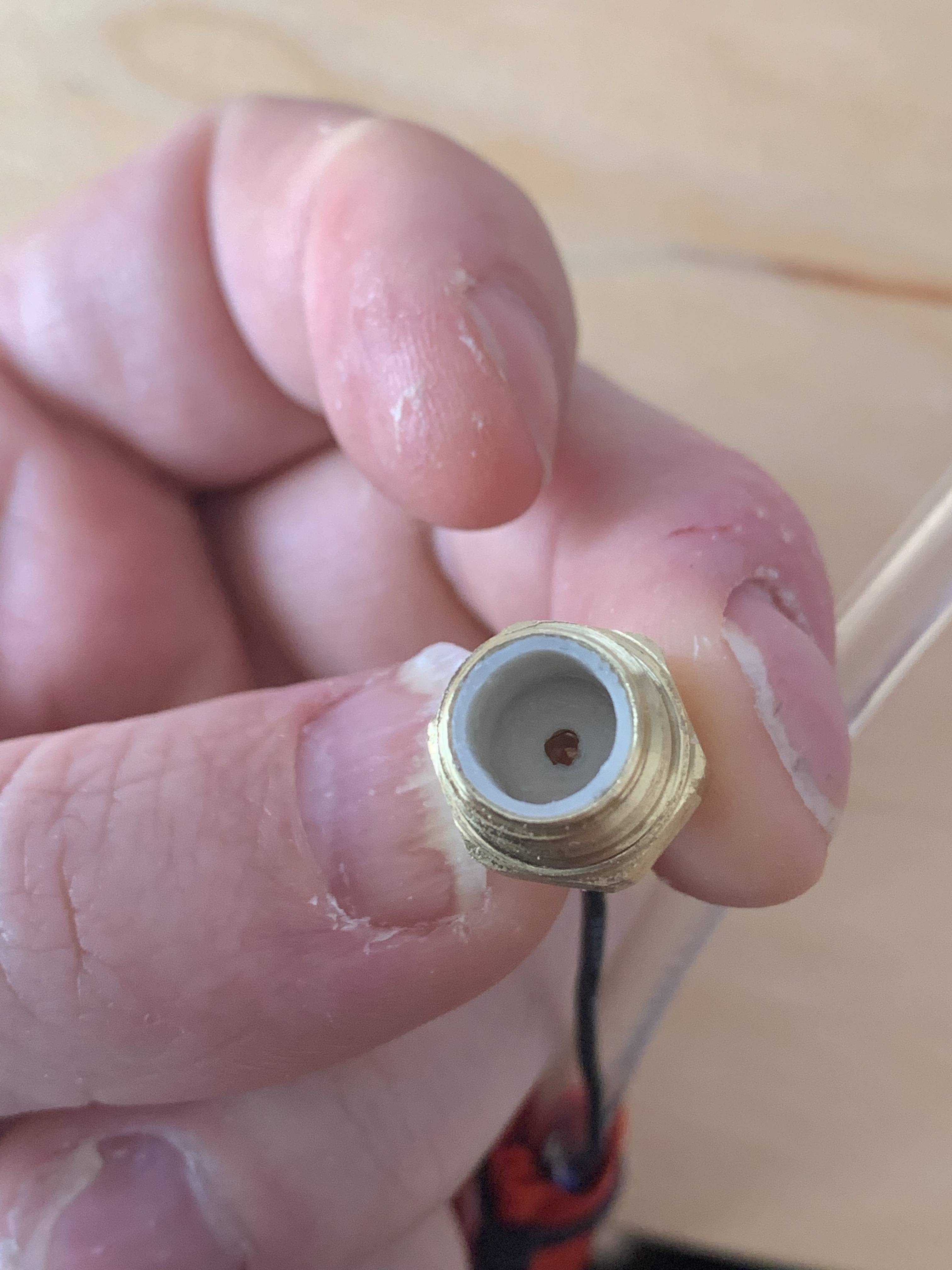

I ended up designing a insert to be 3D printed which fits into the hose connectors to isolate the spring/plunger.

I will link my stl file for those who wish to use it on there builds. I printed mine at 0.1mm and slowed my printing speed by half, as the walls are very thin. You may have to slightly sand/trim the bottom edges to make it fit.

https://drive.google.com/file/d/1MEvOdNLXeIzm-s99_m_j1ebY8fIlhXDI/view?usp=sharing

Next I am going to redo most of the code and remove the delays and use the millisecond library instead to make the trap more responsive like I did for the end captured sequence for the red led. I am going to think about implementing the rotary encoder switch to control perhaps the volume, and maybe think about adding another rotary encoder switch to the black knob on the other side of the trap to perhaps adjust the modes (84 mode, 2016 mode, etc).

I cannot wait to print this file. I’ve been struggling with the cable ends and tape. Thank you for sharing

[kevincoxphoto]

Having issues getting the smoke to travel through the pump. The pump is able to activate the vape and I can see smoke entering the tube, but nothing goes through the air pump. I am putting 100% glycerine in the vape and I am starting to think that’s too thick.

[kevincoxphoto]

Did adding the air pump to a box quiet it down? I found the foam in a box did not make a difference until I blocked the holes in the box. So maybe the hose will block the hole and the noise inside the pump box.

[kevincoxphoto]

@gpstar post_id=4968846 time=1649841887 user_id=58705

So here are the instructions of what I did:

Pedal side:

On the other side of the pedal, you will need a 5mm RED led with specs between 1.8v-2.2V (most are like this)

The code for function checkRemote() calls for:

pinMode(pedalLED, INPUT_PULLUP);

digitalWrite(pedalLED, LOW);

This works without the hose if I test directly on the trap pedal, but for some reason the hose is causing issues. I have tested with a multimeter and the hose is not shorting out, but it’s definately when I use the hose that the problem occurs. There is a loss of 0.2 ohms on each wire in the hose and I am assuming this natural resistance is the cause of my problems.

[Sceadurich]

@gpstar post_id=4968423 time=1648638779 user_id=58705

Alright, here is the end product:

https://www.youtube.com/watch?v=ASfM36EGpUY

This build looks amazing and i am just starting to wire up my trap but want to make the changes you have done. Is there a wiring diagram anywhere for the mods you have done?
