Moded Spirit Goggles

Equipment Ecto Goggles
1

Modded the Spirit goggles to look more like the real ones. I used button snaps from Amazon, knobs from gbfans shop, sticker set from Independent1Trading on etsy, and sewed my own strap mounts. (Not very well though)

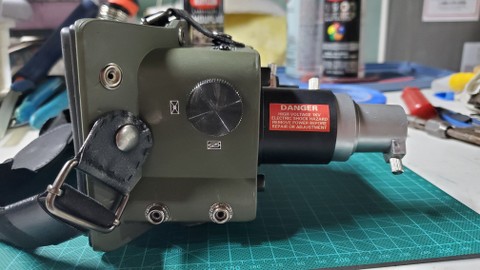

imageRight side

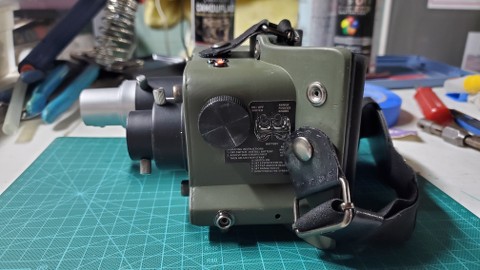

imageLeft side

I cut a piece of aluminum to make the lens screw bracket.(Front left lens) Couldn’t find longer thumb screws but close enough.

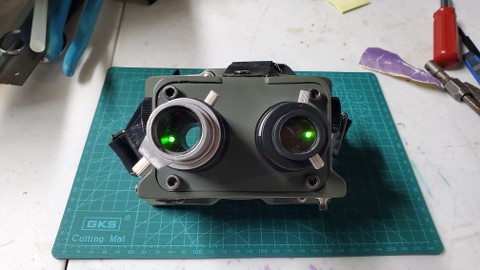

imageFront

I replaced the green led in the lens and added one to the other lens. Dimmed them down so I didn’t go blind. I used plastic card and filler to make the raised ring on the front.

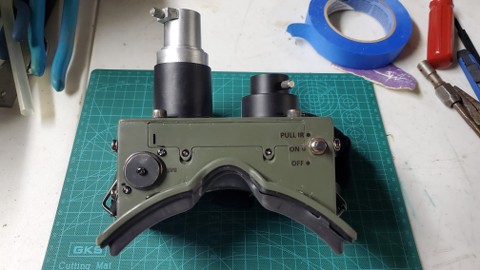

imageBottom

I built a different battery door(the round one) to look more realistic and used a mini push button for the switch. Might mod this to look like the real push/pull switch later.

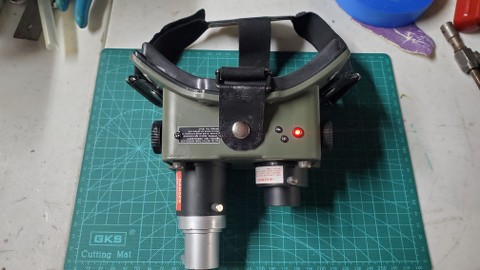

Top

Added a flashing led for effect and to indicate power.

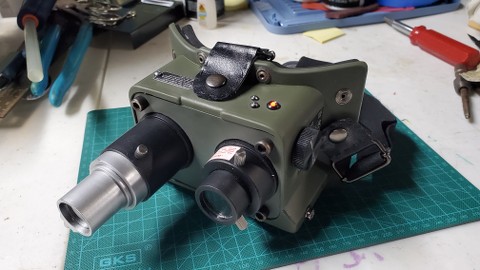

imageRight

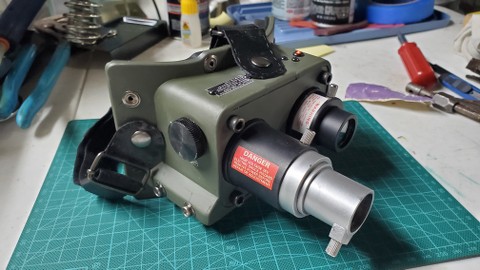

imageLeft

2

Wow!! Great job. I love what you’ve done.

3

Wow, very nicely done! :love:

Where did you find the thumb screws for the lens’? :blush:

4

Ebay. I believe they were 4mx8. Just looked and you can get them on Amazon. Search for Toolless Thumb Screws.

5


Finally got around to designing and printing the pull knob. Finally finished the goggles. It’s bigger than I wanted but had to work with the switch I installed.

6

I made a 3d model for printing based off of the actual knob used if you want to use it.

https://www.thingiverse.com/thing:3252213

7

Nice. I’ll see if I can make it work with my switch. Thanks.
