Scratch Pack from New Member (update 9-16-08)

Equipment Proton Packs
1

Hey guys, been a lurker for about 2 years…yes you heard it right.

I built my first pack from scratch in 2006 BASED on everyone’s posts and suggestions. I finished the first one in approx. 2 weeks and promptly sold it on ebay for 650.00 and that was without a gun.

I decided to build another pack (this one im keeping) so here it is…so far.. I’ll keep the pics updated as i continue working… BTW this is about 6 hours of work thus far.

ALSO..no one needs to tell me how inaccurate this is because i know. I will be wearing this pack for about 10-12 parties/contests in the next 2 months. So i know i will acquire some damage…plus normal people dont know what details go where…

This pack will be built for about 150.00 total

ENJOY

image600×800 54.4 KB

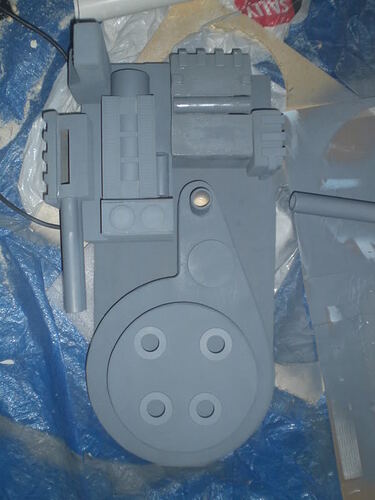

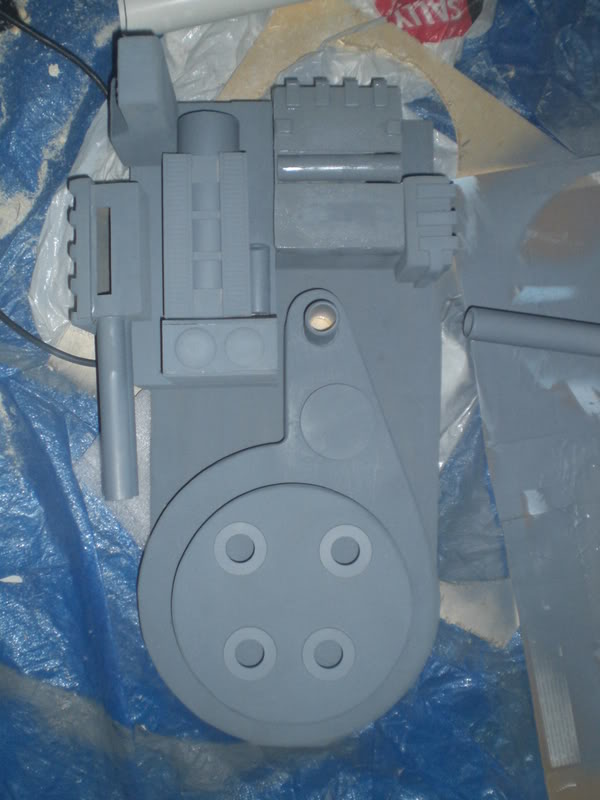

Completely built form Basswood… MOB is 1/4 " Ply oh and some pvc

image800×600 39.1 KB

More Basswood and PVC.. I predrilled all of the holes for a custom built LED kit

2

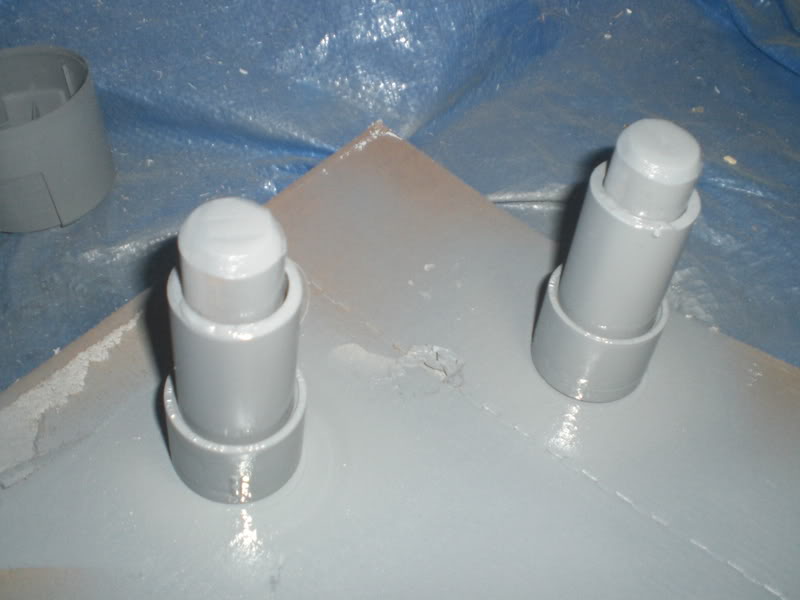

Custom built CLippard valves…from PVC and Wood Dowels…about 75 cents worth of materials

image800×600 38 KB

3

looking pretty good man…especially for six hours worth of work…crazy.

jim

4

Gotta give credit to the scratchbuilders, nice work. Feels good doesn’t it ! :cool:

5

Excellent job so far. I can’t wait to see the finished product!

6

update:

Cheap way to add lenses to your cylotron…total cost…free if you have a spare cd case and a red marker

items needed:

1 cd case

1 knife

1 red marker

glue

image320×240 12.1 KB

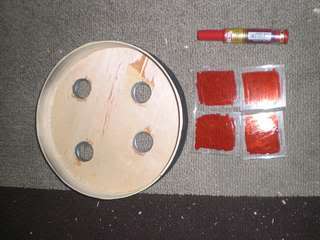

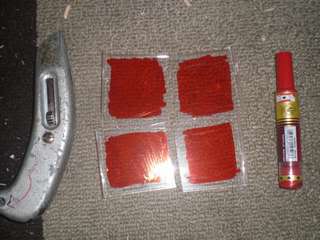

cut one half of the cd case into 4 parts and color each panel with the marker

image320×240 9.95 KB

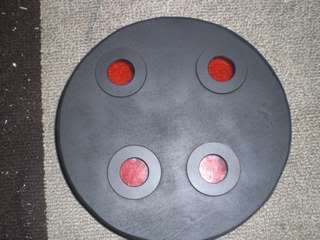

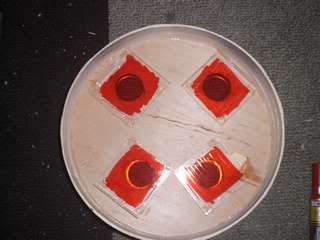

glue them into backside of cyclotron!!! …enjoy…

image320×240 9.44 KB

image320×240 10.2 KB

7

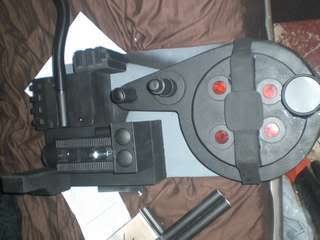

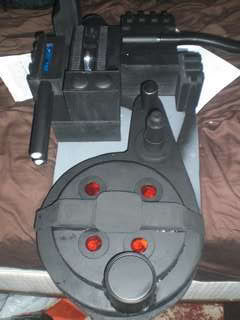

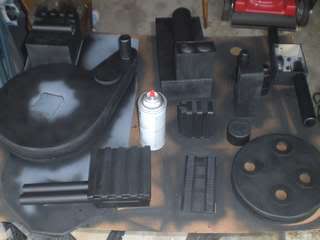

new pics 9-16-08…progress

image320×240 8.08 KB

image240×320 13.3 KB

image320×240 10.3 KB

8

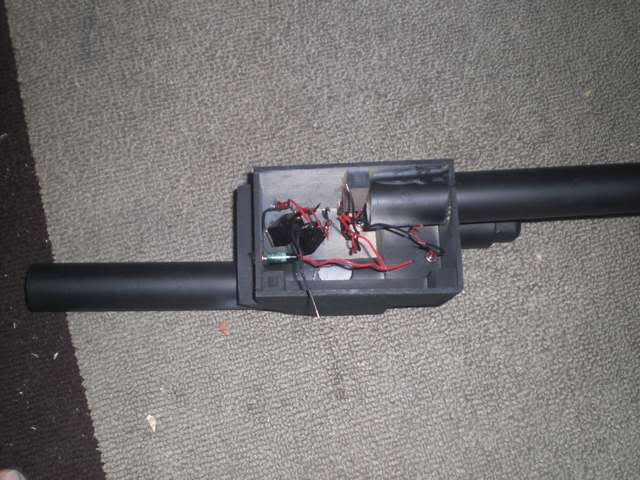

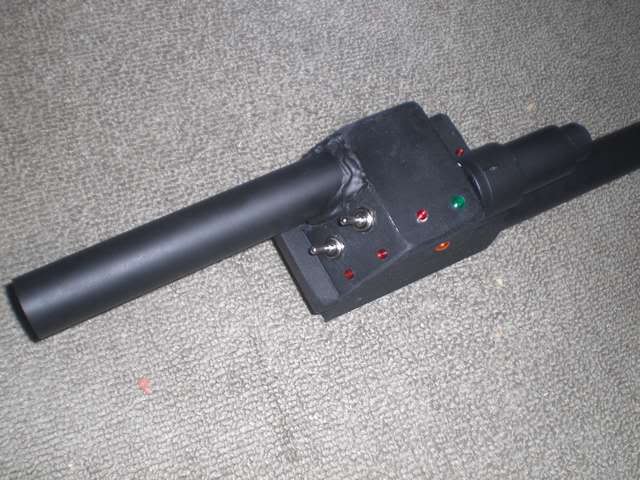

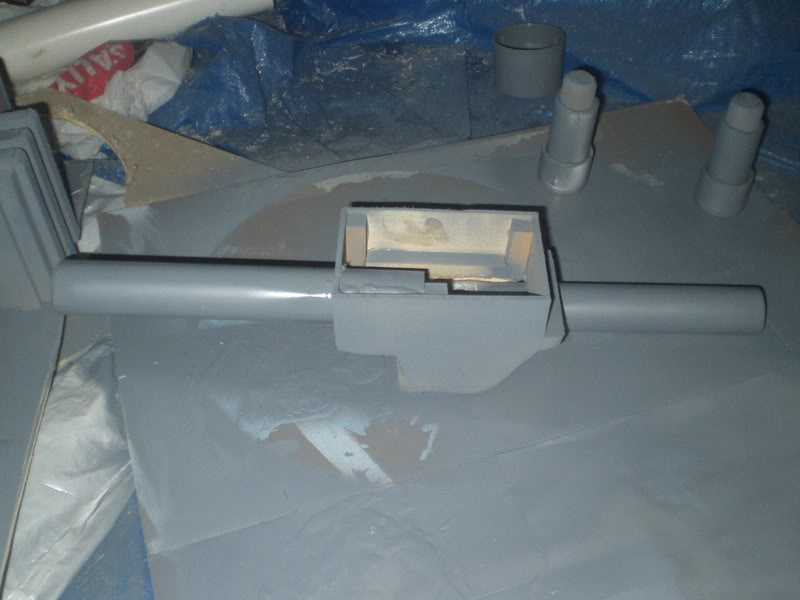

from scratch wand…working on wiring…still haven’t added all the extra do dads

image640×480 46 KB

image640×480 43.3 KB

9

I LOVE this! I have some extra CD cases I needed to throw out, so this will work perfectly! I’m working on a scratch build too. Thanks for this post. :cool:

You could also use this method for the power cell lens with a blue marker.
