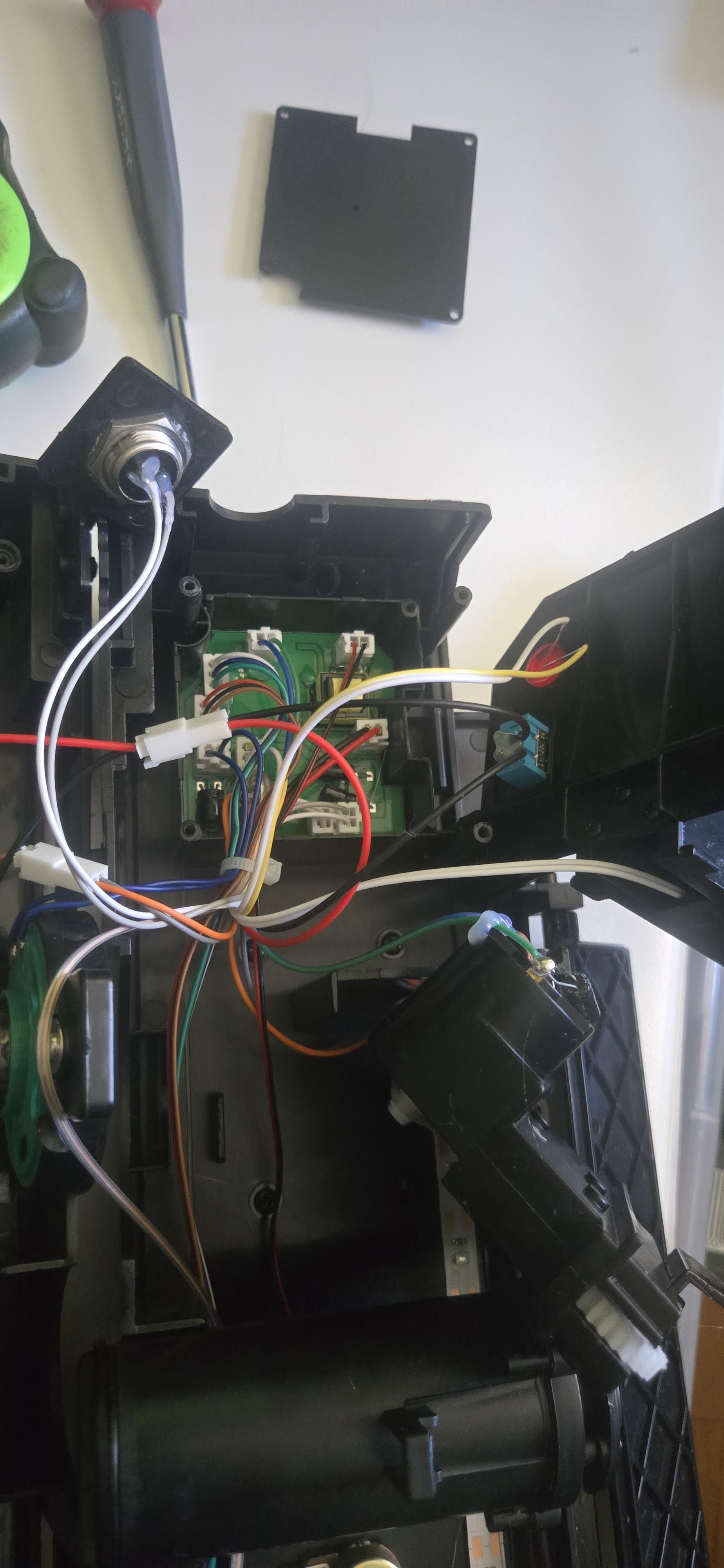

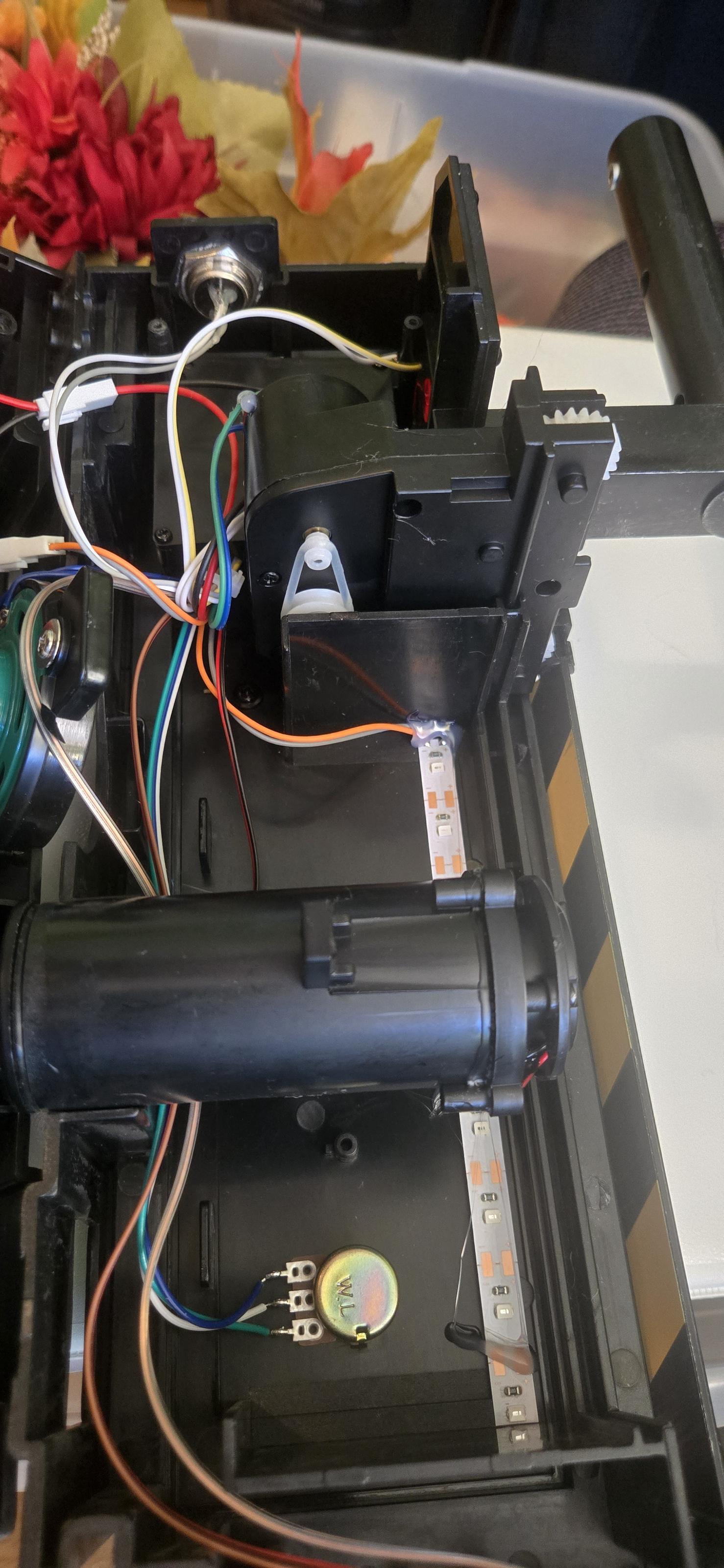

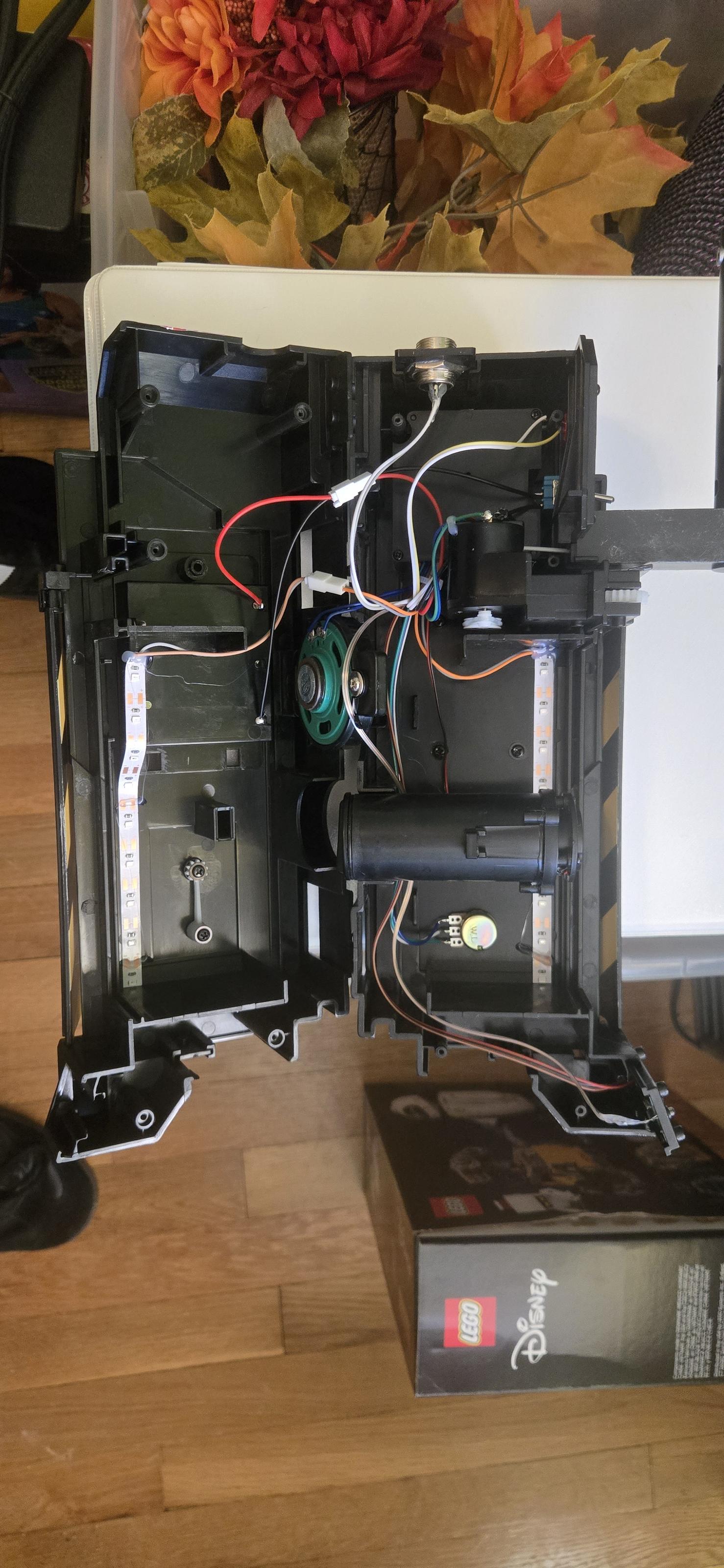

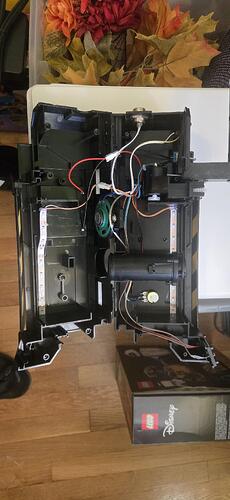

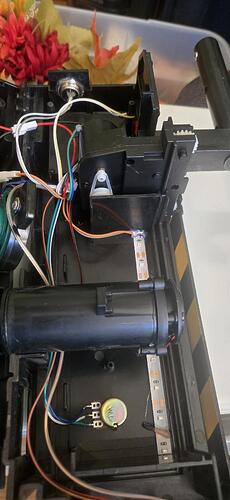

Haven’t seen a tear down of this trap yet, I was curious on the innards.
Wee bit different than the other spirits / Walmart traps.
Completely redesigned gearbox, I’m not to keen on the belt drive though.
Same idea, split shell. But easy to add / upgrade as its very modular and lots of space.
Cool pics!
I tore one down not long after it came out and reverse-engineered the electronics as much as I could.
You can see another teardown (with the reverse engineering results) here for free: https://www.patreon.com/posts/spirit-deluxe-129117827
Oh good. I didn’t see anything on here and google didn’t find yours so good. Ill delete this if possible.
Nah, I think it’s important to keep it up; I don’t think that teardown got posted to GBFans yet so your pics plus the replies are still immensely helpful!
