Hello All,
I really like how the MT-500 walkie talkie board has come together. It is much better than I could have done without your help. The sound module is now crammed with 228 sound samples organized into over 100 phrases, and there are some fun interactive capabilities.
List of the quotes that are included: https://www.onlinefilefolder.com/2sGlPAo3hu2lgX
Sound Module Operating instructions PDF file: https://www.onlinefilefolder.com/2sTT90XZC6mD0W
MT500 teardown and sound module installation instructions PDF file: https://www.onlinefilefolder.com/2sbPqraEYPhyTO

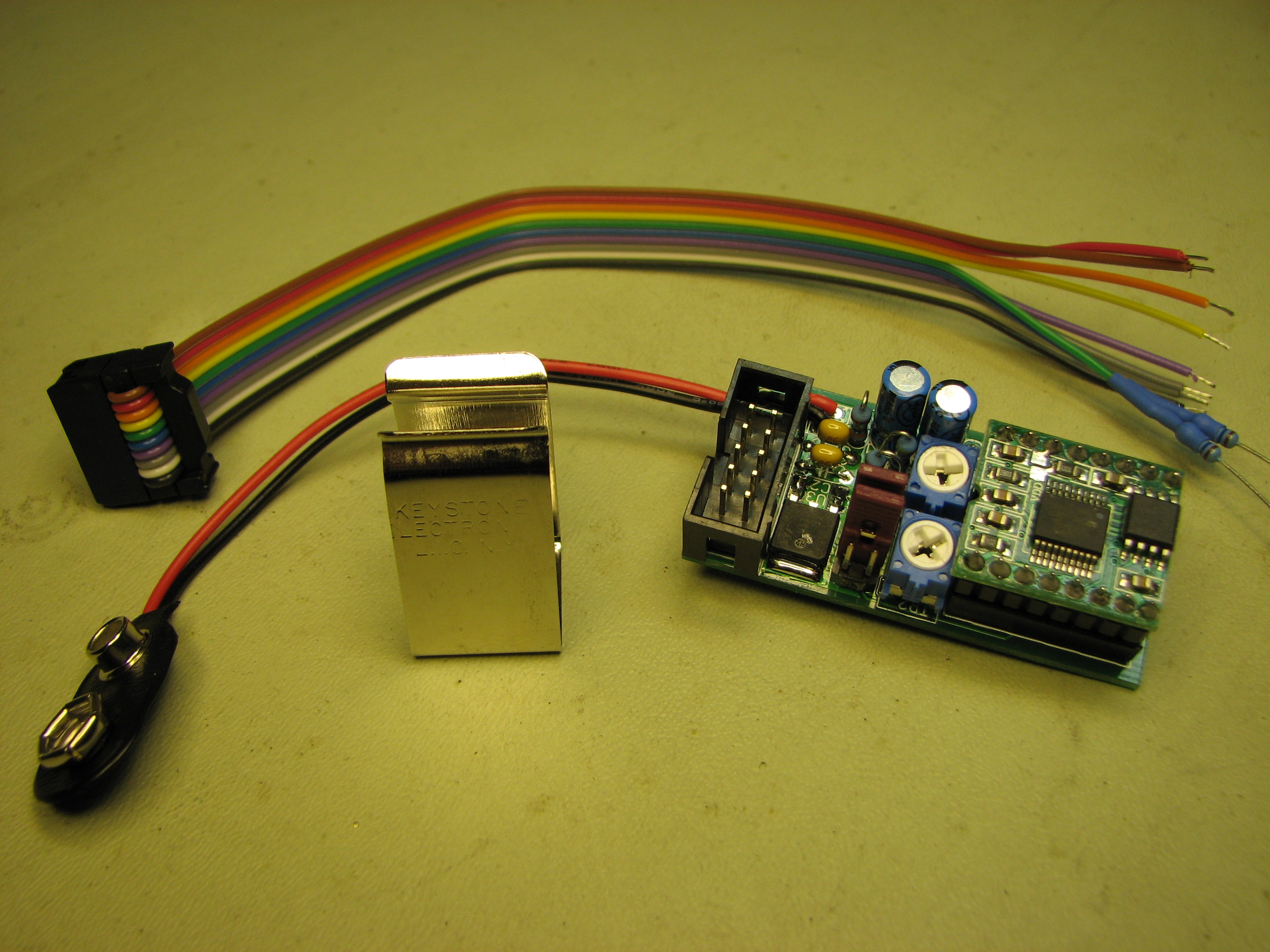

This is what is included:
Yes, even the ribbon cable is stripped for you! Everything has to be tested and this is the easiest way to make sure the entire ribbon cable assembly is working perfectly before I send one out to you.

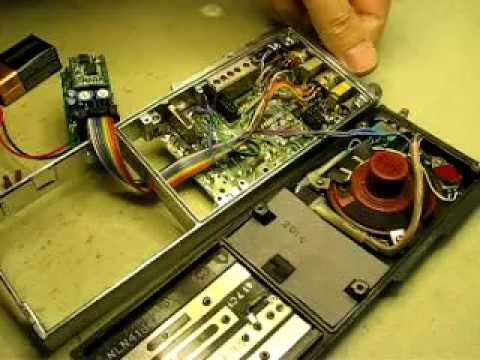

This is what it looks like installed. Just remove the battery cover and you will see:
Radios
…A…B…C…D…E…F
Movie Accurate Plastic Holsters (hard to find in good condition!), they have been know to become brittle and break, though I have flexed them somewhat and there are no cracks. They have detachable D-hook attachment belt loops.
Why is it movie accurate: Radio Holsters or: How Your Entire Life Has Been a Lie - Uniforms - GBFans.com
*** out of stock ***
Leather Holsters:
*** out of stock ***
Antennas:
Across the top of the image are the replica antennas, and the rest are of different antennas one of which will be randomly picked and included with your radio if you do not purchase the replica antenna.
Display Stand (non-functional Charger):
…J…K…L
Pricing:
- Walkie Talkie Sound Module Bundle (Assembled and tested board, cable and a 9V battery clip), $49 *** out of stock ***
Motorola MT-500 Radio (3 rotary Switch) + Installed and tested Sound Module Bundle, with the Movie Replica Antenna (only with purchase of Radio), $129
Motorola Desk Charger (great for displaying the MT-500, only with the purchase of a radio), $29
USA Shipping charges:
- $5 for a Sound Module Bundle
$14 for a converted Radio
International Shipping - PM me with what you are interested in and I will give you a quote.
USPS First Class International package cost varies by destination and is frequently updated.
Notes:
A noise burst is always added at the start of each person’s quote in all Radio Chatter Sequences. Movie quotes (other than Radio Chatter) do not have a noise burst added.

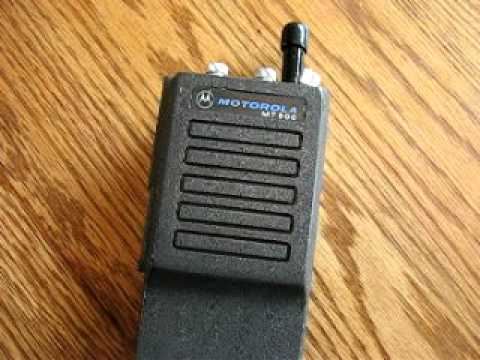

Here is a video of the Main operation:

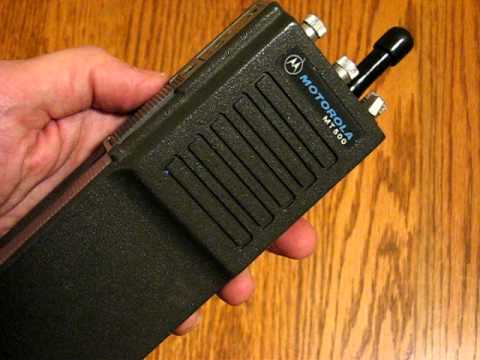

And here is a video of the Interactive and always-available selections:
Here is a video of the “Extra Static” version:
Here is what the current design has:
-
- batteries and sound board fit in the battery compartment of the MT500
- A multi-color ribbon cable for multiple connections to MT-500 controls
*** Power switch
*** Talk Switch
*** Selection of sounds from one of two sources; the rotary frequency selection switch which is not on all MT-500s and the module’s jumper block, so even without the rotary switch on the radio you can still select what sounds will be used.
In the MT500 you will have to solder wires to the walkie talkie’s switch(es) and speaker for proper operation.
-
A sound module crammed with 228 sound samples organized into over 100 phrases.
-
a potentiometer to adjust the volume
-
a potentiometer to adjust the delay between samples playing
-
a jumper block to select between different modes of operation
Here are the more interactive actions:
-
If you press the talk button for less than 1 second, it will automatically start the next quote when you release it.
If you hold down the talk button for 1-3 seconds you get to step through a set sequence of responses from all 4 Ghostbusters If you hold down the talk button for 3-5 seconds you get the Ghostbusters commercial from GB1 If you hold down the talk button for over 5 seconds the entire Walkie talkie sequence from GB1 will play
Here are the different modes that can be selected by the MT-500’s frequency selector or module’s jumpers:
-
-
Only samples from GB1 movie (quotes and radio chatter)
-
Only samples from GB2 movie (quotes and radio chatter)
-
Only radio chatter from TVG, GB1 and GB2
-
All quotes and all radio chatter
-
An additional jumper on the board will select between sequential and random order playback of the selected samples.
Testing the installed board in the MT-500 after you finish wiring in the module:
