SH trap "mods"

Equipment Ghost Traps
41

I 3d printed most of it. I can give links to other parts I used as well.

My trap isnt controlled via pedal…yet.

42

All of this is excellent work. I love it. I am going to build a pedal for my traps as well. I don’t plan on putting servos in any time soon. Just something to hang off the belt. I already have a matty trap so I’m happy with that

43

That would be awesome. Maybe on Thingaverse? Is the pedal 3d printed?

44

I already had the ribbon cable in a box of junk, and I got the tubes from the GBF store. hardware came from Home Depot

45

Sweet thanks for the 3d stuff. Keep up the awesome stuff.

46

Here is my complete trap holder 3d files. also has a spacer to use for the SH trap

47

How long did it take to print??

48

total time with my settings were 11 hours

49

Thanks.. let me bug you with two more questions? How is the connector attached to the trap? 2nd the round parts. Are they just decorative or are they functional??

50

3d printed v hook on trap. i have 4 real ones on there, the rest are just printed rivets

51

This looks fantastic! Awesome work. You’ve inspired me to upgrade the Spirit trap I picked up yesterday.

While I’m not ambitious enough to open it up and make modifications to the internals, I’m thinking I’ll at least paint it and add some other external details like the plate around the bar graph and the smaller side plate around the knob.

Can I ask what paint you used for the side plates? I’d like to get mine to look like metal without making them shiny.

52

So I’ve gotten my Foster connectors in and I’m looking at the back of that trap and wondering how well it will really be able to handle plugging in and unplugging a hose from one of these all the time.

Zander Yurami, how has yours held up plugging in and unplugging your hose? Did you reinforce anything around the plug that you put in the back of the trap?

53

I mean the female half of the V hook how is it attached to the trap…

54

I didn’t even think about that. Glad I didn’t try it, yet.

55

All I did was apply some super glue to the threads before screwing it in. So far it has held up great

56

2 screws and some super glue

57

Got it.. thanks..

58

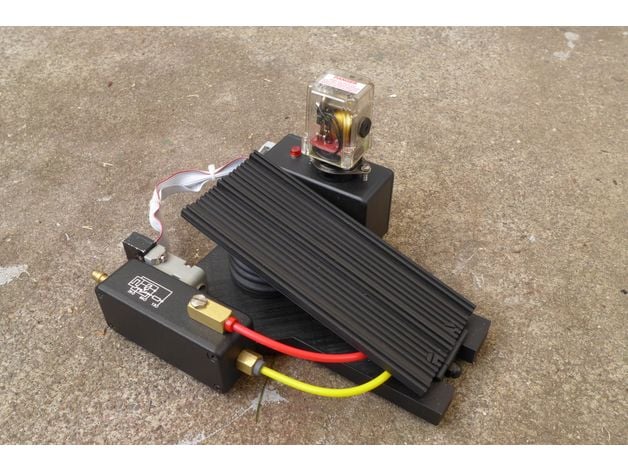

Hey! The 3D pedal and trap parts are my design that you can fully 3D print and/or add as much real hardware as you like.

Files can be found here: https://www.thingiverse.com/thing:1394492

Fully illustrated build guides can be found on my site: https://bit.ly/3D_Kit_Instructions

There’s a pretty big thread you can check out as well: http://www.gbfans.com/forum/viewtopic.php?f=3&t=41004

Also, if you are looking to mod the Spirit trap, WindDrake did some mods based off my parts: https://www.thingiverse.com/thing:3082663

And since the ‘metal’ side panels are molded in I think Adam’s metal tape technique may work well to jazz them up:

https://www.tested.com/art/makers/565443-adam-savages-one-day-builds-hellboy-sword/

Sean

59

Also got my bellows from this guy!

60

Thanks, guys!!
