I’m working on a new shell based on Stefan drawings and all the information of the proton pack in Sony Lobby.

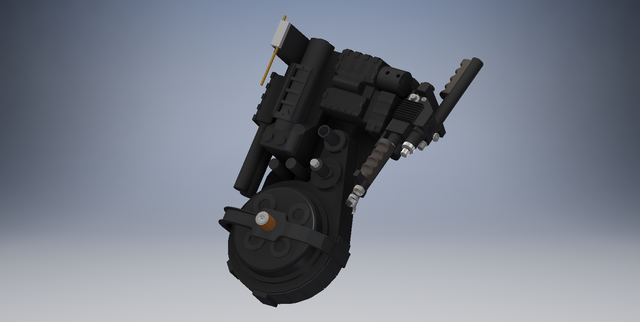

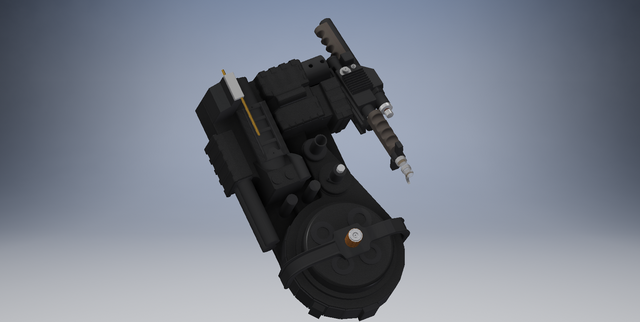

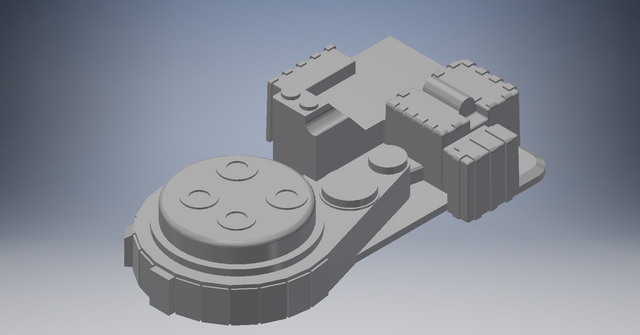

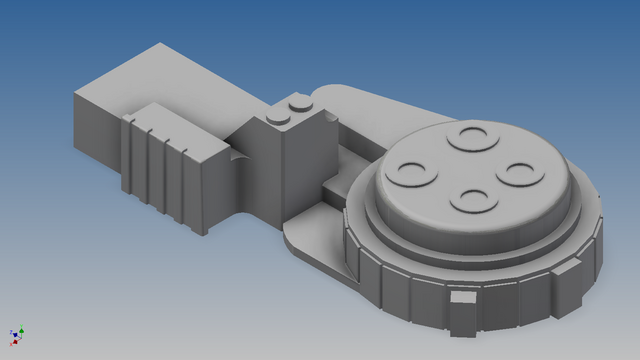

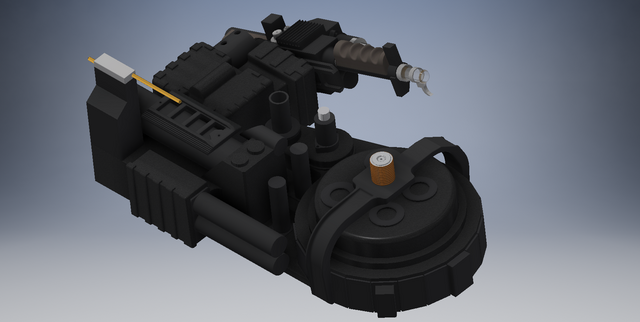

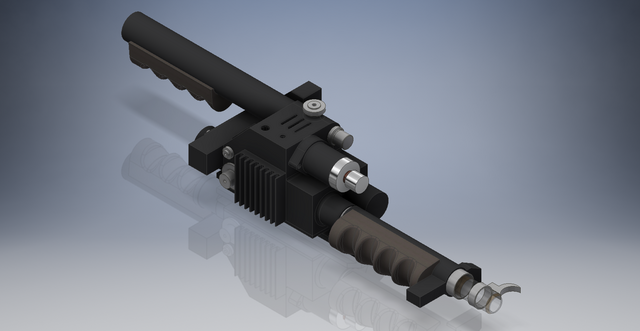

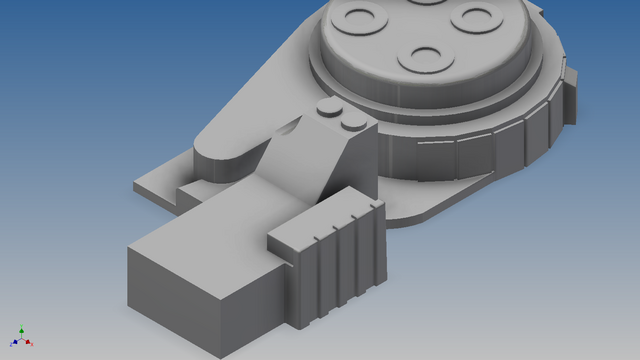

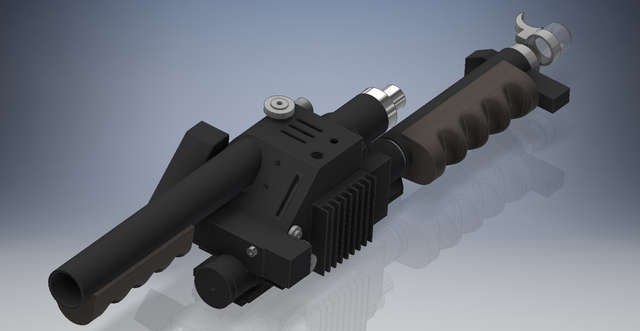

Here some preview:
I’ll insert some information like the dimensions of the rings of the cyclotron (the upeer rings are bigger than the lower…) and the corret dimensions of the center cover.
If u have some more information about other changes between real pack anche the stefan otto’s drawing please tell me.
After the shell has done I can give copy of the drawings to the community
I’ll have to refresh myself with the photos of the Super Hero Pack, but I believe the 45-degree chamfer on the bottom left corner of the doesn’t actually go all the way down, but gradually terminates.
Yup, all of the references that I have seen have this line fading out to square about an inch or so above the base. However this is nearly unnoticeable on a built pack being black and obscured by the booster tube, ribbon and support bracket.
Your drawing is looking pretty good - you might have a look at some of the photos that I took of the Venkman hero pack a few years ago for additional reference.
