Checking size on Sean's ghost trap print.

Equipment Ghost Traps
1

Hi all,

I’m currently printing out my first ghost trap. It’s Sean Charlesworth’s design.

I printed my first set of parts, and I would swear the scale is off. I did print the 1" cube as a check, and it is exactly an inch, suggesting everything is in-scale. I thought a ghost trap was suppose to be about 14" long.

Could someone check the size for me on the part named “bottom_plate_v3” before I continue printing parts. The part I printed has a length of 8 3/4" or 22.3 mm.

Thank you very much for the confirmation!!

2

Unless I’m mistaken, Sean’s Trap is based on the GB2 design, which was quite a bit smaller than the GB1 models. The actors wanted smaller props, as the heavier GB1 traps were difficult to hoist around.

3

Ohh, that’s good to know!

4

That’s correct, he said he likes the size of the GB2 trap but wanted to include some of the GB1 trap features, so it’s effectively a hybrid trap.

Here’s his RPF thread about it: 3D Printed Ghostbusters Ghost Trap - Files Available (image heavy) | RPF Costume and Prop Maker Community

As a belt hanger it’s ideal, it’s strong but lightweight (like a stunt trap). The upgrade parts he offers on his Etsy store are worth a look too, especially the acrylic and aluminium side plates.

If you ever need a trap with an ejectable cartridge, check out the TacoBelli files for sale on Etsy, these are larger but include options for GB1, GB2, and Afterlife.

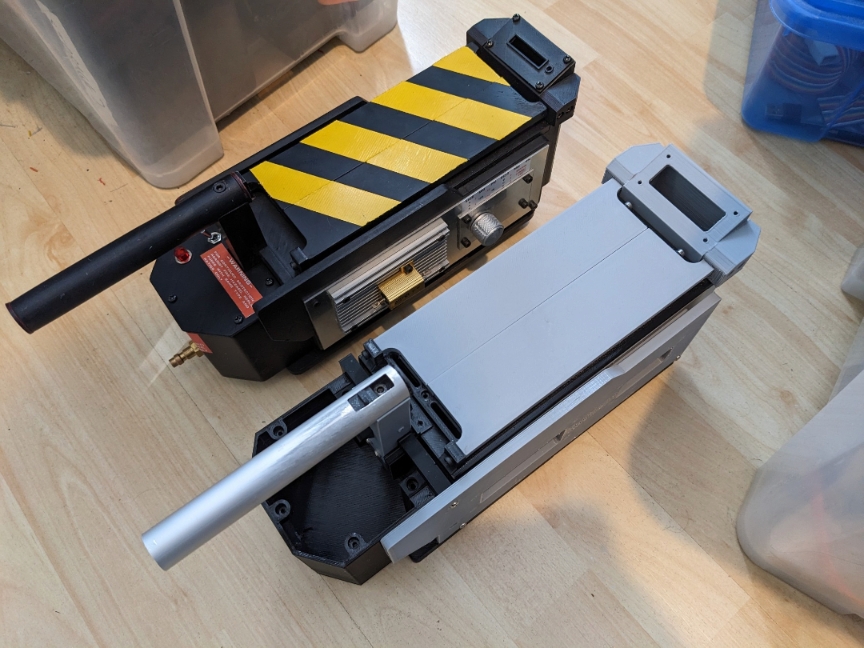

Here’s a size comparison between the Sean Charlesworth trap and my in-progress TacoBelli trap:

image864×648 387 KB

Personally I like both for different reasons. My TacoBelli trap is now far too heavy to hang from my belt, but it’s perfect to sit on the table at events. With the opening doors, lights and sounds, and the ejecting cartridge it’s great for demonstrations too. When I eventually build a containment unit this is the one I’ll use with it.

5

Excellent information! Thanks Prodestrian
