Another, another last run of the kits is no longer available. 8-(
Build Instructions PDF file: https://www.ghostlab42.com/img/gizmo/Gizmo2_Build_Instructions_v1p3.pdf
I also have a Sanyo Replica version of the Gizmo kit: https://www.gbfans.com/forum/viewtopic.php?f=31&t=30986
Seller Info:
- Doug Keithley
Boise, ID USA
Doug @ GhostLab42 . com
I really like the GIzmo board that recreates the look of the Sanyo circuitboard and now I want something similar for the black version that may never have been made with actual components.

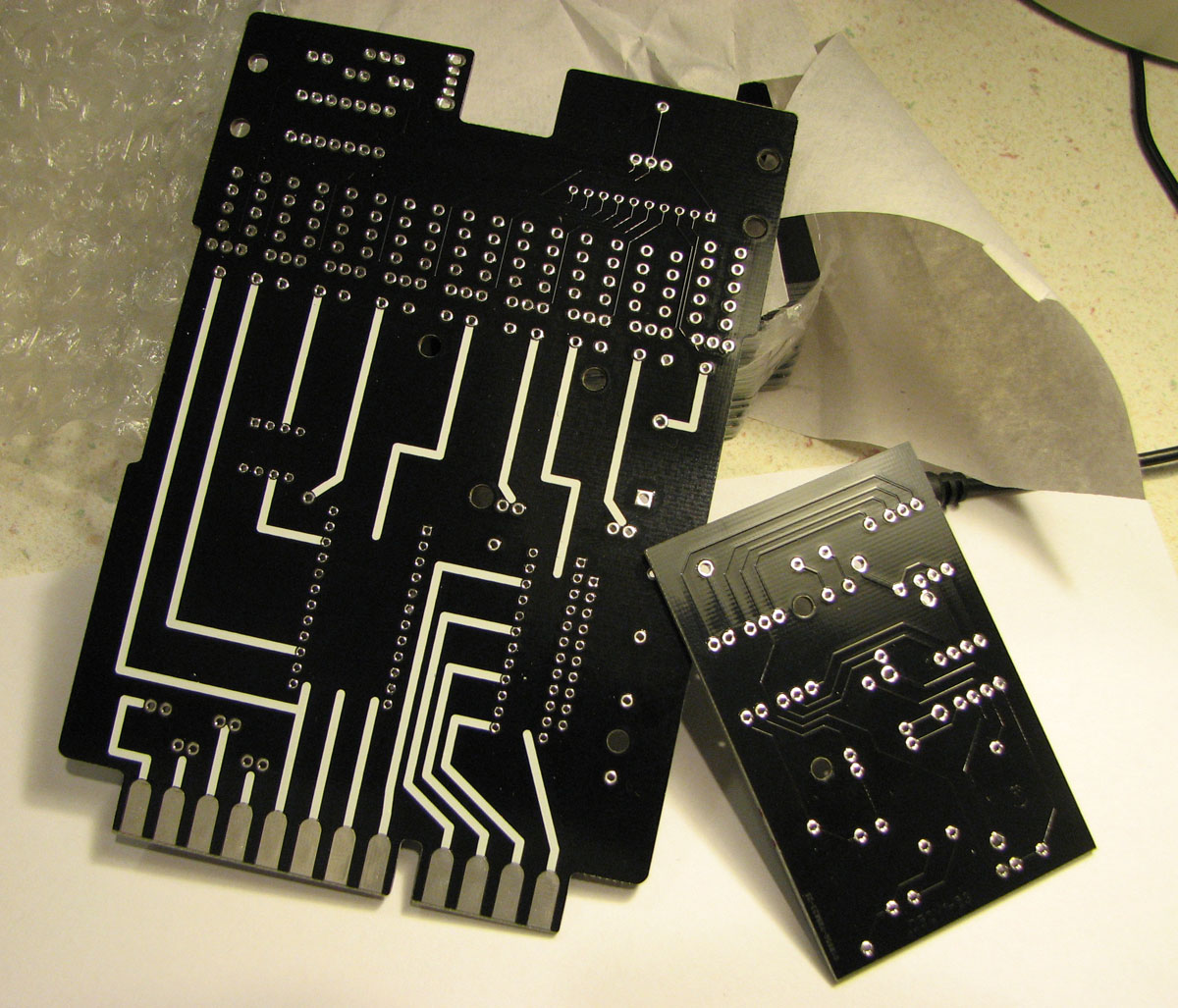

The first circuit boards have arrived (based on the Sanyo board, but a little shorter):

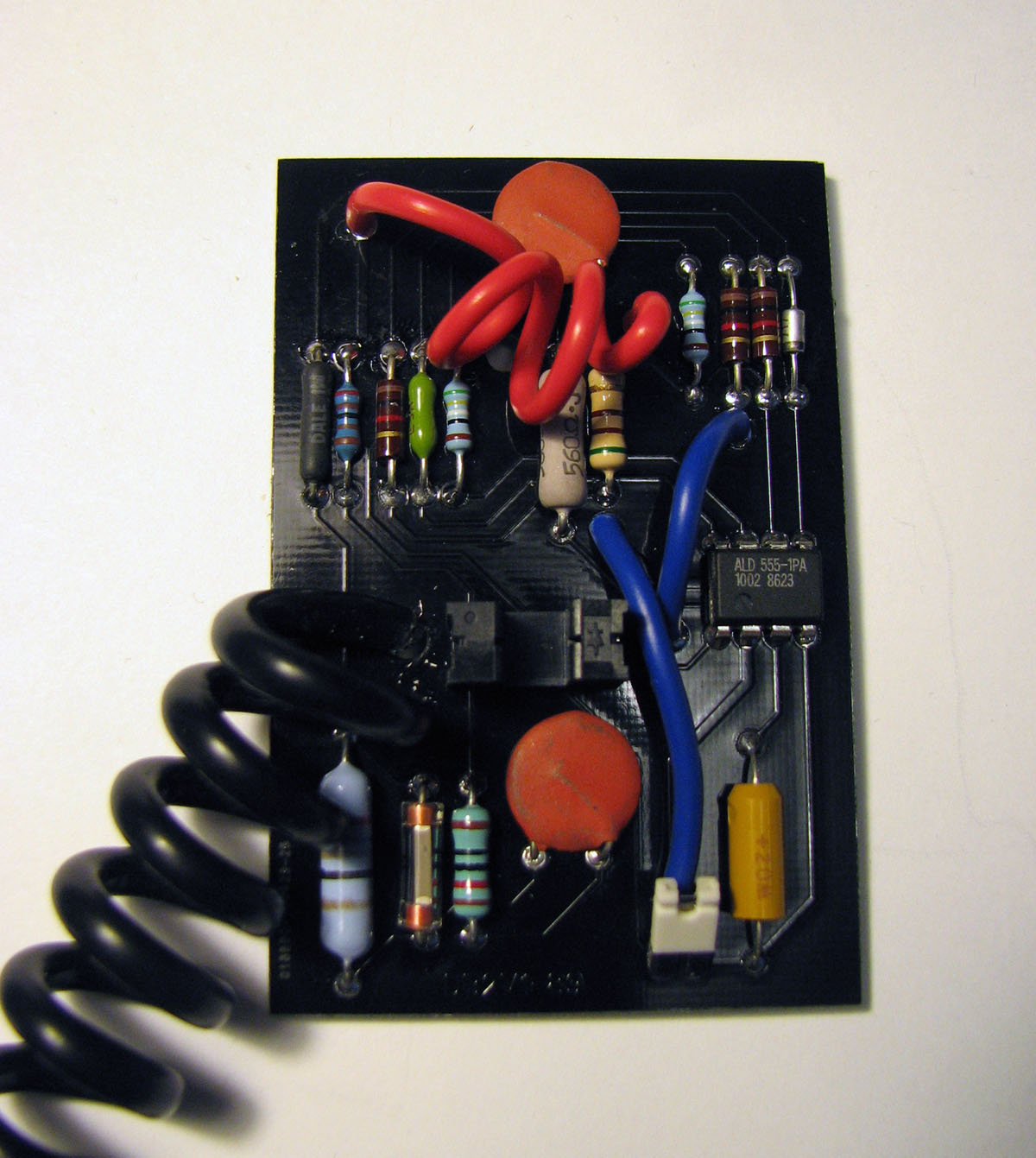

I built up a daughterboard, and have found some lighter blue wire that is on order to better match the reference photos of the prop. You could paint the parts for even better matching of the prop, but it looks great with just the actual part colors:
Here is my first completed gizmo 2 set. I found some vintage black rectangular parts with what looks like a '84 date code printed on it, so that is the new center of board part.

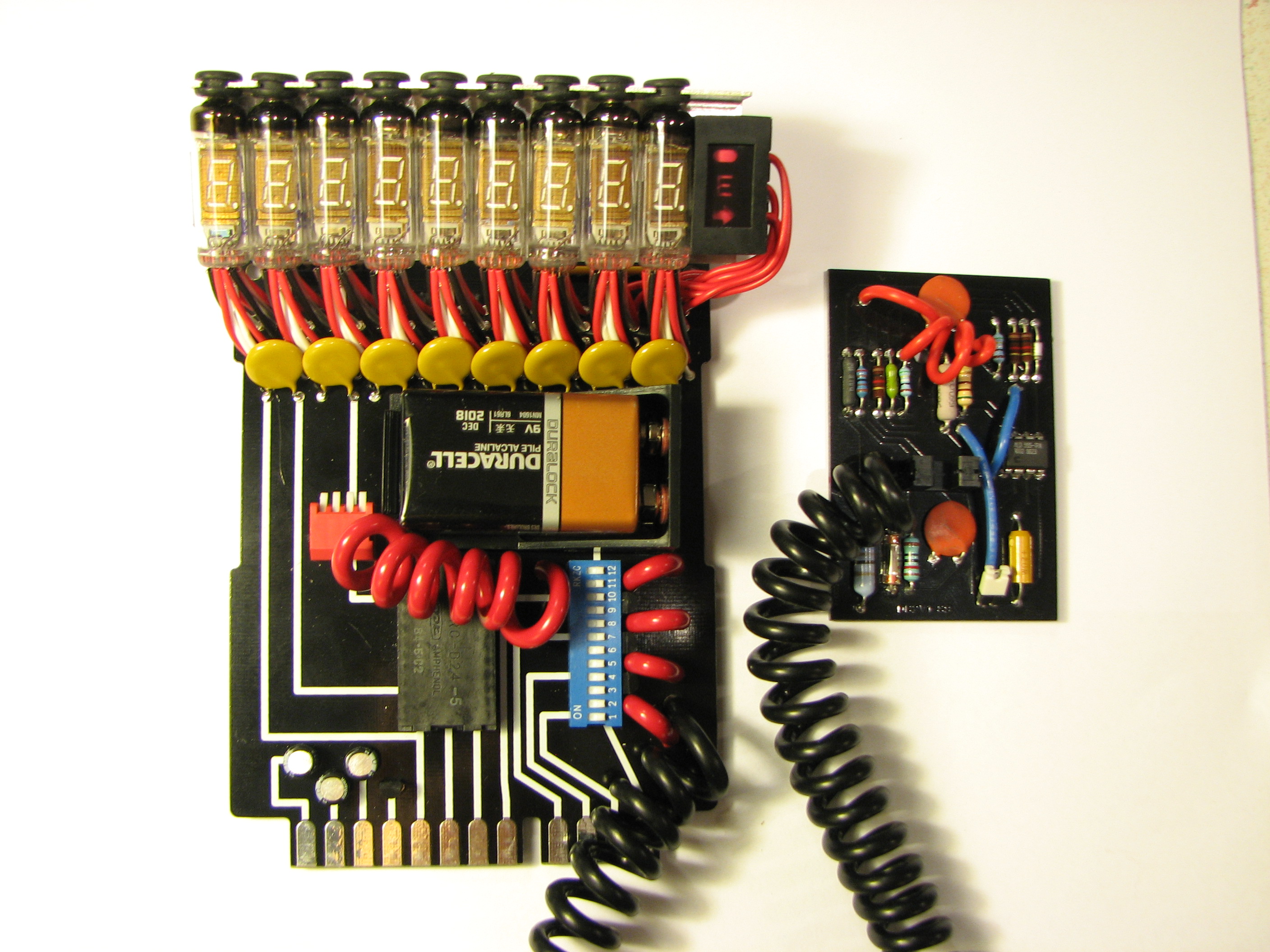

And with the battery and holder attached:
Here is a video of the LED lighting in operation:
https://www.youtube.com/watch?v=Bi1p22__dA0
Some additional comments:
- Mounting screws are black oxide (no shiny metal!)
The aluminum display stand with legs is designed to hold 9 tubes and the error box. They arrived and look great!
The electronics on the top of the board will drive 10 LEDs - one for each tube and one for the error box.
A 9V battery holder will be mounted to the board, so no dangling wires.
Real display tubes instead of ribbon cable in plastic tubes - different tubes than the ones used in my other Gizmo kit. Also 9 instead of 8.
The cable between the two is a round cable and is securely attached from behind.
Pricing:
- Full kit of all all parts except for a leather Gizmo holster: $139
Shipping charges:
- $13.00 for a full set (with Daughterboard) within the USA
International Shipping - $23 to Canada and $30 to most other countries please include a country, city and zip code for an accurate shipping cost and an email address so I can send you a PayPal invoice.
