This is my first Proton Pack and Ghost trap build.
I made a Mk7 ironman suit powered by arduino before this. So I decided to add some stark tech to my ghost busting gear.
Check out the Ironmanofmaine.weebly.com
And on Facebook at “ironmanofmaine”
Both my pack and trap will each have a Arc reactor, yeah you must have figured right?
I’ll start with my progress of my trap since I’m still waiting for my pack parts to all come in.
Mostly all the trap is 3D printed.
My pack will consist of a resin Hero shell, PVC tubes and some aluminum parts.
The traps electronics will include a MP3 player with Ghostbuster tracks(of course), an amplified speaker under its base plate.
And 2 adafruit led matrices and mic to act as a visual light show. Those two matrices will be on either side of the battery compartment on the back.
I’ll also add the regular bargraph led and back red led with power switch.
The knobs on either side of the trap will control changing the track and volume.
So a picture is worth a thousand words so here are some:

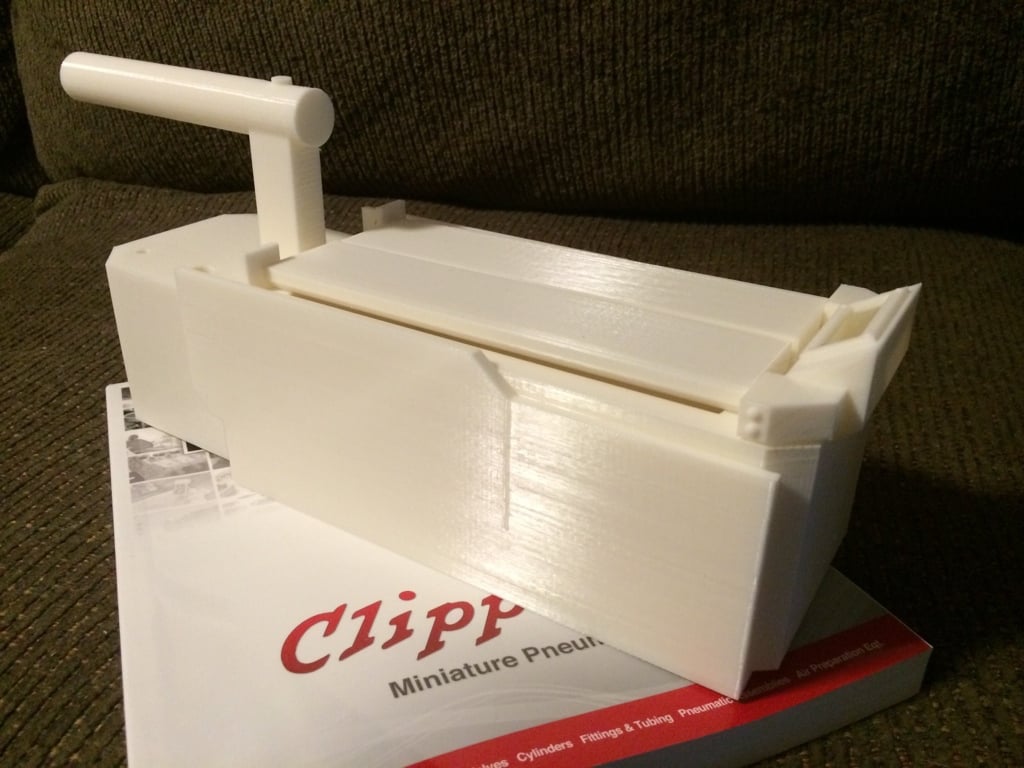

Cartridge printed
Led bar graph holder printed
Doors
Outside shell
Handle and battery box
Base plate with wheels and knobs
The wheels are roller skate bearings
Plates cut from sheet metal and wooden dowels that I cut.
The battery box will have hinges and magnets to open and shut it to access electronics later.
And a micro Arc Reactor for the front plate.
With will light up with a 5 led array.
Here’s a video of the Led Matrices and bar graphs jamming out.
