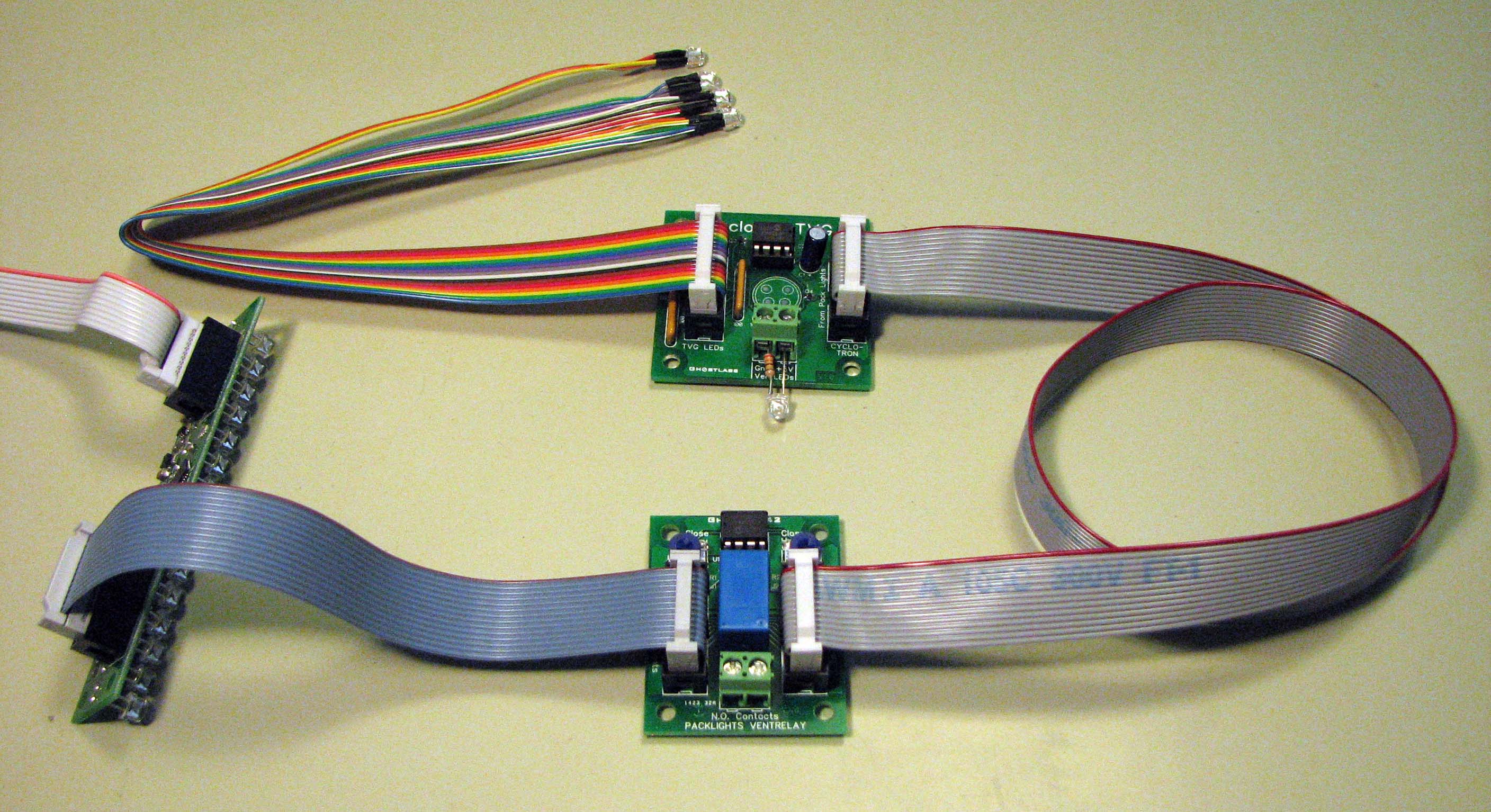

The VentRelay is an add-on board for the GBFans’ Power Cell and Cyclotron Light Kit (Pack: Power Cell and Cyclotron Light Kit - Electronics Kits - GBFans.com Shop) that adds an 8 Amp relay with easily adjustable timing that only closes during pack venting operations that are indicated by the white LED flashes.
The vent relay board allows very simple connections and control of an e-cig smoke kit, like Jims: GBFans.com
The board works with the standard LED cable that comes with the Light kit and also with the CyclotronTVG color changing Light kit and does not affect any of the operations that these parts perform. CyclotronTVG link: GBFans.com

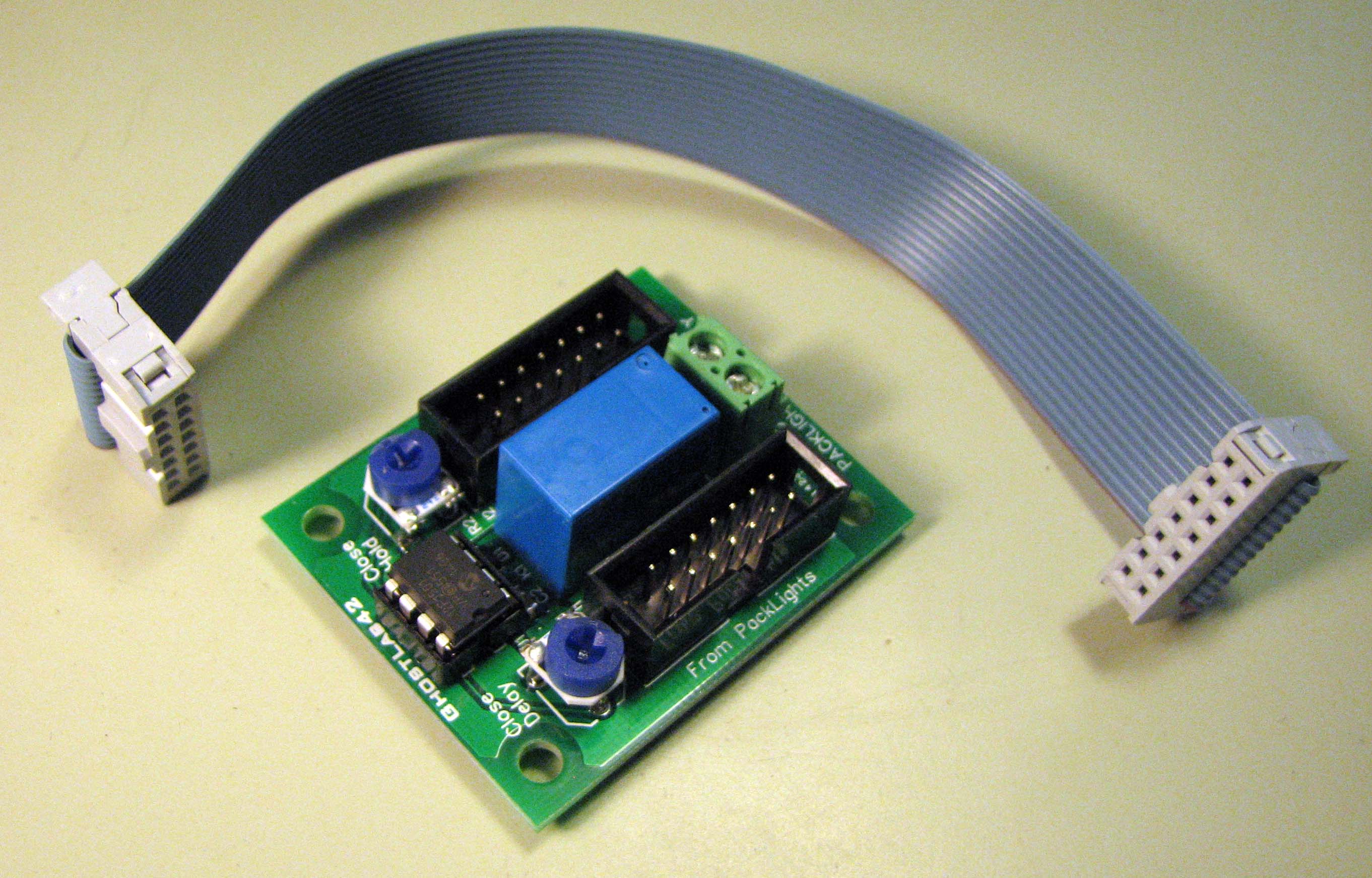

The Spirit Light version of the Vent Relay board is controlled and powered by the Spirit Lights 3 conductor vent light cable (included with the Spirit Lights kit):
Instructions link:

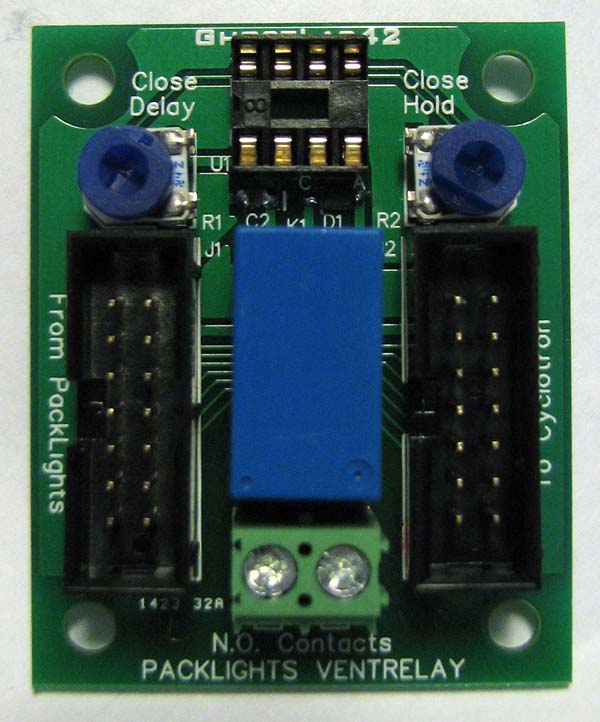

Just plug in and make timing adjustments with the two potentiometers:
- Close Delay: A delay from when the venting operation starts, from 0 to 2.5 seconds.
This can be used to skip the short “Dry Vent” operation by setting to about 0.2 seconds
Close Hold: A maximum amount of time the relay will be closed, from 0 to 5 Seconds, will end when venting ends
The fully counterclockwise position sets the delay to 0 seconds and clockwise rotation increases the desired time.
Simple install and adjustment:

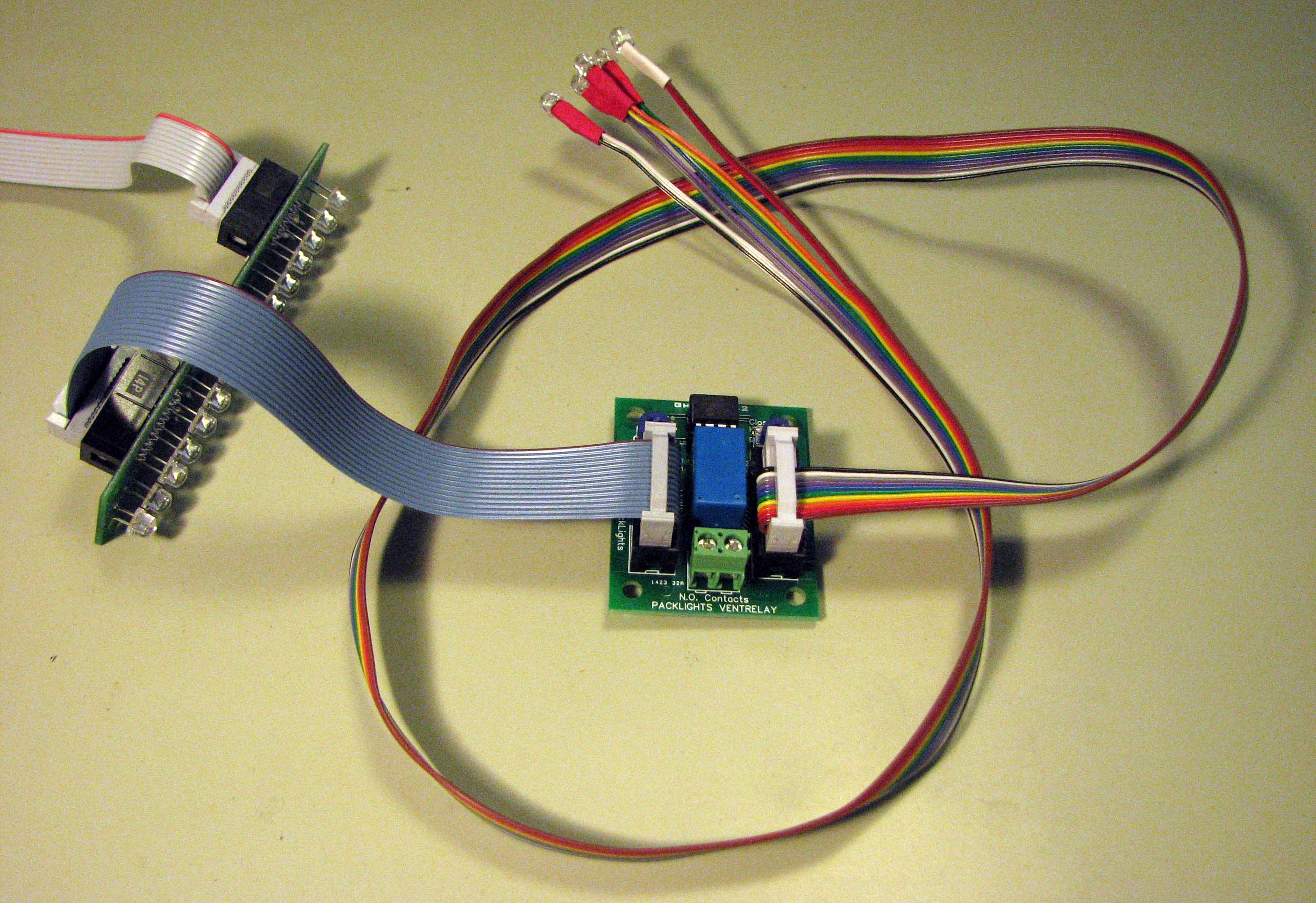

Connected with the standard LEDs:

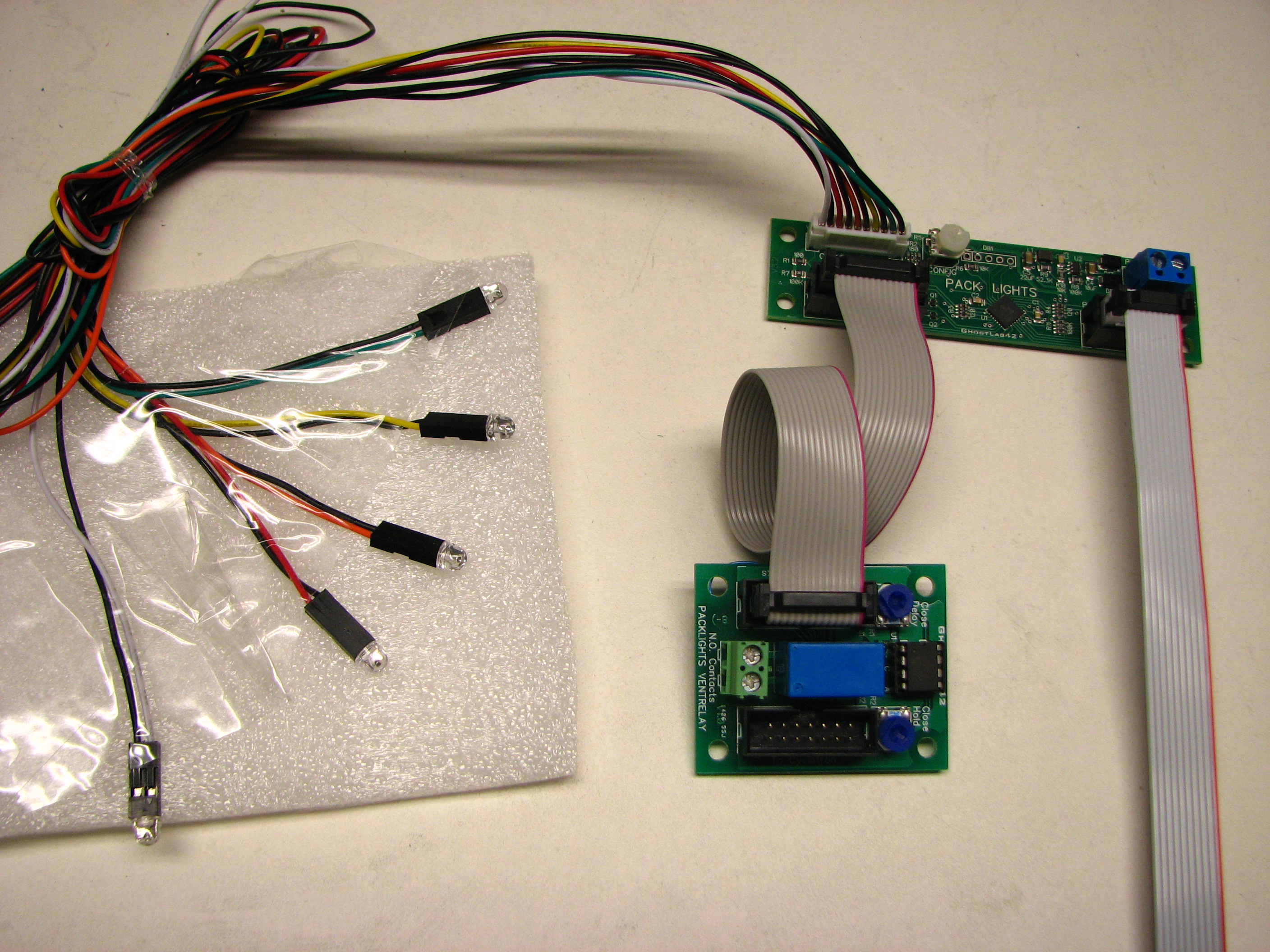

Connected with a CyclotronTVG kit:
You can also daisy chain several in a row for multiple devices that need different timing settings!

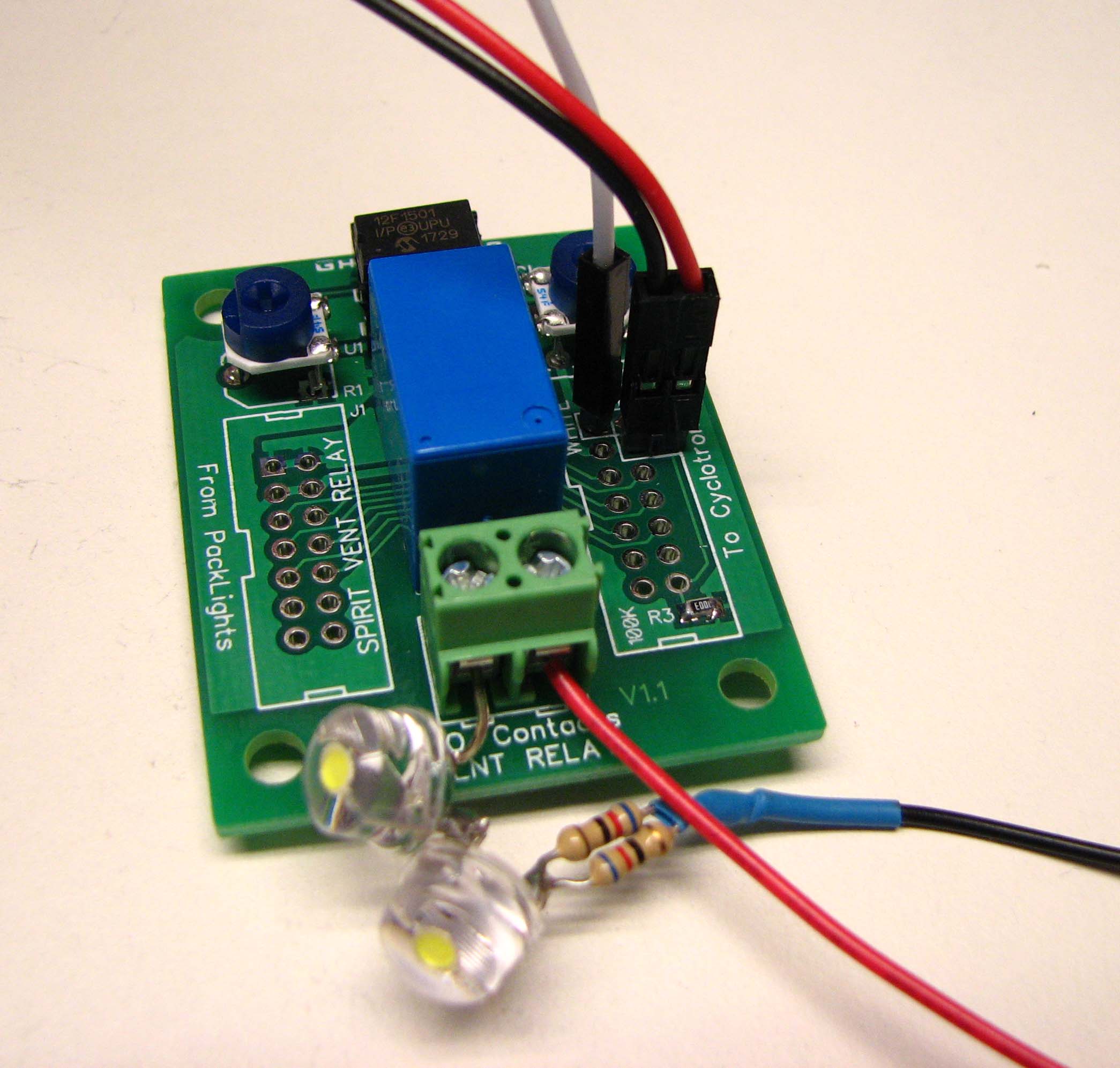

The Normally Open (N.O.) contacts support up to 8 Amps of current and are completely isolated from the controlling circuitry and Pack Lights power so can be easily hooked up to whatever you want. There is no polarity associated with the two screw terminals so you can connect either side to a battery positive lead and the other screw terminal will connect to what you want powered by the battery during a venting operation. Basically use this instead of a toggle switch when wiring up something to make the venting amazing on your pack.
When power is removed from the Light kit or your pack is not venting, the relay will be open.

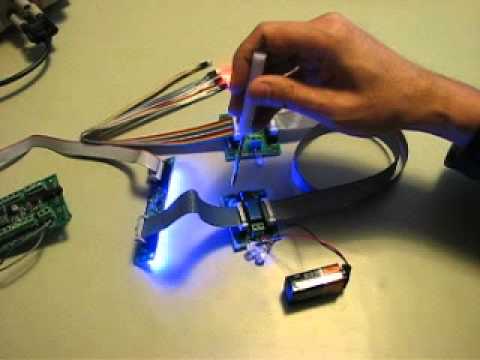

Here is a video (with permission) from one of the Ghostheads that is using a Vent Relay board in his pack (I haven’t gotten my pack venting steam yet):
https://www.facebook.com/photo.php?v=301878923323516
Pricing:
- One assembled and tested VentRelay board with 6" connection ribbon cable: $19
One assembled and tested Spirit VentRelay board with connection cable: $19.
Shipping charges:
- $5 for one within the USA
International Shipping - PM me with what you are interested in and I will give you a quote.
I use USPS First Class International package and it usually adds about $7.
