Seller info:
James Fincher
Dublin. GA USA
The kit consists of all the parts needed to install the smoke effect seen in sephiroth and jimfin videos using the new relay
board from spongeface for the gbfans sound and light kit or with an included arduino style relay for Mighty controllers
Have not tested other sound and light kits for compatibility but have used system with a manual toggle switch to good effect
Please send PM if interested with email for paypal invoice and shipping address for accurate postage and select options below to figure out details to match your system.
The standard kit for an nfilter vent will consist options 1, 2 and 5 , tested for $105.00 + $7.50 US shipping for gbfans boards
advise if you need manual switching on untested controllers or have info on integrating with other boards
option 3 is required for Mighty controllers (and gbfans if ordering nfilter and tvg vent to be used together) for additional $35
option 2 may be selected for use as a TVgame style vent nozzle for $55.00 + shipping ( tested with 12" of 1/4" tubing)
2A add $25 for my nozzle added to option 2 see page 6 of E-cig Venting Tutorial (now 8 sided instead of 6)
Be advised that if ordering an Nfilter and TVG nozzle for use with a gbfans system, the combined current load of 2 ecigs requires option3 (battery) as well
The ecigs draw upwards of 2 amps each and will shut the gbfans sound board down upon triggering otherwise.
options 4 (kill switch) available for additional $5.00
-
12VFan/12V strobe installed in PVC coupling designed to slide into an UNOBSTRUCTED nfilter with drilled holes and screen as depicted in the videos
-
5/6V UBEC voltage regulator, 6V air pump, modified ecig cartomizer
2A. my design of vent nozzle
-
A 11.1V 2200mAh rechargeable battery with output and charging connectors
-
optional togglel kill switch, recommended but not required for normal operation
-
optional manual pushbutton, strongly recommended but not required for normal with gbfans or Mighty operation
edited, now part of standard kit as I think it it is important for testing/purging ecig
-
extra 30ml bottle of fluid $10
-
extra 177ml/6oz of fluid $25
Will also include small 10ml plastic vial of fluid mix I use, enough to fill cartridge appx 5 times. Instructions how to mix your own and how to refill the clearomizer are covered in detail in the tutorial under the proton pack thread.

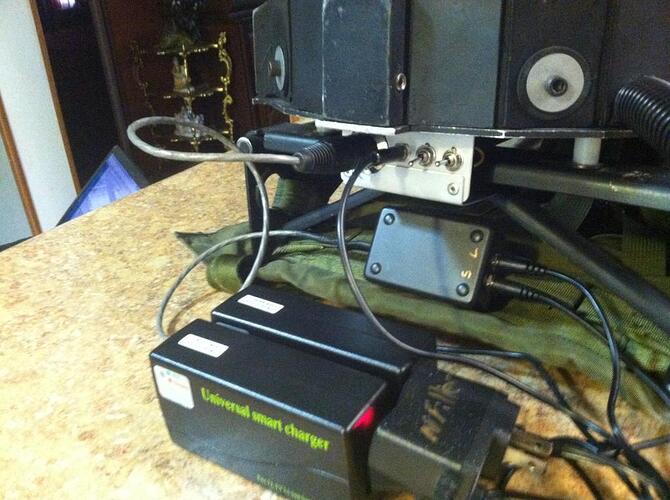

Below is an example of where we placed the charging connector and battery switch on my son’s pack with a Mighty controller
If your pack doesn’t have an open space similar to the pack below leading into the nfilter, the PVC coupling will not just
slide into place. this is the 1st one we made, the fan is mounted different allowing the attachment of a grill
