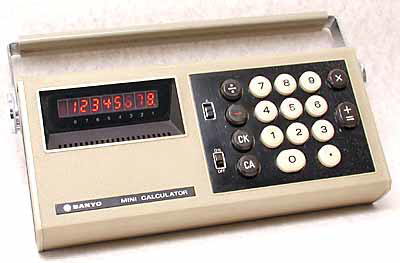

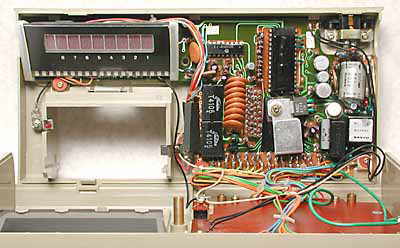

I first did my research and noticed that almost all Sanyo ICC series calculators share the same parts… so what did I do? I purchased a Sanyo ICC-811 for a fraction of the cost for the real Sanyo ICC-808D, which sold on ebay recently for over $500, and completely gutted it.

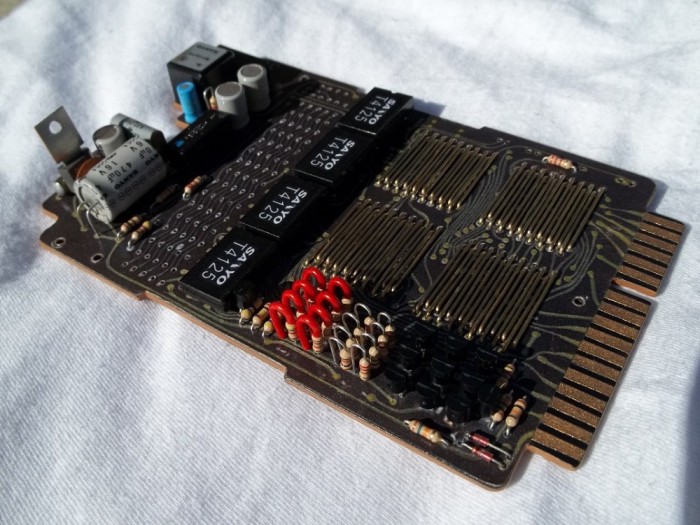

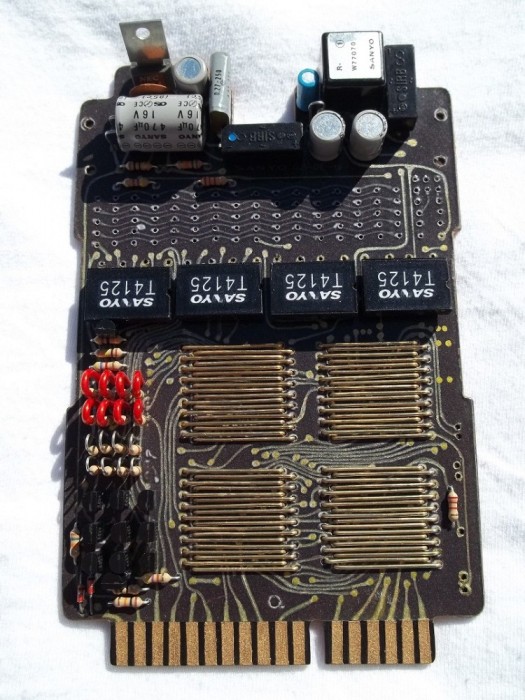

After acquiring the various other parts… styrene, paperclips, various electronic components, angled 3/4" aluminum, rubber grommets, IV-9 nixie tubes, wire insulation, spray paint, and printing out the PDF circuit board file on sticker paper, I began the construction. Over the two weeks or so while having to go to work etc. I ended up at this point.

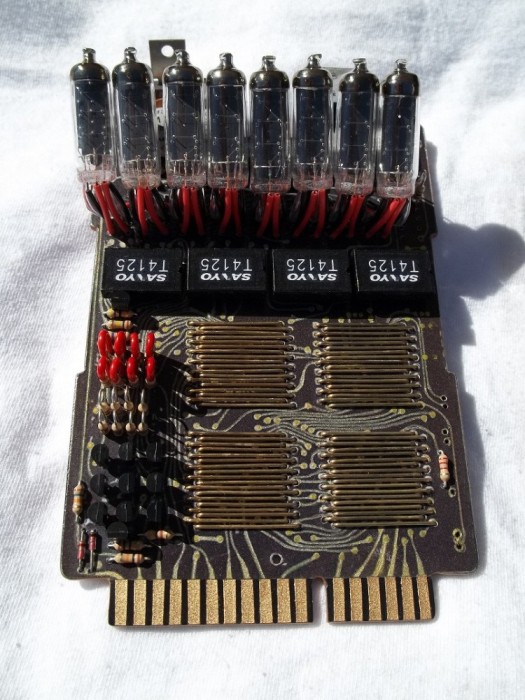

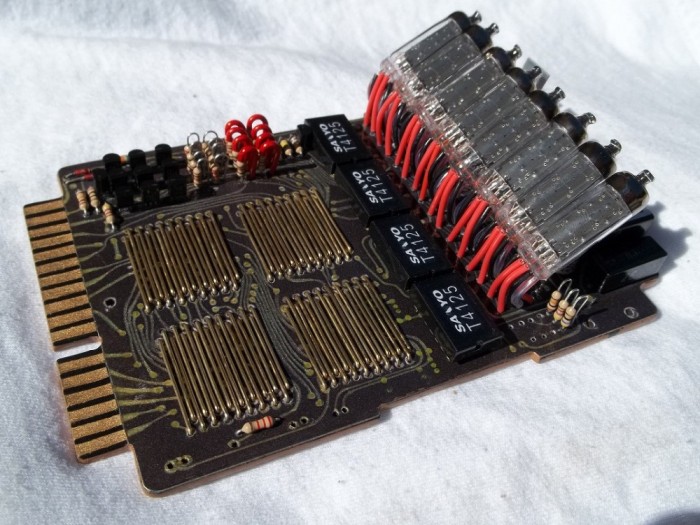

A few more days of work and stripping what seemed to be miles of wire insulation, I added the IV-9 nixie tubes.

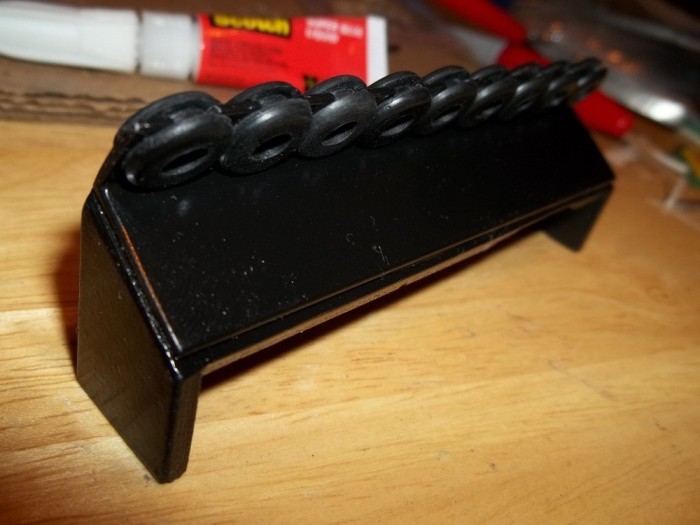

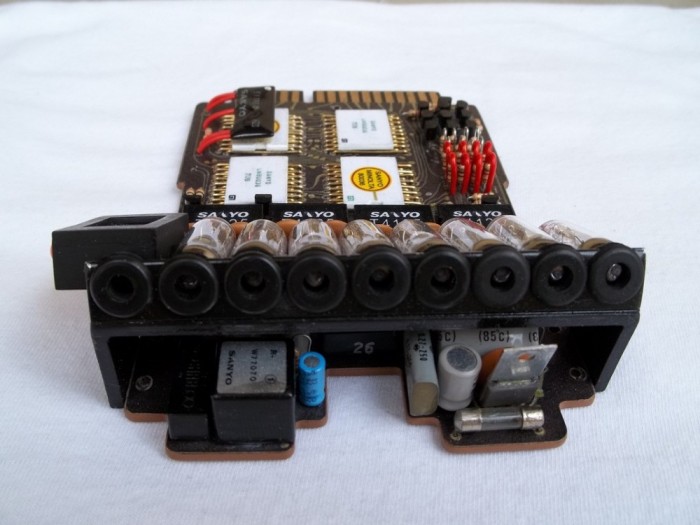

I had originally purchased the resin kit from Nick-a-tron, and only ended up using the his nixie shelf. I then marked out the spaces for the nixies, drilled and cut the aluminum, painted and then added the rubber grommets for more accuracy to the real Sanyo ICC-808D.

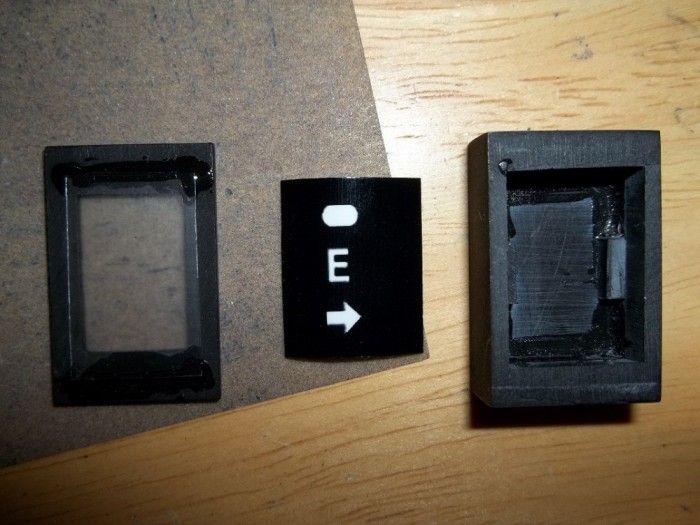

The next step was making the error box.

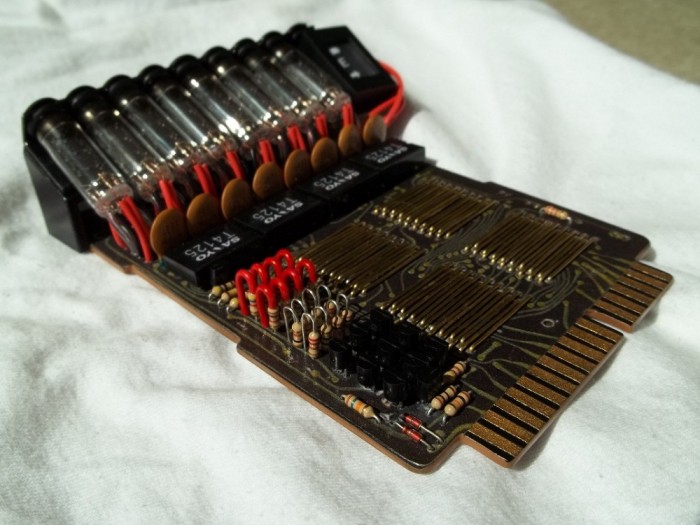

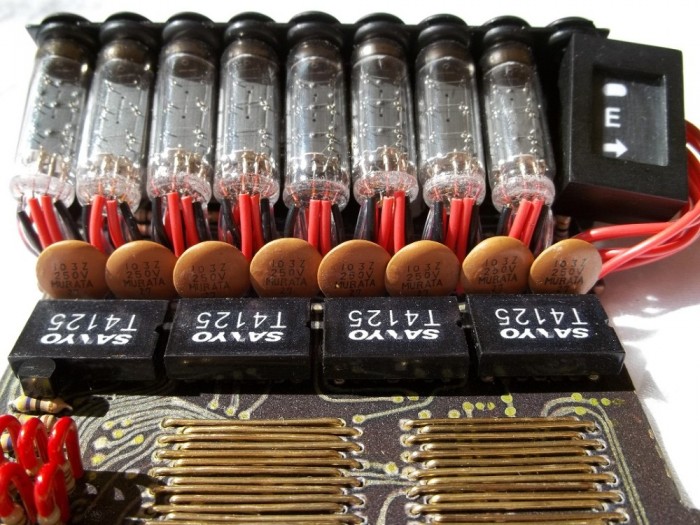

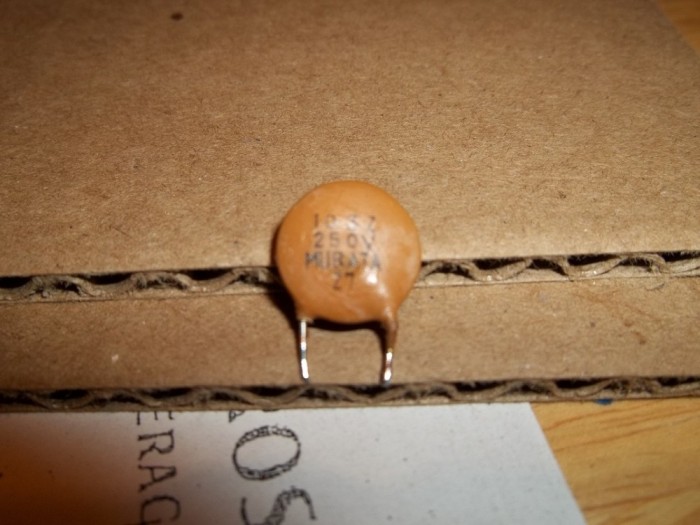

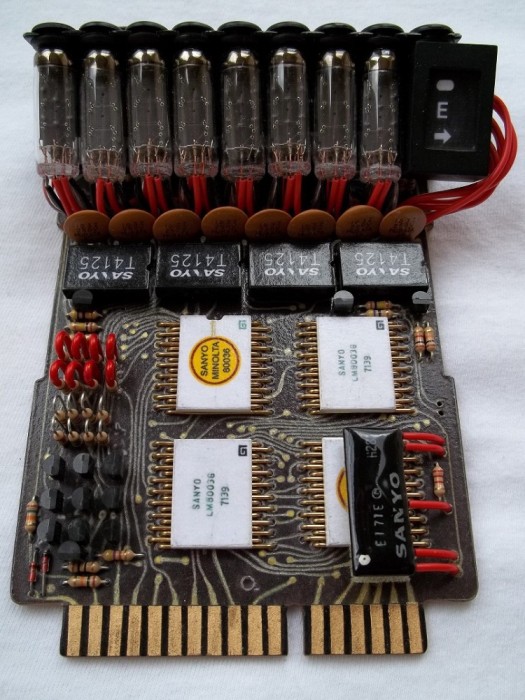

After a few more days, I added the wire to the error box and installed the nixie shelf. I also added the accurate Murata disc capacitors and then it really started to come together.

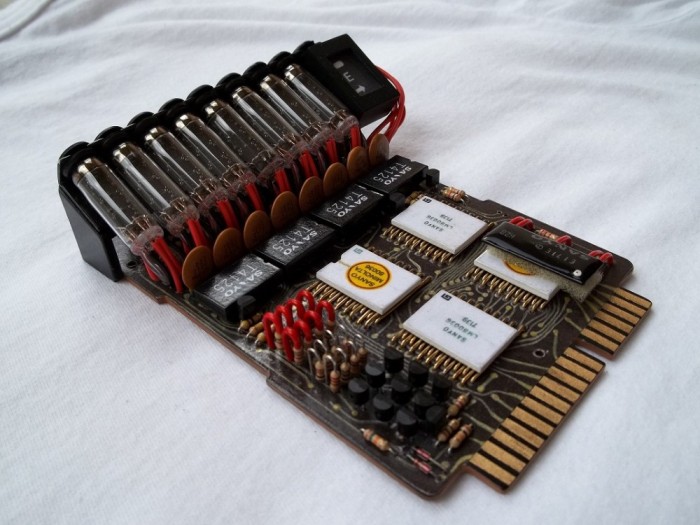

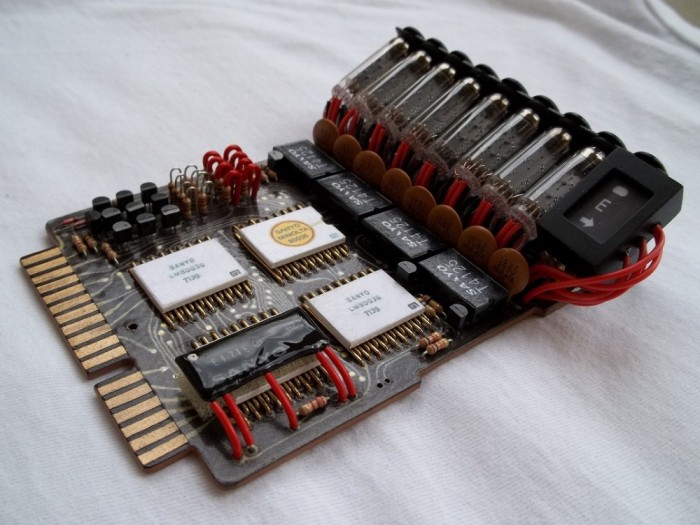

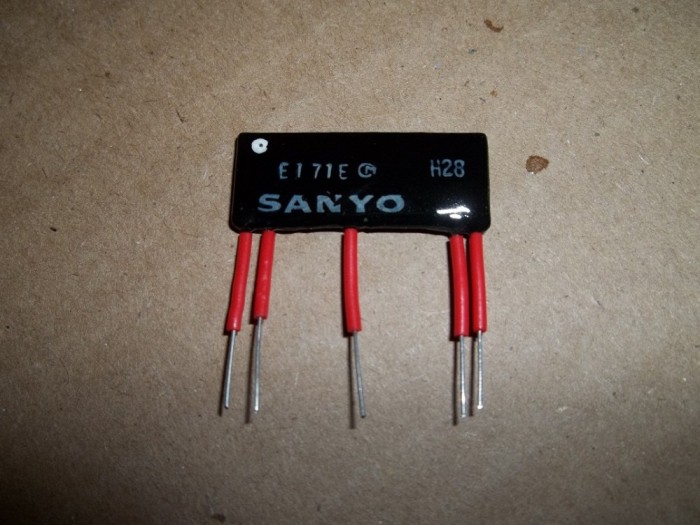

After I modified the large capacitor and made the white chips, I reached the home stretch.

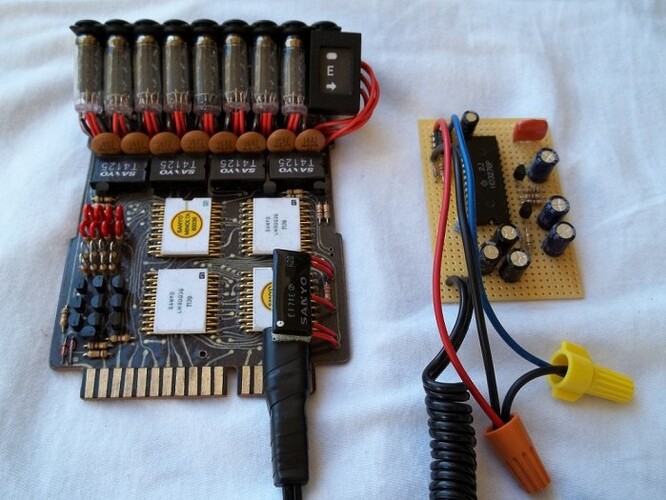

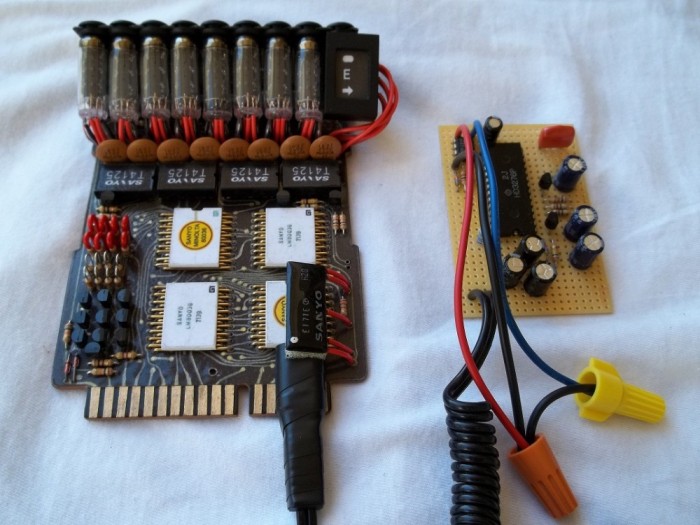

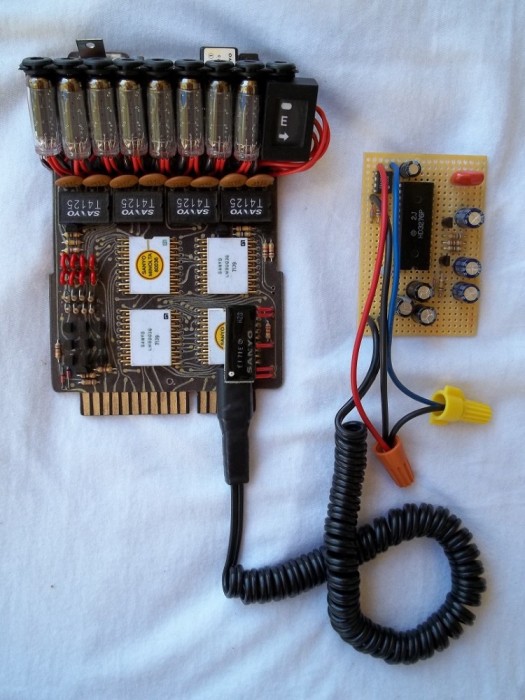

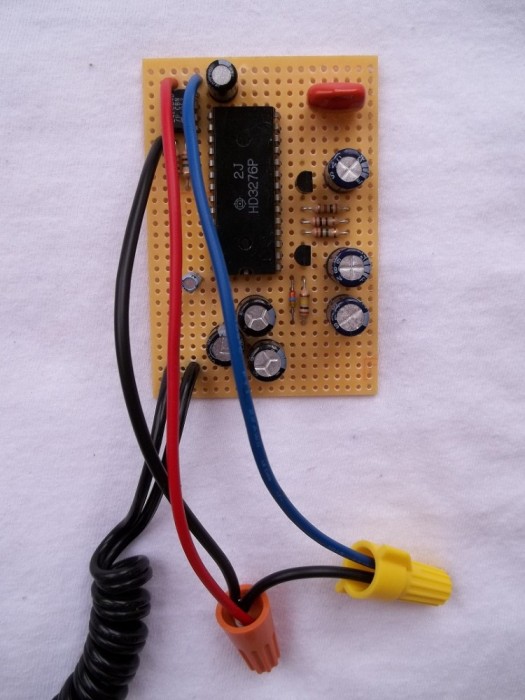

Nearly a month later, and completely burned out, I made the daughter board. I then attached the accurate coiled cord, which came from an electric shaver and declared this nearly 100% screen accurate GB1 Belt Gizmo prop done… “It’s Miller time!”
Hope you enjoyed this and I value your opinions, so please let me know what you think?
